Toyota COASTER — LPG CARBURETOR

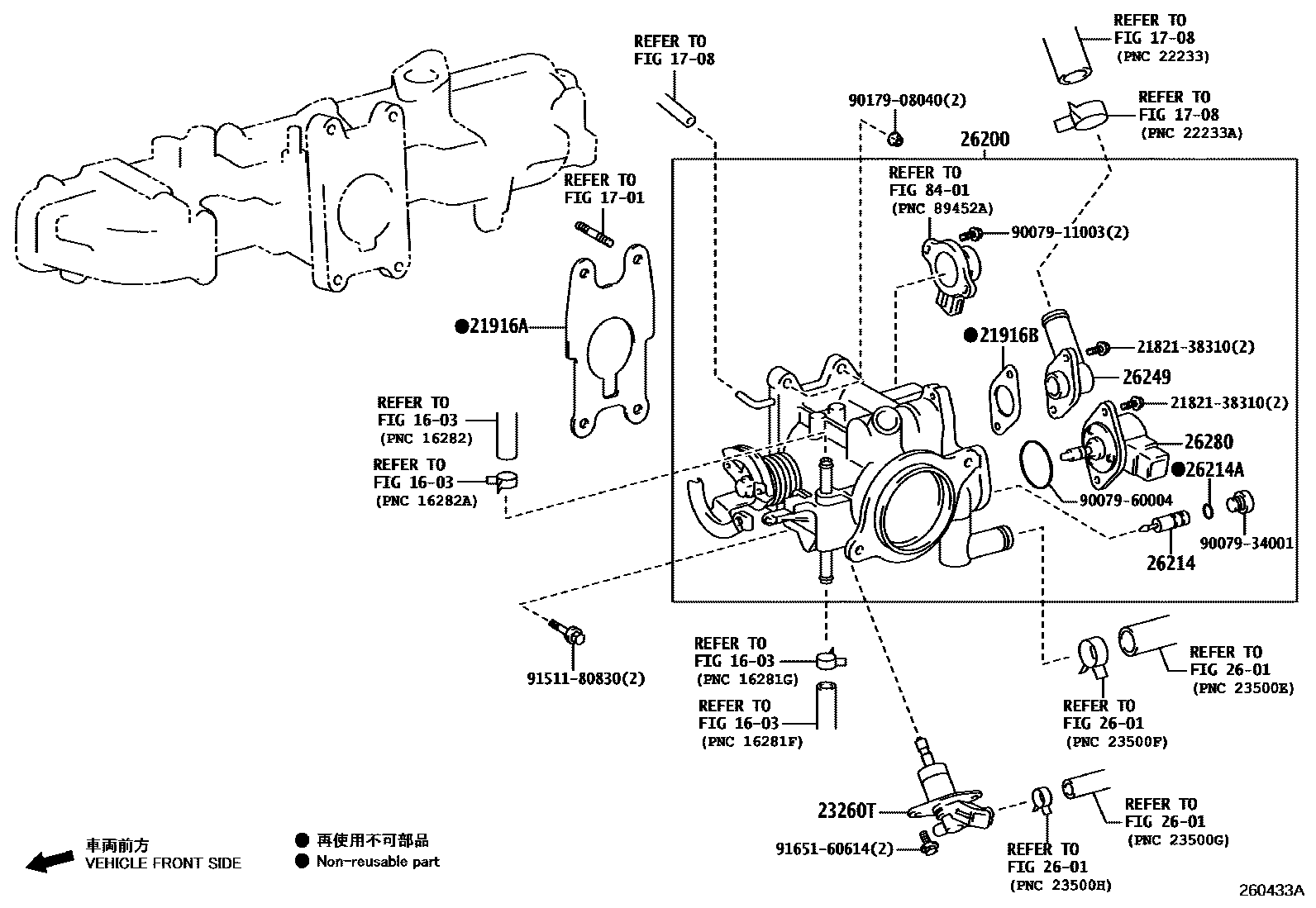

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

21916AGASKET, CARBURETOR, NO.2

main21916-48010i201701-202012

21916BGASKET, LPG FUEL HOSE UNION

main21916-73010i201701-202012

23260TINJECTOR ASSY, LPG

main23260-48010i201701-202012

2601LPG(CARBURETOR) FUEL PIPE

→ Go to FIG 26-01

26200CARBURETOR ASSY, LPG

main26200-48012i201701-202012

26214SCREW, POWER ADJUST

main26214-73130i201701-202012

26214ARING, O(FOR POWER ADJUST)

main90079-60005i201701-202012

26249UNION, FUEL HOSE(FOR LPG)

main26249-48010i201701-202012

26280MOTOR ASSY, AIR FUEL RATIO CONTROL

main26280-48030i201701-202012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007911003

main90079-11003

9007934001

main90079-34001

9007960004

main90079-60004

9017908040

main90179-08040

9151180830

main91511-80830

9165160614

main91651-60614

20 parts on this diagram · 1 diagram in section

LPG CARBURETOR for Toyota COASTER

This section contains 20 genuine Toyota parts for the LPG CARBURETOR system of the Toyota COASTER. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, VACUUM PIPING, GASKET, CARBURETOR, NO.2, GASKET, LPG FUEL HOSE UNION.
