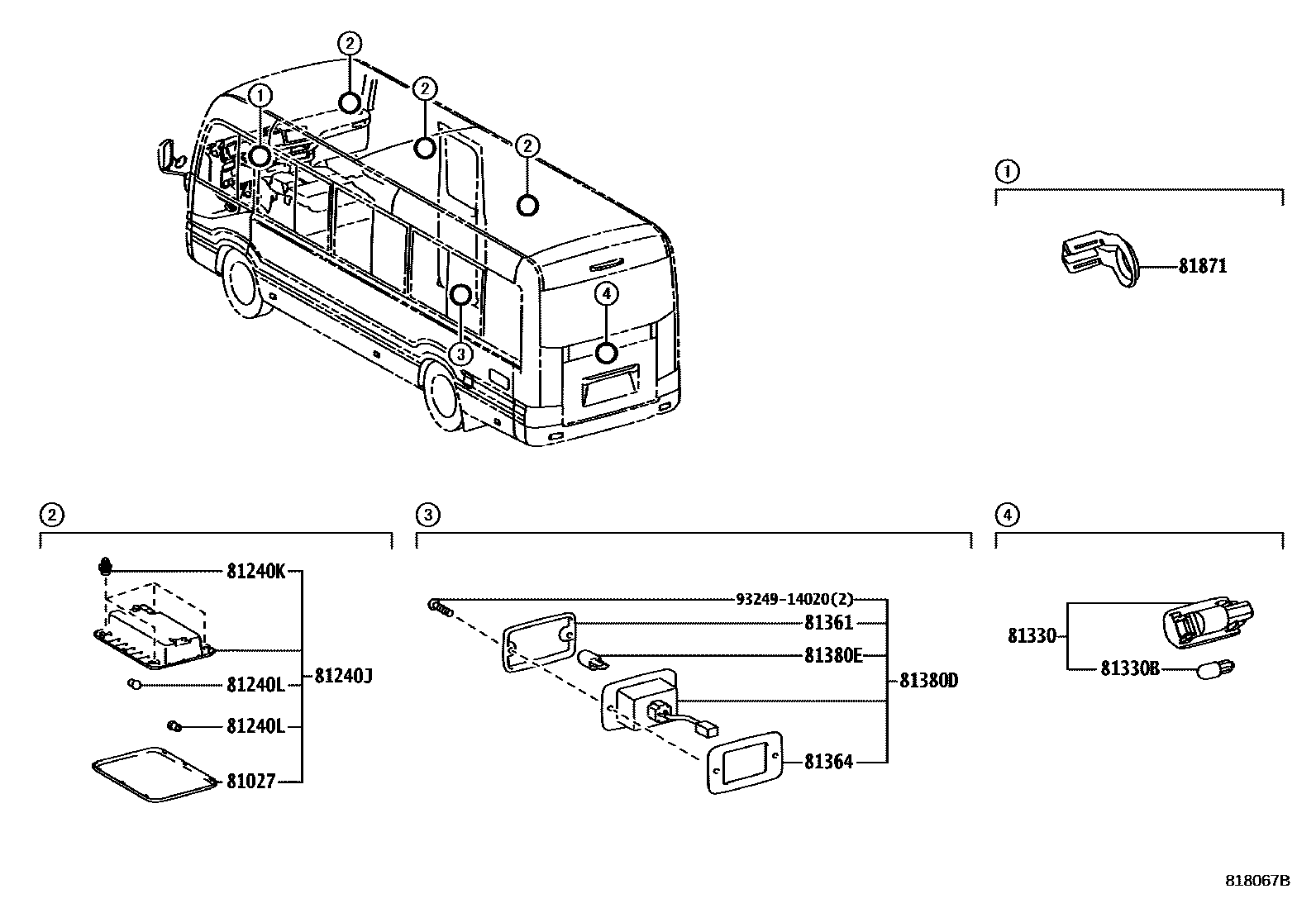

Toyota COASTER — INTERIOR LAMP
81027LENS, ROOM LAMP
81240JLAMP ASSY, ROOM
81240KCLIP, ROOM LAMP
81240LBULB, ROOM LAMP
12V 10W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
SAUDIARABIA SPEC&LUGGAGE & BACK DOOR-*DSBD(EMERGENCY & IGNITION ON UNLOCK)
LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)
LUGGAGE & BACK DOOR-*DSBD
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W,LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)
12V 5W,LUGGAGE & BACK DOOR-*DSBD
main90981-12010iXZB70..SA;XZB70..LHD..DX;HZB70..30S..WOC;HZB70..(23S,30S)..WC..GEN;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60..(20S,22S)..(6F,6FC)..GCC;GD202201
12V 5W,SAUDIARABIA SPEC&LUGGAGE & BACK DOOR-*DSBD(EMERGENCY & IGNITION ON UNLOCK)
81361LENS, STEP LAMP
81364GASKET, STEP LAMP
81380EBULB (FOR STEP LAMP)
81871LENS, KEY ILLUMINATION
STEERING COLUMN-WITH(TILT & TELESCOPIC)
STEERING COLUMN-WITH(TILT & TELESCOPIC)&CENTER DOOR-GLIDING(AUTO)
STEERING COLUMN-WITH(TILT & TELESCOPIC)&LUGGAGE & BACK DOOR-*DSBD
9324914020
main93249-14020
12 parts on this diagram · 2 diagrams in section
