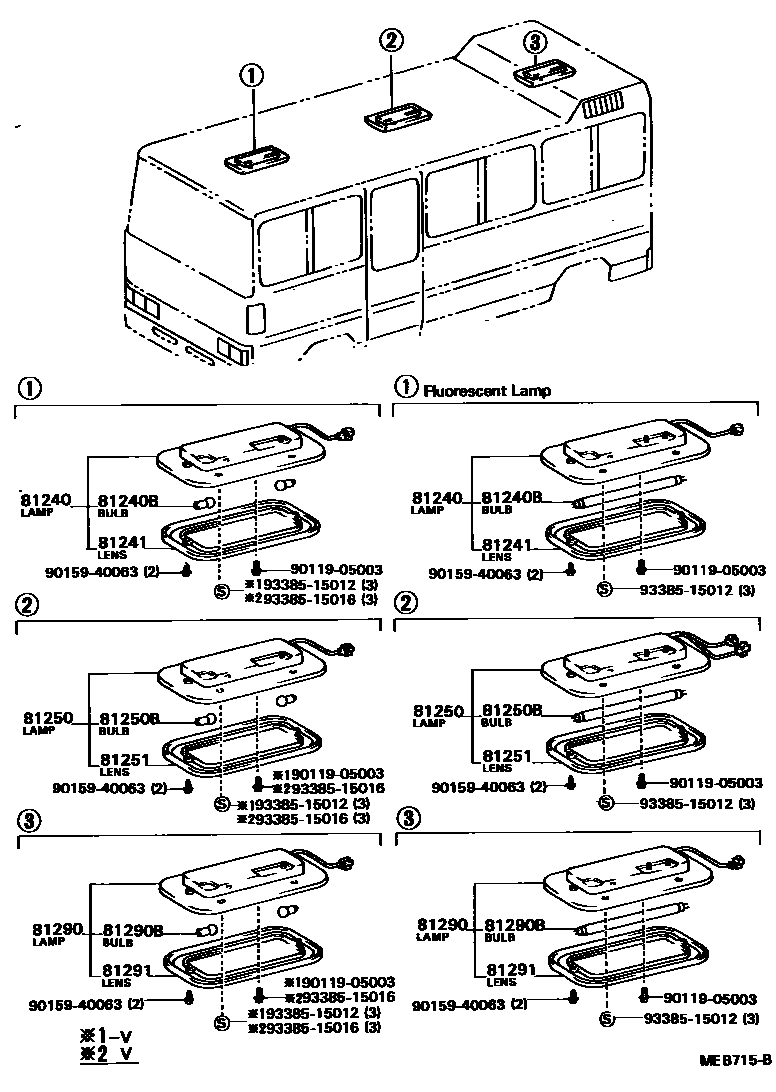

Toyota COASTER — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
12V,*FL
24V,*FL
main81240-90B02iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V
main81240-90B03iBB20..GEN,ME;BB21,22,23..DLX,STD;HB30,HZB30..STD..GEN;BB20,HB30,HZB30..DLX..(20S,23S,29S,30S)198510-199301
24V
24V
12V
12V
81240BBULB, ROOM LAMP, NO.1
100V 10W(MARK FL10D),100V 10W(MARK:FL10D)
12V 12W
main99132-11100×2iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V 10W,12V 10W
24V 12W,24V 12W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
12V,*FL
24V,*FL
main81240-90B02iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V
24V
81250BBULB, ROOM LAMP, NO.2
100V 10W(MARK FL10D),*FL,MARK=FL10D
main99132-11100×2iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V 10W,12V 10W
main99134-11120×2iBB20..GEN,ME;BB21,22,23..DLX,STD;HB30,HZB30..STD..GEN;BB20,HB30,HZB30..DLX..(20S,23S,29S,30S)198510-199301
24V 12W,24V 12W
81251LENS, ROOM LAMP, NO.2
81290LAMP ASSY, ROOM, NO.3
*FL
main81240-90B02iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V
24V
81290BBULB, ROOM LAMP, NO.3
100V 10W(MARK FL10D),*FL,MARK=FL10D
main99132-11100×2iBB20,21,32,HB30,HZB30..(15S,20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198205-199301
12V 10W,12V 10W
main99134-11120×2iBB20..GEN,ME;BB21,22,23..DLX,STD;HB30,HZB30..STD..GEN;BB20,HB30,HZB30..DLX..(20S,23S,29S,30S)198510-199301
24V 12W,24V 12W
81291LENS, ROOM LAMP, NO.3(FOR REAR)
9011905003
main90119-05003
9015940063
main90159-40063
9338515012
main93385-15012
9338515016
main93385-15016
9388515012
main93885-15012
14 parts on this diagram · 3 diagrams in section
INTERIOR LAMP for Toyota COASTER
This section contains 31 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COASTER. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
