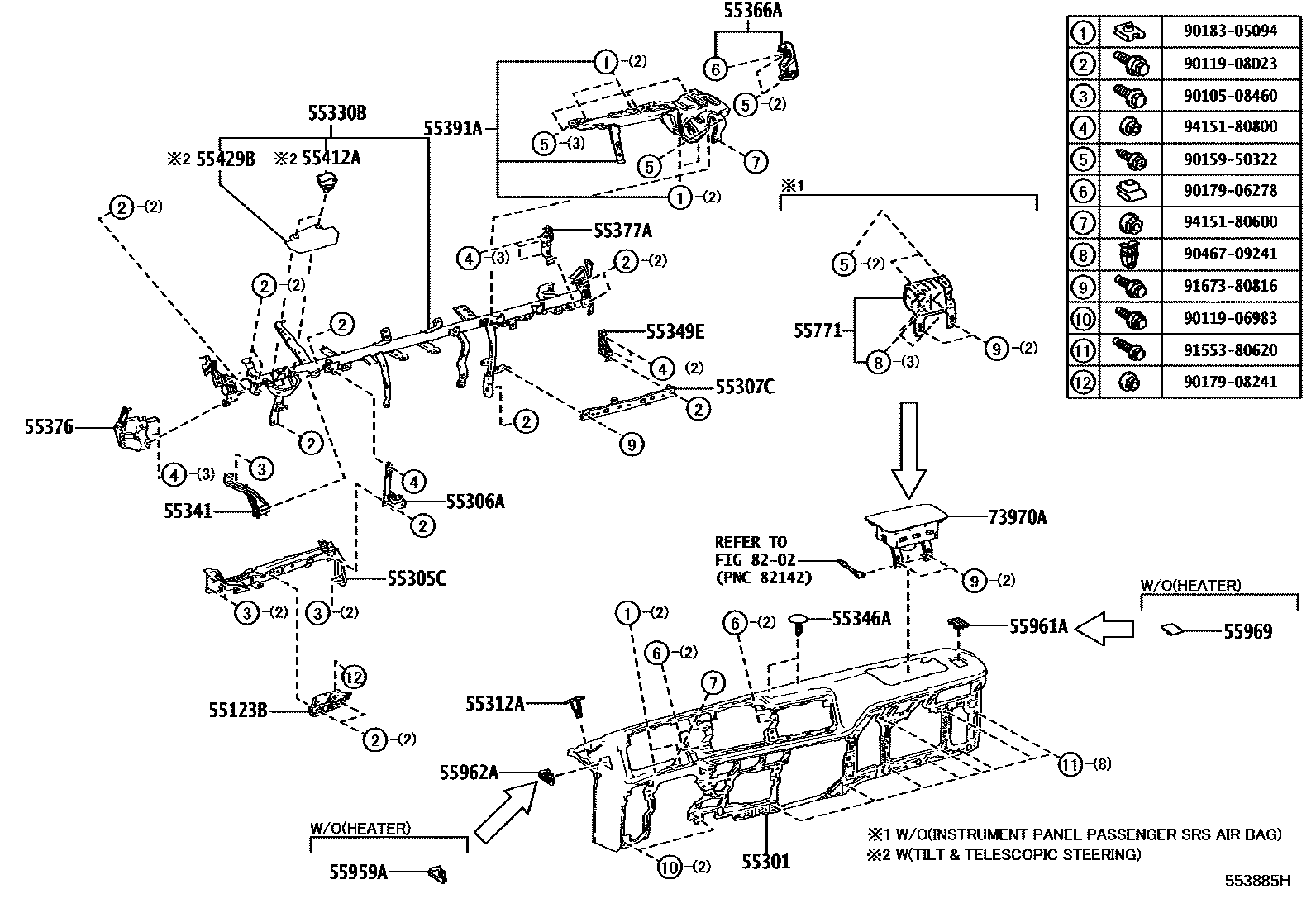

Toyota COASTER — INSTRUMENT PANEL & GLOVE COMPARTMENT
55123BREINFORCEMENT, STEERING SUPPORT
main55123-36030supersedes 55123-36040iGDB70..DX..ARL;GDB70,XZB80..RHD..6FC..(EX,STD)..(ARL,GEN); XZB80..5F202201-202512
STEERING COLUMN-WITH(TILT & TELESCOPIC)
55301PANEL SUB-ASSY, INSTRUMENT
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
main55311-36150-B0iGDB70,TRB60,70..(6F,6FC)..GCC; HZB70..30S..WOC;GDB70,HZB70,TRB70..LHD..(23S,30S)..WC..GEN202201
MD.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-WITH,MD.GRAY,TRIM1#
SAUDIARABIA SPEC&FRONT SEAT-ONLY DRIVER SEAT,MD.GRAY,TRIM1#
55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
main55305-36060iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312ACLIP, INSTRUMENT PANEL
main90467-07117iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-36012supersedes 55330-36021iGDB70..DX..ARL;GDB70,XZB80..RHD..6FC..(EX,STD)..(ARL,GEN); XZB80..5F202201-202512
STEERING COLUMN-WITH(TILT & TELESCOPIC)
main55330-36040iHZB70..30S..WOC;TRB60,70..(20S,23S)..6F;GDB70,HZB70..LHD..(02S,23S,30S)..WC..(GEN,TAIW)202201
STEERING COLUMN-WITH(TILT & TELESCOPIC)
55341BRACE, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
BLACK; SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-WITH,BLACK
55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER
55366ABRACKET, RADIO MOUNTING, NO.1
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-36030iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55391APANEL, INSTRUMENT PANEL REINF, INNER NO.1
55412ACLIP, PANEL, INSTRUMENT CLUSTER FINISH, END
BLACK
55429BPROTECTOR, INSTRUMENT CLUSTER FINISH PANEL
STEERING COLUMN-WITH(TILT & TELESCOPIC)
55771BRACKET, INSTRUMENT PANEL, UPPER
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
55961ANOZZLE, SIDE DEFROSTER, RH
main55961-36040-B0iHZB60,70,XZB70..RHD..(26S,29S,30S); XZB80..5F,6FC;XZB70..RHD..(20S,23S)..5F201701-202201
FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#
FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#
55962ANOZZLE, SIDE DEFROSTER, LH
FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
55969COVER, DEFROSTER NOZZLE OPENING, NO.2
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
8202WIRING & CLAMP
9010508460
main90105-08460
9011906983
main90119-06983
9011908D23
main90119-08D23
9015950322
main90159-50322
9017906278
main90179-06278
9017908241
main90179-08241
9018305094
main90183-05094
9046709241
main90467-09241
9155380620
main91553-80620
9167380816
main91673-80816
9415180600
main94151-80600
9415180800
main94151-80800
35 parts on this diagram · 11 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COASTER
This section contains 76 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COASTER. Key components include: REINFORCEMENT, STEERING SUPPORT, PANEL SUB-ASSY, INSTRUMENT, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2.
