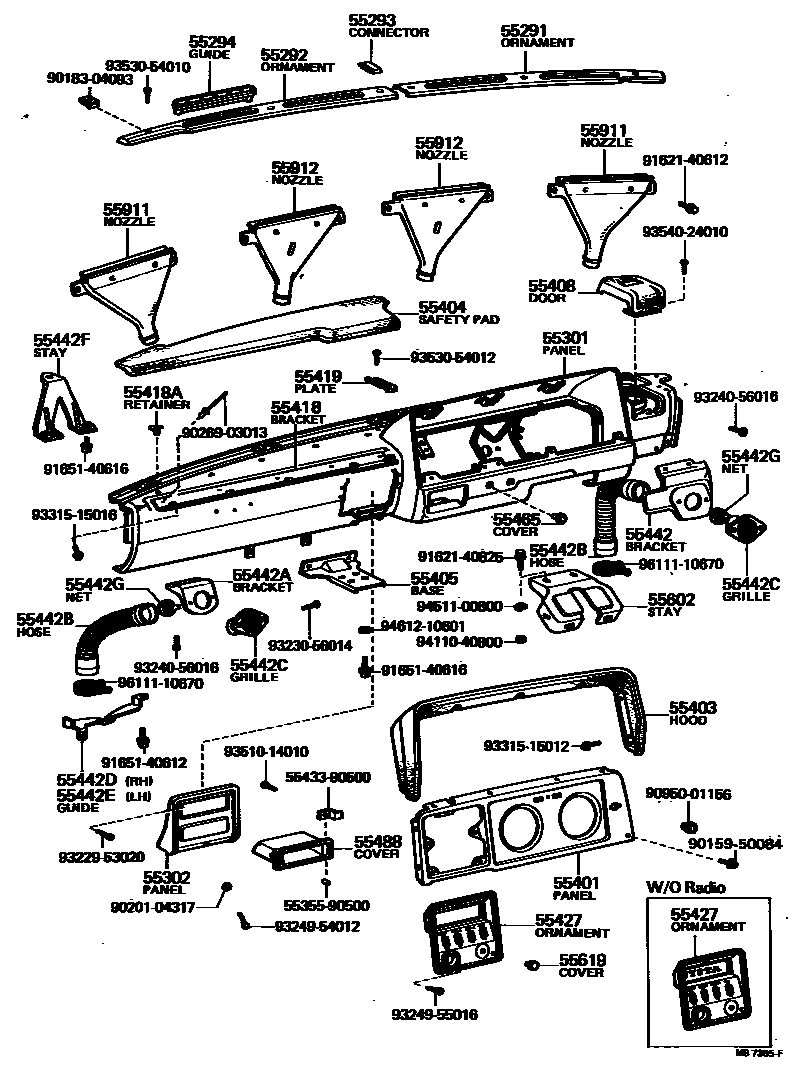

Toyota COASTER — INSTRUMENT PANEL & GLOVE COMPARTMENT
55291ORNAMENT, DEFROSTER NOZZLE, RH
55292ORNAMENT, DEFROSTER NOZZLE, LH
55293CONNECTOR, DEFROSTER NOZZLE
55294GUIDE, DEFROSTER NOZZLE
55301PANEL SUB-ASSY, INSTRUMENT
W/MICROPHONE
W/MICROPHONE
W/MICROPHONE
W/MICROPHONE
W/MICROPHONE
W/MICROPHONE
55302PANEL SUB-ASSY, CENTER CONTROL
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
W/SEDIMENTER
W/SEDIMENTER
55403HOOD SUB-ASSY, METER
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55405BASE SUB-ASSY, WIPER MOTOR BRACKET
55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE
55418BRACKET, SAFETY PAD
55418ARETAINER, SAFETY PAD
55419PLATE, SAFETY PAD
55427ORNAMENT, INSTRUMENT PANEL, CENTER
55442BRACKET,FRONT VENTILATOR AIR OUTLET GRILLE, NO.1
55442ABRACKET, FRONT VENTILATOR AIR OUTLET GRILLE, NO.2
55442BHOSE, FRONT VENTILATOR
55442CGRILLE ASSY, AIR OUTLET
55442DGUIDE, FRONT VENTILATOR AIR, RH
55442EGUIDE, FRONT VENTILATOR AIR, LH
55442FSTAY, FRONT VENTILATOR BRACKET
55442GNET, AIR OUTLET
55465COVER, INSTRUMENT HOLE
55488COVER, STEREO OPENING
55602STAY SUB-ASSY, STEERING COLUMN, UPPER
55619COVER, SWITCH HOLE
55911NOZZLE, DEFROSTER, NO.1
RH
LH
55912NOZZLE, DEFROSTER, NO.2
LH
RH
5535590500CUSHION, INSTRUMENT PANEL, NO.1
main55355-90500
5543390500PLATE, SAFETY PAD SET
main55433-90500
9015950084
main90159-50084
9018304093
main90183-04093
9020104317
main90201-04317
9026903013
main90269-03013
9095001156
main90950-01156
9162140612
main91621-40612
9162140825
main91621-40825
9165140612
main91651-40612
9165140616
main91651-40616
9322953020
main93229-53020
9323056014
main93230-56014
9324056016
main93240-56016
9324954012
main93249-54012
9324955016
main93249-55016
9331515012
main93315-15012
9331515016
main93315-15016
9351014010
main93510-14010
9353054010
main93530-54010
9353054012
main93530-54012
9354024010
main93540-24010
9411040800
main94110-40800
9451100800
main94511-00800
9461210601
main94612-10601
9611110670
main96111-10670
55 parts on this diagram · 2 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COASTER
This section contains 55 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COASTER. Key components include: ORNAMENT, DEFROSTER NOZZLE, RH, ORNAMENT, DEFROSTER NOZZLE, LH, CONNECTOR, DEFROSTER NOZZLE, GUIDE, DEFROSTER NOZZLE, PANEL SUB-ASSY, INSTRUMENT.
