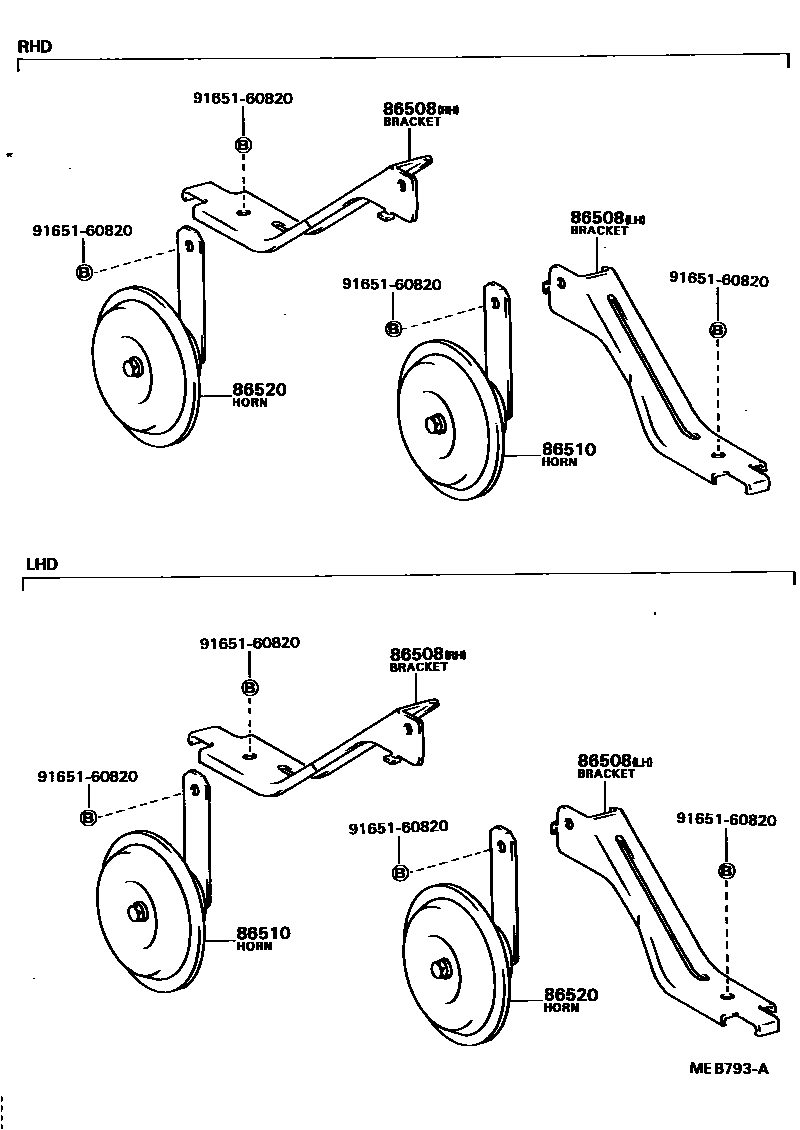

Toyota COASTER — HORN
86508BRACKET SUB-ASSY, HORN
RH
LH
86510HORN ASSY, HIGH PITCHED
main86510-12420iBB20,21,HB30,HZB30..WOC..(ARL,GEN); BB20,21,HB30..LHD..WOC..GEN; FB30,RB20..ARL,GEN; FB30,RB20..LHD..GEN198510-199301
12V; 12V,CHINA SPEC; CHINA SPEC
W/AM/SW RADIO; W/AM/SW RADIO,12V
main86510-22091iBB20,21,HB30,HZB30..WOC..GEN; BB20,21..WOC..ME; FB30,RB20..GEN; FB30,RB20..ME198510-199301
12V; 12V,AM/SW; AM/SW
12V,MIDDLE EAST SPEC
12V,MIDDLE EAST SPEC
24V
24V,MIDDLE EAST SPEC
12V,MARUKO
24V
12V,NIPPONDENSO
W/AM/SW RADIO,24V
24V; 24V,AM/SW
main86510-90K08iBB20,21,HB30..LHD..GEN; BB20..20S..WC;BB21,22,23..ARL,GEN;HB30,HZB30..STD..GEN;HB30,HZB30..(DLX,EX)..5F;BB20..(15S,16S,22S,26S)..(ARL,GEN)198510-199301
24V; 24V,CHINA SPEC
86520HORN ASSY, LOW PITCHED
main86520-12610iBB20,21,HB30..LHD..WOC..GEN; BB20,HZB30..WOC..(ARL,GEN); FB30,RB20..ARL,GEN; FB30,RB20..LHD..GEN198510-199301
12V; 12V,CHINA SPEC; CHINA SPEC
12V,MARUKO
W/AM/SW RADIO; W/AM/SW RADIO,12V
main86520-22091iBB20,21,HB30,HZB30..WOC..GEN; BB20,21..WOC..ME; FB30,RB20..GEN; FB30,RB20..ME198510-199301
12V; 12V,AM/SW; AM/SW
12V,MIDDLE EAST SPEC
12V,MIDDLE EAST SPEC
24V
24V,MIDDLE EAST SPEC
24V
12V,DENSO
W/AM/SW RADIO,24V
24V; 24V,AM/SW
main86520-90K07iBB20,21,HB30..LHD..GEN; BB20..20S..WC;BB21,22,23..ARL,GEN;HB30,HZB30..STD..GEN;HB30,HZB30..(DLX,EX)..5F;BB20..(15S,16S,22S,26S)..(ARL,GEN)198510-199301
24V; 24V,CHINA SPEC
9165160820
main91651-60820
4 parts on this diagram · 2 diagrams in section
HORN for Toyota COASTER
This section contains 5 genuine Toyota parts for the HORN system of the Toyota COASTER. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, BRACKET, HORN.
