Toyota COASTER — HORN

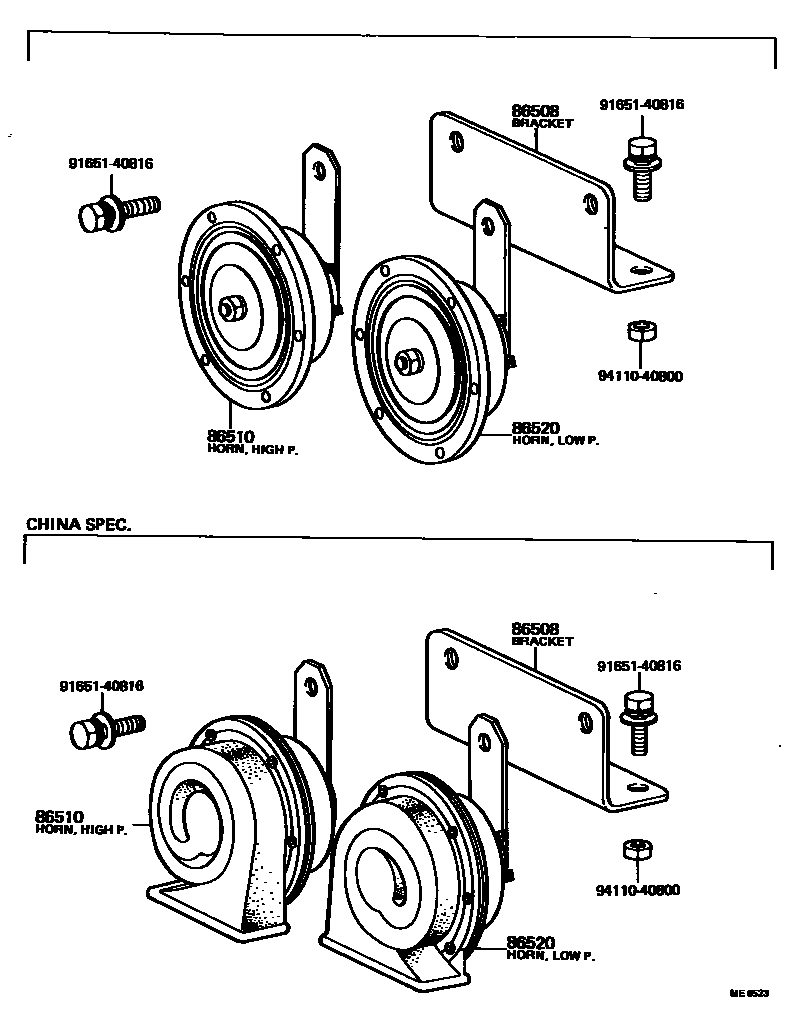

Parts diagram
86508BRACKET SUB-ASSY, HORN
main86511-90740i197708-198204
86510HORN ASSY, HIGH PITCHED
main86510-36090i197708-198204
12V
main86510-36100i197905-198204
24V
main86510-36110i197711-197911
CHINA SPEC
main86510-36111i197911-198204
12V,CHINA SPEC
main86510-36121i197911-198204
24V,CHINA SPEC
86520HORN ASSY, LOW PITCHED
main86520-36090i197708-198204
12V
main86520-36100i197905-198204
24V
main86520-36110i197711-197911
CHINA SPEC
main86520-36111i197911-198204
12V,CHINA SPEC
main86520-36121i197911-198204
24V,CHINA SPEC
9165140816
main91651-40816
9411040800
main94110-40800

5 parts on this diagram · 1 diagram in section

HORN for Toyota COASTER

This section contains 5 genuine Toyota parts for the HORN system of the Toyota COASTER. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
