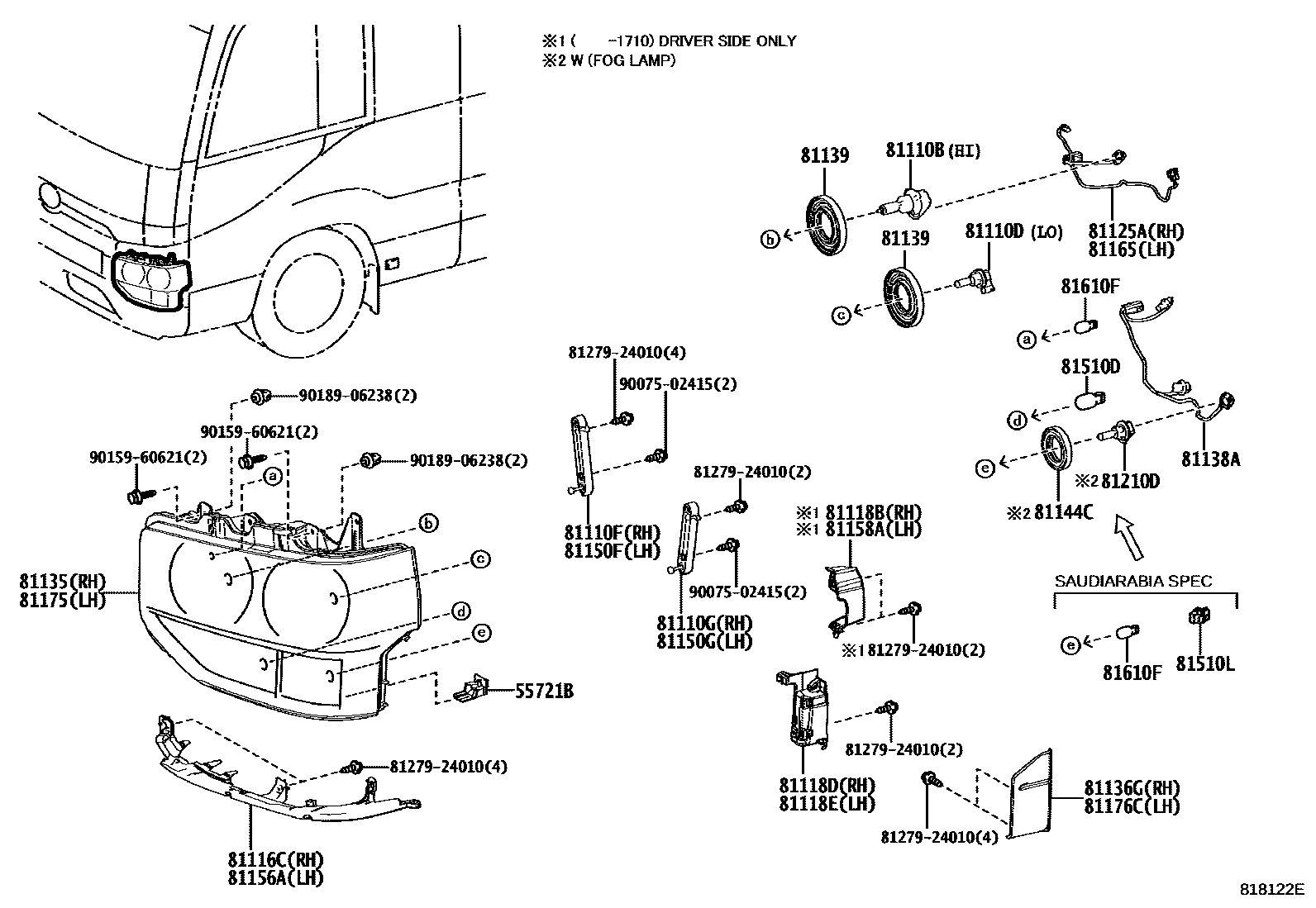

Toyota COASTER — HEADLAMP
55721BBRACKET, HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
12V 60/55W,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81110FGEAR UNIT ASSY, RH NO.1
main81117-36640iHZB70..30S..WOC;GDB60,HZB60,TRB70..25S,26S,30S;XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB70..(23S,25S,30S)..WC..GEN202201
81110GGEAR UNIT ASSY, RH NO.2
81116CBRACKET, HEADLAMP, RH
main81116-36710iGDB70..DX..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB70,TRB60,70..(6F,6FC)..(GCC,SA,TAIW); HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH
81118BBRACKET, HEADLAMP, RH NO.1
81118DBRACKET, HEADLAMP, RH NO.2
81118EBRACKET, HEADLAMP, LH NO.2
81125ACORD, HEADLAMP, RH
main81125-36640iHZB70..30S..WOC;GDB60,HZB60,TRB70..25S,26S,30S;XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB70..(23S,25S,30S)..WC..GEN202201
main81125-36710iHZB70..23S..WC..GEN; XZB70..LHD..DX..GEN; XZB70..SA;GDB70..DX..GEN;GDB70..SA,TAIW;XZB70..RHD..29S202201
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH
HEADLAMP-LED; HEADLAMP-LED&FRONT FOG LAMP-WITH
81135UNIT ASSY, HEADLAMP, RH
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI
FRONT FOG LAMP-WITH
SAUDIARABIA SPEC
HEADLAMP-LED
HEADLAMP-LED&FRONT FOG LAMP-WITH
81136GCOVER, HEADLAMP, NO.1 RH
81138ASOCKET & WIRE, HEADLAMP
EGYPT SPEC
FRONT FOG LAMP-WITH
SAUDIARABIA SPEC
81139COVER, HEADLAMP SOCKET
81144CCOVER, HEADLAMP SOCKET
FRONT FOG LAMP-WITH
81150FGEAR UNIT ASSY, LH NO.1
main81117-36710iHZB70..23S..WC..GEN; XZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201
EGYPT SPEC
81150GGEAR UNIT ASSY, LH NO.2
81156ABRACKET, HEADLAMP, LH
main81156-36630iHZB70..30S..WOC;GDB60,HZB60,TRB70..25S,26S,30S;XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB70..(23S,25S,30S)..WC..GEN202201
main81156-36700iGDB70..DX..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB70,TRB60,70..(6F,6FC)..(GCC,SA,TAIW); HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH
81158ABRACKET, HEADLAMP, LH NO.1
81165CORD, HEADLAMP, LH
main81125-36710iHZB70..23S..WC..GEN; XZB70..LHD..DX..GEN; XZB70..SA;GDB70..DX..GEN;GDB70..SA,TAIW;XZB70..RHD..29S202201
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH
HEADLAMP-LED; HEADLAMP-LED&FRONT FOG LAMP-WITH
81175UNIT ASSY, HEADLAMP, LH
HEADLAMP-LED
HEADLAMP-LED&FRONT FOG LAMP-WITH
ALGERIA SPEC&HEADLAMP-4-BULB HALOGEN MULTI; EGYPT SPEC&HEADLAMP-4-BULB HALOGEN MULTI
FRONT FOG LAMP-WITH
SAUDIARABIA SPEC
81176CCOVER, HEADLAMP, NO.1 LH
81210DBULB, FOG LAMP
12V 35W,HALOGEN
12V 19W,HEADLAMP-LED; 12V 19W,HEADLAMP-LED&FRONT FOG LAMP-WITH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81510LSOCKET, DAYTIME RUNNING LAMP
SAUDIARABIA SPEC
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
main99132-12050×2iBZB60,70,HZB70,TRB60,70,XZB60,70..01S,02S,17S,19S,20S,22S,23S; HZB70..LHD..30S..WC201701-201706
12V 5W; 12V 5W,EGYPT SPEC
12V 21/5W,SAUDIARABIA SPEC
8127924010WASHER, SIDE TURN SIGNAL LAMP
main81279-24010
9007502415
main90075-02415
9015960621
main90159-60621
9018906238
main90189-06238
30 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota COASTER
This section contains 30 genuine Toyota parts for the HEADLAMP system of the Toyota COASTER. Key components include: BRACKET, HEADLAMP, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), GEAR UNIT ASSY, RH NO.1, GEAR UNIT ASSY, RH NO.2.
