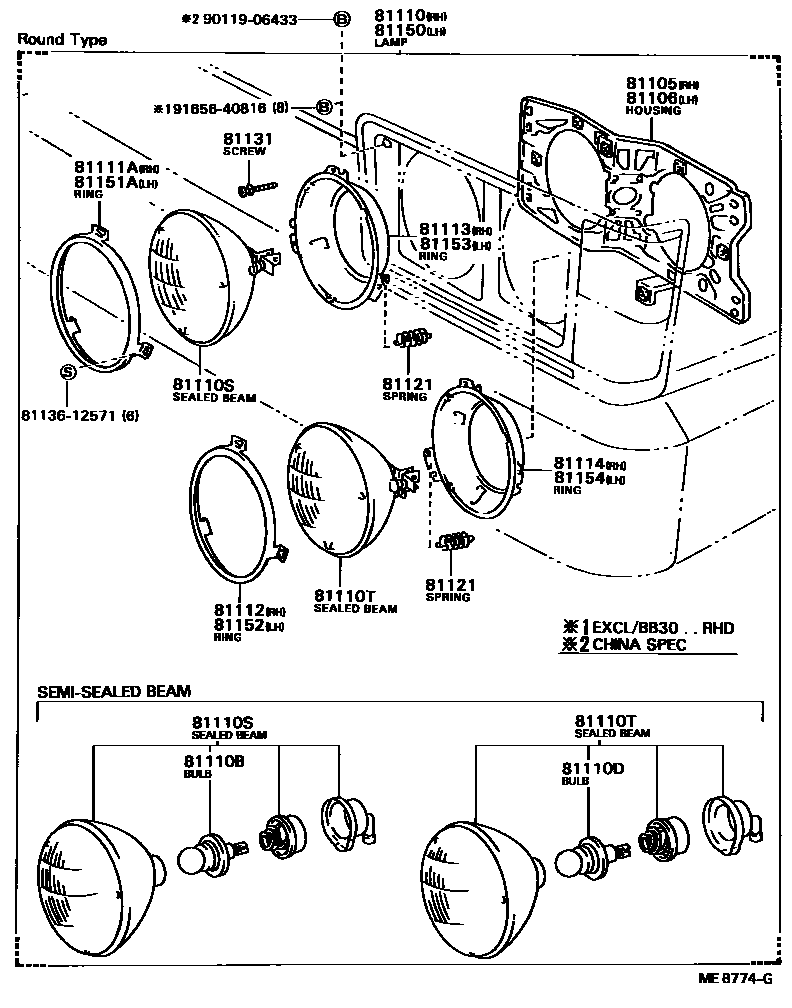

Toyota COASTER — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-90B00i198510-199301

*ROU

main81105-90B04i198510-199301

*REC

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-90B00i198205-198510

main81106-90B04i198510-199301

*REC

81110HEADLAMP ASSY, RH

main81110-80224i198205-198510

12V,*ROU,WHITE

main81110-80225i198205-199301

12V,*ROU,WHITE

main81110-80226i198510-199301

24V,*ROU,WHITE

main81110-80227i198205-199301

24V,*ROU,WHITE

main81110-80228i198510-199301

12V,*REC

main81110-80229i198510-199301

24V,*REC

main81110-80300i198209-199301

12V,*ROU,YELLOW

main81110-80301i198510-199301

24V,*ROU,YELLOW

main81110-90B08i198408-198608

24V,*ROU,WHITE

main81110-90B13i198510-199001

24V,*REC

main81110-90B14i198510-199301

12V,*REC

main81110-90B15i198510-199301

24V,*REC

main81110-90B16i198510-199008

12V,*REC

main81110-90B18i198801-199301

12V,*ROU,CHINA SPEC

main81110-90B19i198801-199301

24V,*ROU,CHINA SPEC

main81110-90B21i199008-199205

12V,*REC

main81110-90B22i199008-199301

24V,*REC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2i198801-199301

12V 45/40W,WHITE,12V 45W,CHINA SPEC

main90981-13014×2i198209-199301

12V 45/40W,YELLOW,12V 45W,YELLOW

main90981-13017×2i198510-199205

12V 55W,*HAL *WH,12V 55W

main90981-17008×2i198801-199301

24V 55/50W,WHITE,24V 55W,CHINA SPEC

main90981-17009×2i198209-198510

24V 55/50W,YELLOW,24V 55W,YELLOW

main90981-17015i199001-199301

24V 70W,*HAL *WH,24V 70W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013×2i198801-199301

12V 45/40W,WHITE,12V 45/40W,CHINA SPEC

main90981-13014×2i198209-199301

12V 45/40W,YELLOW,12V,45/40W,YELLOW

main90981-13015×2i198510-199205

12V 60/55W,*HAL *WH,12V 60/55W

main90981-17008×2i198408-198608

24V 55/50W,WHITE,24V,55/50W,WHITE

main90981-17009×2i198209-198510

24V 55/50W,YELLOW,24V,55/50W,YELLOW

main90981-17011×2i199001-199301

24V 75/70W,*HAL *WH,24V 75/70W

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2i198205-198510

12V 37.5W,*WB,12V 37.5W,*ROU,WHITE

main90981-02018×2i198801-199301

12V 45/40W,*WSB,12V 45W,*ROU,CHINA SPEC

main90981-02020×2i198209-199301

12V 45/40W,*YSB,12V 45W,*ROU,YELLOW

main90981-05002×2i198510-199301

12V 50W,*WB,12V 50W,*REC

main90981-05034×2i198510-199301

12V 50W,*WB,12V 50W,*REC

main90981-05040×2i198510-199008

12V 55W,*HWS,12V 55W,*REC

main90981-05047i199008-199205

12V 55W,*HWS,12V 55W,*REC

main90981-08007×2i198510-199301

24V 40W,*WB,24V 40W,*ROU,WHITE

main90981-08010×2i198801-199301

24V 55/50W,*WSB,24V 55W,*ROU,CHINA SPEC

main90981-08012×2i198209-198510

24V 55/50W,*YSB,24V 55W,*ROU,YELLOW

main90981-10001×2i198510-199301

24V 55W,*WB,24V 55W,*REC

main90981-10003×2i198510-199301

24V 55W,*WB,24V 55W,*REC

main90981-10005×2i198510-199001

24V 70W,*HWS,24V 70W,*REC

81110TSEALED BEAM UNIT, NO.2

main90981-02012×2i198205-198510

12V 37.5/50W,*WB,12V 37.5/50W,*ROU,WHITE

main90981-02013×2i198205-199301

12V 37.5/50W,*WB,12V 37.5W/50W,*ROU,WHITE

main90981-02019×2i198801-199301

12V 45/40W,*WSB,12V 45/40W,*ROU,CHINA SPEC

main90981-02021×2i198209-199301

12V 45/40W,*YSB,12V 45/40W,*ROU,YELLOW

main90981-05004×2i198510-199301

12V 40/60W,*WB,12V 40/60W,*REC

main90981-05035×2i198510-199301

12V 40/60W,*WB,12V 40/60W,*REC

main90981-05042×2i198510-199008

12V 60/55W,*HWS,12V 60/55W,*REC

main90981-05052×2i199008-199205

12V 60/55W,*HWS,12V 60/55W,*REC

main90981-08008×2i198510-199301

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

main90981-08009×2i198205-199301

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

main90981-08011×2i198801-199301

24V 55/50W,*WSB,24V 55/50W,*ROU,CHINA SPEC

main90981-08013×2i198209-198510

24V 55/50W,*YSB,24V 55/50W,*ROU,YELLOW

main90981-08022×2i198408-198608

24V 55/50W,*WSB,24V 55/50W,*ROU,WHITE

main90981-10002×2i198510-199301

24V 50/65W,*WB,24V 50/65W,*REC

main90981-10006×2i198510-199001

24V 75/70W,*HWS,24V 75/70W,*REC

main90981-10007×2i198510-199301

24V 50/65W,*WB,24V 50/65W,*REC

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20280i198510-199301

*ROU

main81111-20360i198510-199301

*REC

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-20280i198205-198510

main81111-20360i198510-199301

*REC

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-20170i198205-198210

main81113-90B04i198510-199301

*REC

main81153-95010i198210-198510

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-22391i198510-199301

*REC

main81114-95010i198510-199301

*ROU

main81154-20130i198205-198210

81121SPRING, HEADLAMP TENSION

main81121-14320×4i198510-199301

*REC

main81121-20100×4i198510-199301

*ROU

81131SCREW, HEADLAMP ADJUSTING

main81131-20043×8i198205-198510

main81131-20360×8i198510-198802

*REC

main81131-28050×8i198802-199301

*REC

main90075-00001×8i198802-199301

*ROU

81150HEADLAMP ASSY, LH

main81150-80221i198205-198510

12V,*ROU,WHITE

main81150-80222i198205-199301

12V,*ROU,WHITE

main81150-80223i198510-199301

24V,*ROU,WHITE

main81150-80224i198205-199301

24V,*ROU,WHITE

main81150-80225i198510-199301

12V,*REC

main81150-80226i198510-199301

24V,*REC

main81150-80297i198209-199301

12V,*ROU,YELLOW

main81150-80298i198510-199301

24V,*ROU,YELLOW

main81150-90B08i198408-198608

24V,*ROU,WHITE

main81150-90B13i198510-199001

24V,*REC

main81150-90B14i198510-199301

12V,*REC

main81150-90B15i198510-199301

24V,*REC

main81150-90B16i198510-199001

12V,*REC

main81150-90B18i198801-199301

12V,*ROU,CHINA SPEC

main81150-90B19i198801-199301

24V,*ROU,CHINA SPEC

main81150-90B21i199008-199205

12V,*REC

main81150-90B22i199008-199301

24V,*REC

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20280i198205-198510

main81111-20360i198510-199301

*REC

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-20280i198205-198510

main81111-20360i198510-199301

*REC

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-95010i198510-199301

*ROU

main81153-20130i198205-198210

main81153-90B04i198510-199301

*REC

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-20170i198205-198210

main81154-22391i198510-199301

*REC

main81154-95010i198210-198510

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9011906433

main90119-06433

9165640816

main91656-40816

21 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota COASTER

This section contains 21 genuine Toyota parts for the HEADLAMP system of the Toyota COASTER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
