Toyota COASTER — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
KOITO
SEMI-SEALED
IKI
81106HOUSING SUB-ASSY, HEADLAMP, LH
KOITO
SEMI-SEALED
IKI
81110HEADLAMP ASSY, RH
12V
12V
12V,SEMI-SEALED,YELLOW
24V
24V
24V,SEMI-SEALED,YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,YELLOW,12V 45/40W,YELLOW
24V 55/50W,YELLOW,24V 55/50W,YELLOW
81110SSEALED BEAM UNIT, NO.1
12V 37.5W,*WB,12V 37.5W,KOITO
12V 45/40W,*YSB,12V 45W,SEMI-SEALED,YELLOW
12V 37.5W,TOSHIBA
24V 40W,*WB,24V 40W,KOITO
24V 55/50W,*YSB,24V 55W,SEMI-SEALED,YELLOW
24V 40W,TOSHIBA
81110TSEALED BEAM UNIT, NO.2
12V 37.5/50W,*WB,12V 37.5/50W,KOITO
12V 37.5/50W,*WB,12V 37.5/50W,KOITO
12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW
12V 37.5/50W,TOSHIBA
12V 37.5/50W,TOSHIBA
24V 40/60W,*WB,24V 40/60W,KOITO
24V 40/60W,*WB,24V 40/60W,KOITO
24V 55/50W,*YSB,24V,55/50W,SEMI-SEALED,YELLOW
24V 40/60W,TOSHIBA
24V 40/60W,TOSHIBA
81111RING, SEALED BEAM RETAINING
IKI
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
IKI
KOITO
81114RING, SEALED BEAM MOUNTING, NO.2 RH
KOITO
IKI
81121SPRING, HEADLAMP TENSION
KOITO
IKI
81131SCREW, HEADLAMP ADJUSTING
KOITO
IKI
81150HEADLAMP ASSY, LH
12V
12V
12V SEMI-SEALED YELLOW; 12V,SEMI-SEALED,YELLOW
24V
24V
24V,SEMI-SEALED,YELLOW
81153RING, SEALED BEAM MOUNTING, NO.1 LH
KOITO
IKI
81154RING, SEALED BEAM MOUNTING, NO.2 LH
KOITO
IKI
9161140618
main91611-40618
9321914008
main93219-14008

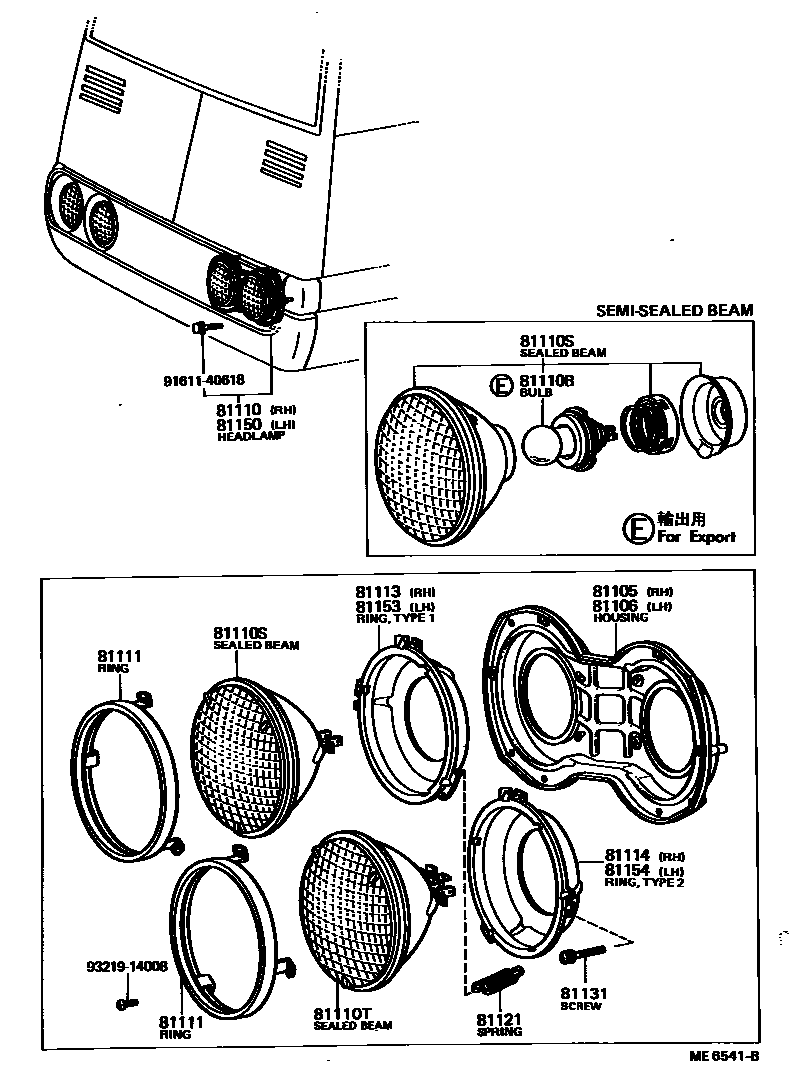

16 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota COASTER
This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota COASTER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
