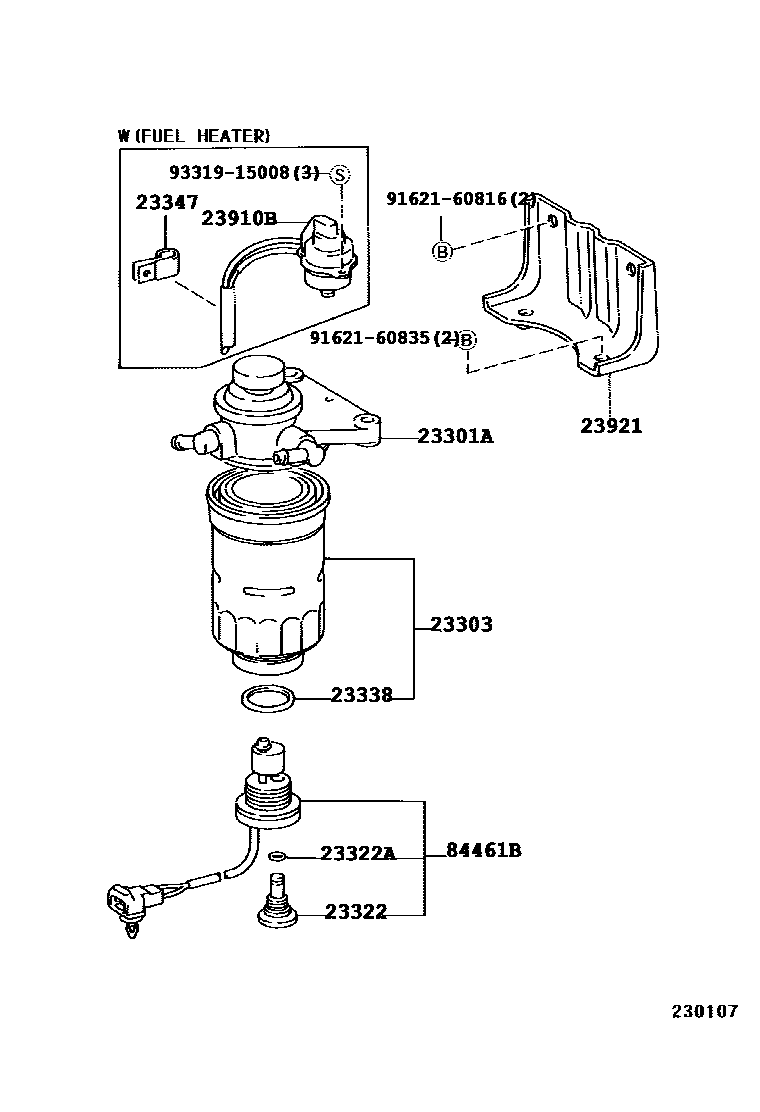

Toyota COASTER — FUEL FILTER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

23301ACAP ASSY, FUEL FILTER

main23301-17190i1HZ#..HZB50199301-199907

main23301-17200i1HZ..HZB50..GEN,SCO199301-199907

W(FUEL HEATER)

main23301-58150i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199301-199907

main23301-58160i14B..BB42..GEN,SCO199301-199907

W(FUEL FILTER)

main23380-17430i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-200902

sub23380-17431

main23380-17431i1HZ..HZB50200902-201501

main23380-17440i15BFTE..BB50..IV200105-200608

sub23380-17441

main23380-17440i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-200812

W(FUEL HEATER)

sub23380-17441

main23380-17441i1HZ..HZB50..GEN201501

W/HEATER

main23380-17441i1HZ..HZB50..GEN200812-201501

W(FUEL HEATER)

main23380-58310i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199907-200902

sub23380-58311

main23380-58311i14B..BB42200902-201501

main23380-58320i15BFT..BB50..IV..6F199605-201501

main23380-58330i14B..BB42..22S;14B..BB42..RHD..HRF..WOC199907-200812

W(FUEL HEATER)

sub23380-58331

main23380-58331i14B..BB42..GEN200812-201501

W(FUEL HEATER)

main23380-78350iN04C..XZB40,59;N04C..XZB50..20S,21S200608-200901

sub23380-78351

main23380-78351iN04C..XZB40,5#..WC..(ARL,GEN,TAIW)200901-201501

main23380-78360iN04C..XZB50..IV200608-200903

sub23380-78361

main23380-78361iN04C..XZB50..IV200903-201303

sub23380-78362

main23380-78362iN04C..XZB50..IV201303-201311

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-56040i1HZ..HZB50199301-199907

main23303-59015i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-201501

main23303-64010i1HZT..HZB50199301-199605

main23390-30170i14B..BB42..RHD;14B..BB42..LHD..SRF..GEN200812-201501

W(FUEL HEATER)

main23390-30170i14B..BB42..GEN201501

W/HEATER

main23390-64480i1HZ..HZB50..ARL199907-201501

main23390-78280iN04C..XZB50..WOC..CBU200608-201501

main23390-78280iN04C..XZB50..IV200702-200903

MARK=23390-78280

main23390-78300iN04C..XZB50..IV200903-201311

MARK=23390-78300

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1HZ#..HZB50199301-199907

main23388-64470i1HZ..HZB50199907-201501

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1HZ#..HZB50199301-201501

main23344-54020i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-201501

23338GASKET(FOR WARNING SWITCH)

main23344-64010i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199301-201501

23347CLIP, CORD

main23347-54010i14B..BB42..RHD199301-199907

W(FUEL FILTER)

23910BHEATER ASSY, FUEL

main23910-17050i14B..BB42..GEN,SCO199301-199907

main23910-17070i14B..BB42..22S;14B..BB42..RHD..HRF..WOC199907-201501

23921SUPPORT, FUEL FILTER

main23921-17040i1HZ..HZB50199301-201501

84461BSWITCH, LEVEL WARNING

main84461-28040iBB42,5#..DSL,TDEFI199907-201202

sub84461-28041

main84461-28041iBB42201203-201612

main84461-36080iBB4#199301-199705

sub84461-36090

main84461-36090iBB40,42,58;BB50..GEN..IV199301-199907

9162160816

main91621-60816

9162160835

main91621-60835

9331915008

main93319-15008

12 parts on this diagram · 7 diagrams in section
