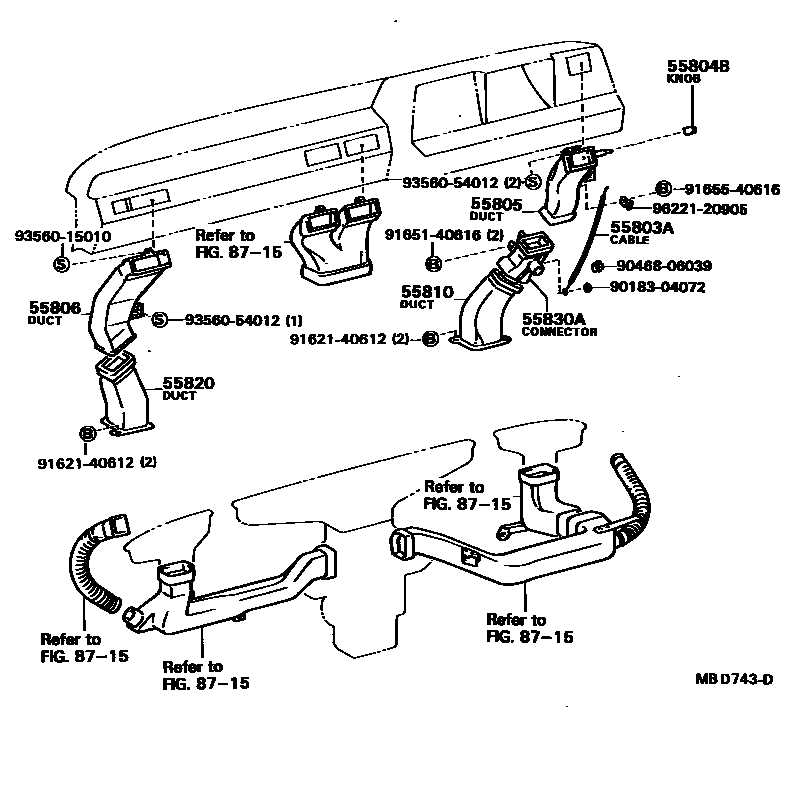

Toyota COASTER — FRONT VENTILATOR

0001 1 0002 1

55803ACABLE SUB-ASSY, FRONT SIDE VENTILATOR CONTROL

main55803-90B00iBB20,RB20198205-198505

55804BKNOB SUB-ASSY, AIR DAMPER CONTROL

main55804-90B00iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55820-90B00iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198504-199301

main55841-90B01iBB20,RB20..LHD198205-198510

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55820-90B01iBB20,RB20..LHD198205-198504

main55841-90B00iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198510-199301

55810DUCT ASSY, SIDE VENTILATOR, RH

main55810-90B00iBB30..RHD198504-198510

55820DUCT ASSY, SIDE VENTILATOR, LH

main55890-90B00iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198510-199301

sub55890-90B01

55830ACONNECTOR ASSY, FRONT SIDE VENTILATOR

main55830-90B00iBB20,RB20..RHD198205-198505

main55830-90B01iBB20,RB20..LHD198205-198505

8715

9018304072

main90183-04072

9046806039

main90468-06039

9162140612

main91621-40612

9165140616

main91651-40616

9165540616

main91655-40616

9356015010

main93560-15010

9356054012

main93560-54012

9622120905

main96221-20905

16 parts on this diagram · 2 diagrams in section
