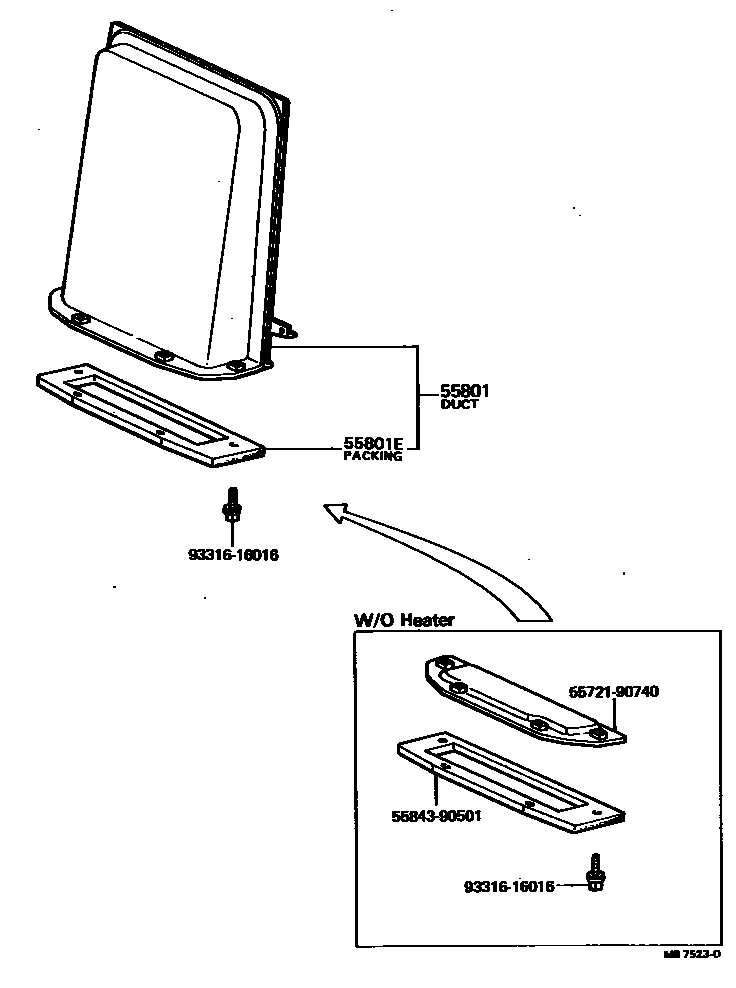

Toyota COASTER — FRONT VENTILATOR

55801DUCT ASSY, COWL VENTILATOR

main55710-90740iBB10,RB1#..RHD197708-198204

main55710-90741iBB10,RB1#..LHD197708-198204

55801EPACKING(FOR COWL VENTILATOR)

main55843-90501iBB10,RB1#197708-198204

5572190740GUSSET, COWL TOP PANEL, RH

main55721-90740

5584390501SPRING, FRONT VENTILATOR, LH

main55843-90501

9331616016

main93316-16016

5 parts on this diagram · 1 diagram in section
