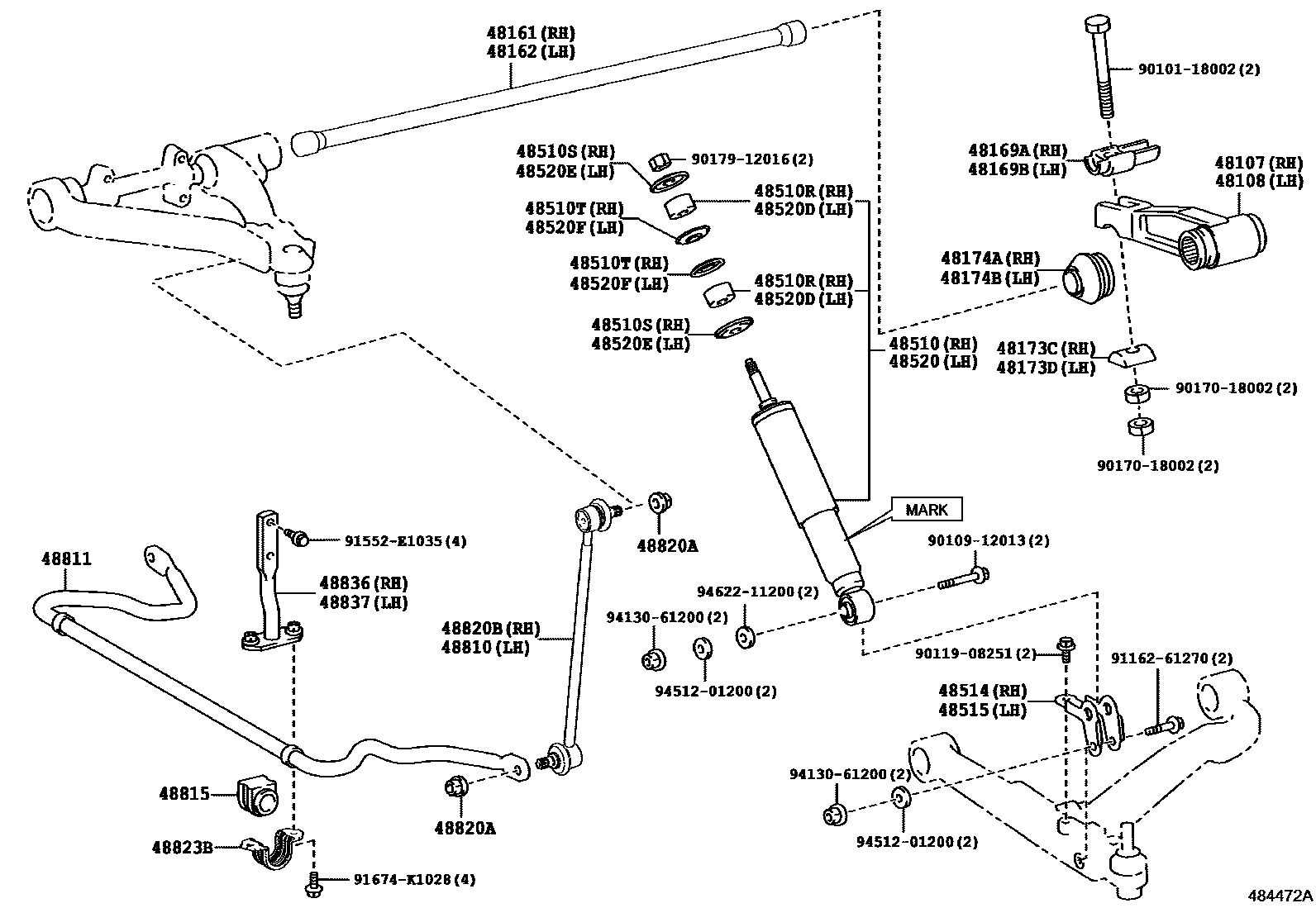

Toyota COASTER — FRONT SPRING & SHOCK ABSORBER

48107ARM SUB-ASSY, ANCHOR, RH

main48107-36030iBB60,XZB60..20S,26S201701-201907

48108ARM SUB-ASSY, ANCHOR, LH

main48108-36030iBZB60,XZB60201701-201712

48161SPRING, TORSION BAR, RH

main48161-36100iXZB80;GDB70..ARL202201-202512

main48161-36120iGDB70..20S;XZB70..20S..5F202201-202512

48162SPRING, TORSION BAR, LH

main48162-36100iTRB60,70..19S,20S,23S,24S,30S;XZB70..(19S,22S,23S,29S)..WC..(GCC,GEN,SA);HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC)201701-202201

main48162-36120iGDB70..20S;XZB70..20S..5F202201-202512

48169ASWIVEL, ANCHOR ARM, RH

main48169-36020iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

48169BSWIVEL, ANCHOR ARM, LH

main48169-36020iBZB60,XZB60201701-201712

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-36010iBZB60,XZB60201701-201712

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-36010iBZB60,XZB60201701-201712

48174ACOVER, TORSION BAR DUST, RH

main48174-36010iBZB60,XZB60201701-201712

48174BCOVER, TORSION BAR DUST, LH

main48174-36010iBZB60,XZB60201701-201712

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80871supersedes 48511-80176iTRB70..GCC202201-202303

MARK 48510-36050

main48511-80176iXZB70..SA;HZB70..30S..WOC;HZB70,TRB70..WC..GEN;XZB70..LHD..(23S,29S)..WC;GDB70,TRB70..(02S,19S,22S,23S)..(6F,6FC)..(GCC,GEN,SA,TAIW)202201

MARK 48511-36330

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01004×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH

main90948-02009×2iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,202201

48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH

main90948-02054×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-36050iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48514-36050iBZB60,XZB60201701-201712

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80871supersedes 48511-80176iBB60,XZB60..20S,26S201701-201907

MARK 48510-36050

main48511-80176iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

MARK 48511-36330

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01004×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH

main90948-02009×2iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH

main90948-02054×2iTRB60,70..GCC202201-202303

48810LINK ASSY, FRONT STABILIZER, LH

main48820-36022iTRB60,70..GCC202201-202303

48811BAR, STABILIZER, FRONT

main48811-36090iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

main48811-36100iTRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S202201

PAPUA NEW GUINEA SPEC

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-36060×2iBZB60,XZB60201701-201712

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iXZB70..RHD..23S..GEN202501

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-36022iBB60,XZB60..20S,26S201701-201907

48823BCOVER, FRONT STABILIZER BRACKET

main48823-36080×2iBZB60,XZB60201701-201712

48836BRACKET, FRONT STABILIZER END, RH

main48836-36050iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

main48836-V4010iHZB60..RHD201908-202101

PAPUA NEW GUINEA SPEC

48837BRACKET, FRONT STABILIZER END, LH

main48837-36040iBZB60,XZB60201701-201712

main48837-V4010iHZB60..RHD201908-202101

PAPUA NEW GUINEA SPEC

9010118002

main90101-18002

9010912013

main90109-12013

9011908251

main90119-08251

9017018002

main90170-18002

9017912016

main90179-12016

9116261270

main91162-61270

91552E1035

main91552-E1035

91674K1028

main91674-K1028

9413061200

main94130-61200

9451201200

main94512-01200

9462211200

main94622-11200

39 parts on this diagram · 1 diagram in section
