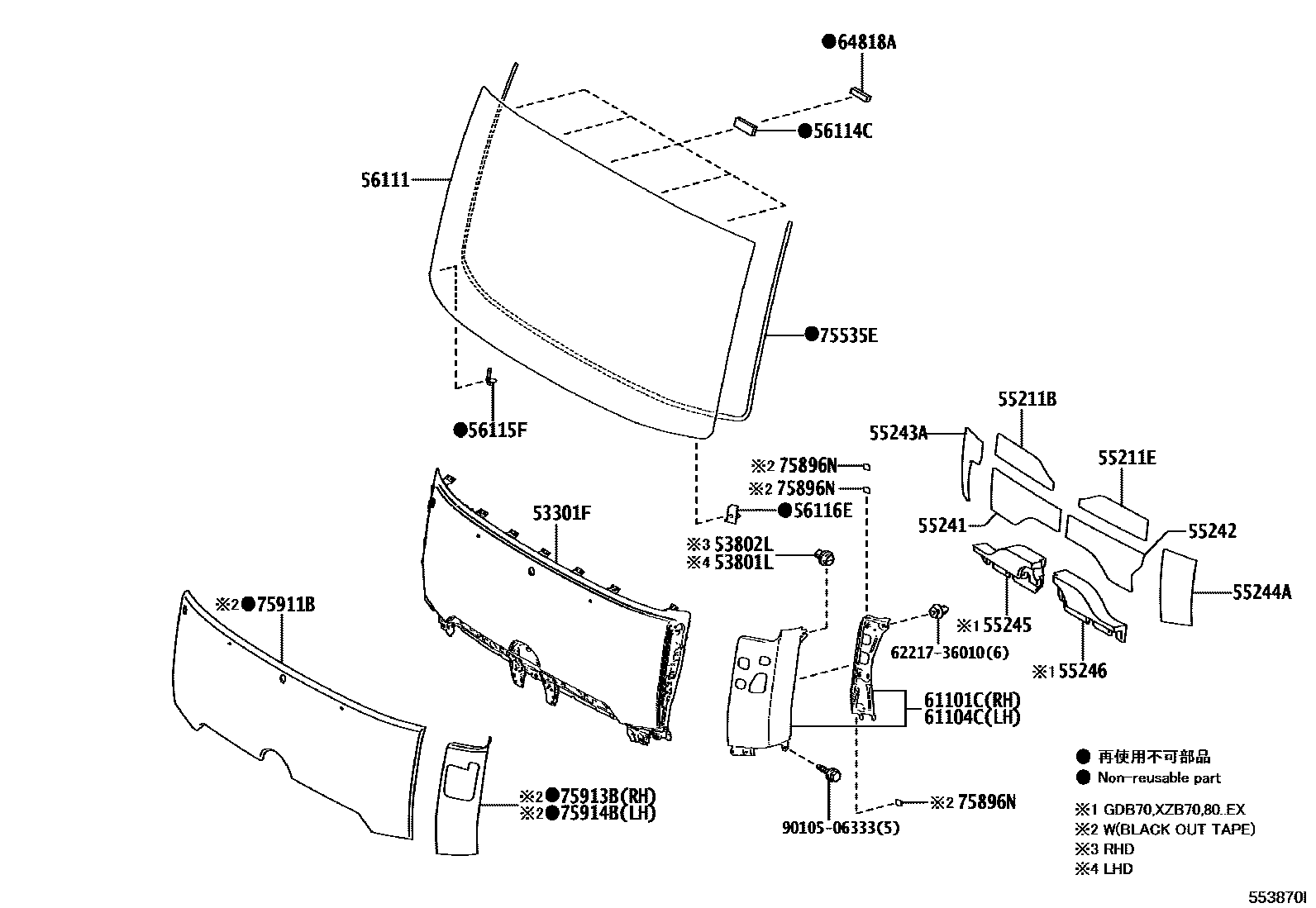

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS
53801LEXTENSION, FRONT FENDER, RH
53802LEXTENSION, FRONT FENDER, LH
55211BSILENCER, FRONT PANEL
55211ESILENCER, FRONT PANEL
main55212-36010iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512
55241SILENCER, FRONT PANEL SIDE, NO.1 RH
55242SILENCER, FRONT PANEL SIDE, NO.1 LH
55243ASILENCER, FRONT PANEL SIDE, NO.2 RH
55244ASILENCER, FRONT PANEL SIDE, NO.2 LH
55245SILENCER, FRONT PANEL SIDE, NO.3 RH
55246SILENCER, FRONT PANEL SIDE, NO.3 LH
56111GLASS, WINDSHIELD
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-WITH
sub56111-36131
WINDSHIELD GLASS-GREEN & WITH(TOP SHADE BAND)
sub56111-36141
WINDSHIELD GLASS-GREEN & WITH(TOP SHADE BAND)
sub56111-36151
WINDSHIELD GLASS-GREEN & WITH(TOP SHADE BAND)
56114CRETAINER, WINDSHIELD GLASS
56115FSTOPPER, WINDSHIELD GLASS
61101CPANEL SUB-ASSY, COWL SIDE, RH
COOL AIR INTAKE-SNORKEL
COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)
61104CPANEL SUB-ASSY, COWL SIDE, LH
64818ASPACER, BACK WINDOW GLASS
main64819-36010iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512
75535EMOULDING, WINDSHIELD, OUTSIDE LOWER
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-WITH
75896NTAPE, MOULDING, NO.1
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE D
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&COOL AIR INTAKE-SNORKEL&REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH
75911BTAPE, BLACK OUT HOOD
6221736010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-36010
9010506333
main90105-06333
25 parts on this diagram · 2 diagrams in section
