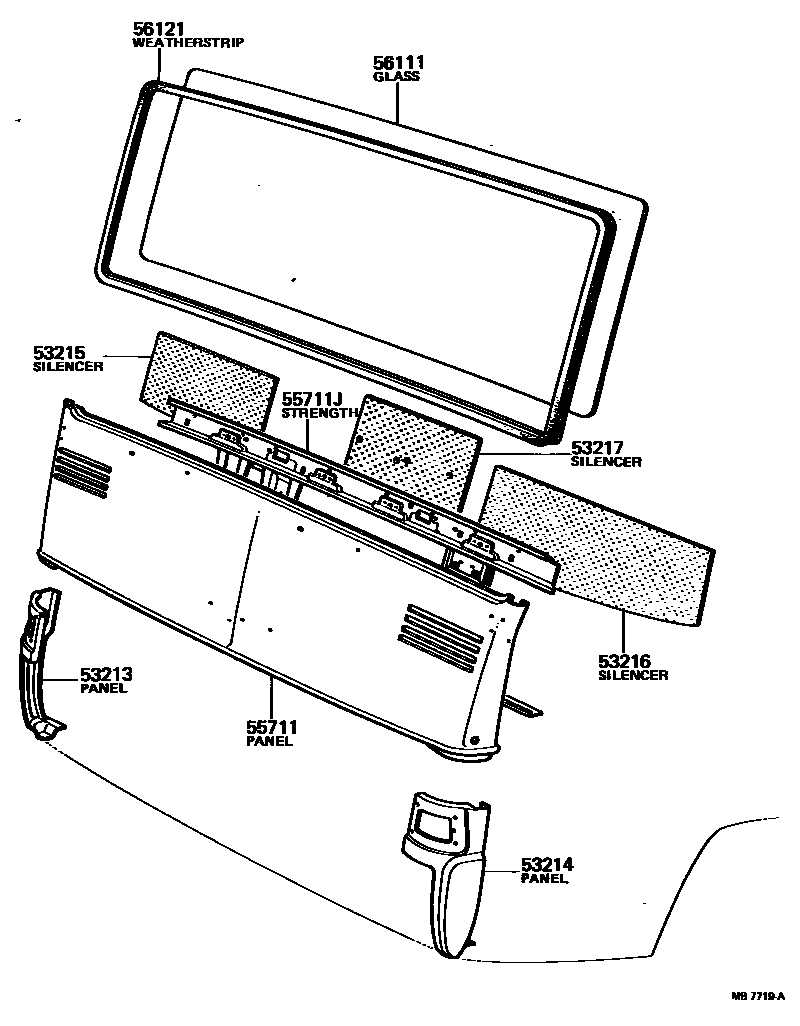

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS

53213PANEL, FRONT UNDER, RH

main53213-90500i197708-198204

main53213-90501i197708-198204

53214PANEL, FRONT UNDER, LH

main53214-90500i197708-198204

main53214-90501i197708-198204

53215SILENCER, FRONT PANEL, RH

main53217-90501i197708-198204

main53217-90502i197708-198204

53216SILENCER, FRONT PANEL, LH

main53218-90501i197708-198204

main53218-90502i197708-198204

53217SILENCER, FRONT PANEL, CENTER

main53252-90500i197708-198204

W/O HEATER

main53252-90501i197708-198204

W/O HEATER

55711PANEL, COWL TOP, OUTER

main53211-90741i197708-198204

main53211-90742i197708-198204

55711JSTRENGTH SUB-ASSY, FRONT PANEL

main53302-90740i197708-197911

main53302-90741i197708-197911

main53302-90743i197911-198204

main53302-90744i197911-198204

56111GLASS, WINDSHIELD

main56111-90740i197708-198204

main56111-90741i197708-198204

main56111-90742i197708-198204

56121WEATHERSTRIP, WINDSHIELD

main56121-90740i197708-197808

main56121-90741i197808-198204

9 parts on this diagram · 1 diagram in section

FRONT PANEL & WINDSHIELD GLASS for Toyota COASTER

This section contains 9 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota COASTER. Key components include: PANEL, FRONT UNDER, RH, PANEL, FRONT UNDER, LH, SILENCER, FRONT PANEL, RH, SILENCER, FRONT PANEL, LH, SILENCER, FRONT PANEL, CENTER.
