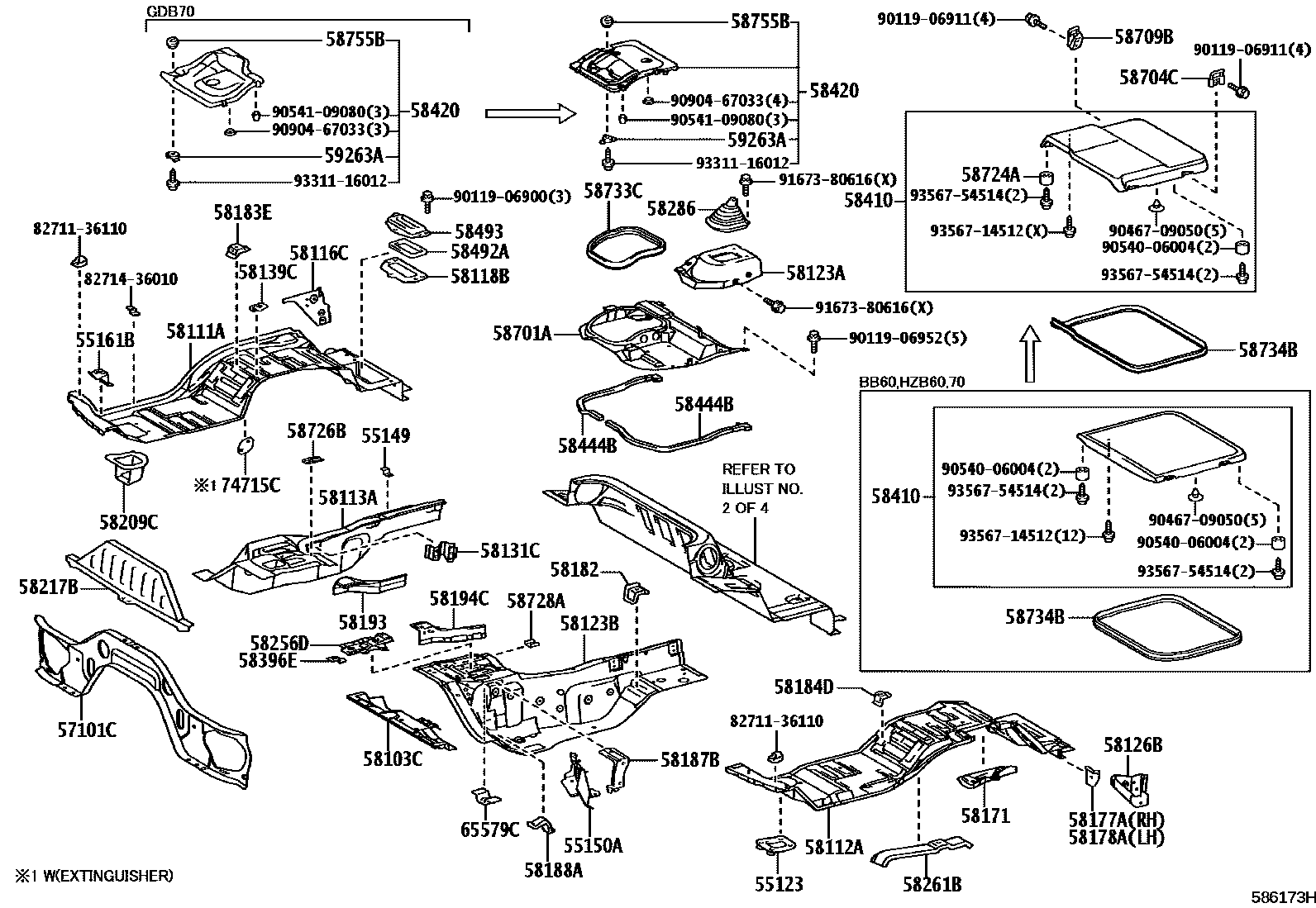

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1FOOT REST 0007 1FOOT REST

55123REINFORCEMENT, STEERING SUPPORT

main55123-36020iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

55149BRACKET, DASH WIRING HARNESS

main55149-36010iBB60201701-201907

55150ABRACKET ASSY, PEDAL

main55150-V4010iTRB70..WC..GEN;XZB70..LHD..(23S,29S)..WC;GDB70,TRB60,70..LHD..(6F,6FC)202501

55161BBRACKET, HEATER MOUNTING, RH

main55161-36040iGDB70..BTN202201-202312

EXTINGUISHER-WITH&FRONT HEATER-MANUAL 120W

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-36080iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-36010iXZB70..RHD..23S..GEN202501

main58103-36030iHZB70..23S..WOC202201-202312

main58103-V4010iGDB70..BTN202201-202312

main58103-V4020iGDB70..LHD202201

58111APAN, FRONT FLOOR, RH

main58111-36270iGDB70,XZB70..SA;GDB60,HZB60,70,XZB70..RHD..(25S,26S,29S,30S)..WC202201

main58111-36280iBZB70;XZB70..4FC..STD..GEN201701-202012

main58111-36300supersedes 58111-36280iXZB70..RHD..29S;GDB60,70,HZB60,70..RHD..(20S,25S,26S,30S)..(DX,STD)..WC202201-202501

CENTER DOOR-FOLDING(AUTO)

main58111-36320iHZB70..19S;XZB70..TAIW201701

FRONT HEATER-MANUAL 120W

main58111-V4080iGDB70..DX..GEN202501

CENTER DOOR-FOLDING(AUTO)

main58111-36290supersedes 58111-36260iHZB60..RHD..WOC202201-202501

CENTER DOOR-FOLDING(AUTO)

main58111-36310supersedes 58111-36320iTRB70..WOC202201-202412

EXTINGUISHER-WITH&FRONT HEATER-MANUAL 120W

main58111-36330supersedes 58111-36340iHZB70..23S..WC..GEN202101-202201

EXTINGUISHER-WITH&EGYPT SPEC

main58111-V4090supersedes 58111-36260iGDB60,HZB60..RHD..WOC202501

CENTER DOOR-FOLDING(AUTO)

58112APANEL, FRONT FLOOR, LH

main58112-36250iXZB70..22S..GEN202401-202412

main58112-36270iXZB80..5F,6FC;XZB70..20S..5F201701-202201

FRONT HEATER-MANUAL 120W

main58112-36280supersedes 58112-36250iXZB70..SA202101-202201

main58112-36300iGDB70..ARL202201-202512

main58112-36310iHZB60,70..LHD..(23S,25S,26S,30S)..WC;TRB60,70,XZB70..LHD..(19S,20S,23S,29S,30S)..WC201701-202201

main58112-36320iHZB70..23S..WOC202201-202312

main58112-36260supersedes 58112-36250iXZB70..RHD..23S..GEN202501

EXTINGUISHER-WITH

58113APANEL, FRONT FLOOR, CENTER

main58113-36170iHZB60,70,TRB60,70,XZB70..LHD201701-202104

main58113-36180iXZB70..6FC..ARL;XZB70..(5F,6FC)..EX;HZB60,70,XZB70,80..RHD..(01S,22S,23S,26S,29S,30S)..(5F,6FC)..(GEN,SA)201701-202103

main58113-36190iBZB60,70,XZB60201701-201711

main58113-36191iBZB70;XZB70..4FC..STD..GEN201712-202012

sub58113-V4060

main58113-V4010supersedes 58113-V4020iGDB70..20S..STD202201-202512

CENTER DOOR-FOLDING(AUTO)

main58113-V4030iGDB70..LHD202201

main58113-V4040iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)202104-202201

main58113-V4050supersedes 58113-V4060iXZB70..20S..5F..STD202103-202201

CENTER DOOR-FOLDING(AUTO)

58116CPANEL, FRONT FLOOR REAR UPPER SIDE, RH

main58116-36040iBB60..RHD201701-201907

main58116-36050iBB60,HZB70,TRB60,70,XZB60,70..LHD201701-201907

main58116-36051iXZB70..23S..GCC202501

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-36010iTRB60,70..GCC202201-202303

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-36110iHZB60..LHD;HZB70..30S..WOC;HZB70..LHD..(23S,25S,30S)..WC202201-202403

main58123-36340iTRB70..GEN;XZB70..LHD..(19S,23S,29S)..WC202201-202403

main58123-V4180iHZB70..23S..GCC202404-202412

main58123-V4190iXZB70..23S..GCC202501

58123BPANEL, FRONT FLOOR, CENTER LH

main58123-36240iXZB70..(5F,6FC)..EX;HZB60,70,XZB70,80..RHD..(01S,22S,23S,26S,29S,30S)..(5F,6FC)..(GEN,SA)201701-202103

main58123-36250iXZB70..ARL201701-202012

main58123-36260iBZB70201701-202012

sub58123-V4100

sub58441-V4070

main58123-36270iXZB70..4FC..STD..GEN201701-202012

main58123-36280iBZB60201701-201712

sub58123-V4110

sub58441-V4070

main58123-36310supersedes 58123-36290iHZB60,70,TRB60,70..LHD..GEN201701-202104

CENTER DOOR-FOLDING(AUTO)

main58123-36320supersedes 58123-36300iXZB70..LHD..GEN201701-202104

CENTER DOOR-FOLDING(AUTO)

main58123-V4020iXZB70..5F..EX;HZB60,70,XZB70,80..RHD..(01S,22S,23S,26S,29S,30S)..(GEN,SA)202103-202201

main58123-V4030iGDB70..ARL202201-202512

main58123-V4040iXZB70..6FC..STD..GEN202103

main58123-V4070supersedes 58123-V4050iTRB60,70..GCC;HZB70..23S..GCC202104-202201

CENTER DOOR-FOLDING(AUTO)

main58123-V4080supersedes 58123-V4060iXZB70..GCC202201-202412

main58123-V4140supersedes 58123-V4120iTRB60,70..6F202501

CENTER DOOR-FOLDING(AUTO)

main58123-V4150supersedes 58123-V4130iXZB70..LHD..DX..GEN202501

CENTER DOOR-FOLDING(AUTO)

58126BPANEL, FRONT FLOOR REAR UPPER SIDE, LH

main58126-36020iBZB60,XZB60201701-201712

main58126-36030iBB60,XZB60..LHD201701-201907

58131CBRACKET, RESERVE TANK SERVICE HOLE COVER

main58131-36010iTRB70..WOC202201-202412

58139CBRACKET, HARNESS CLAMP

main58396-47010iGDB70..TAIW202501

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36040iXZB70..6FC201701

main58107-36050iHZB70..23S..WOC202201-202312

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-36010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-36010iBB60,XZB60..20S,26S201701-201907

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-36030iTRB70..WOC202201-202501

main58182-36050iGDB70..DX..GEN202201-202401

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36030iBB60,XZB60..20S,26S201701-201907

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36030iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

58187BBRACKET, ACCELERATOR PEDAL ROD

main58187-36020iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36010iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201701-202201

main58188-36020iBB60..LHD201701-201907

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36040iBZB60,XZB60201701-201712

main58193-36060iHZB70..23S..WOC202201-202312

58194CBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH

main58193-36050iBZB60,XZB60201701-201712

main58193-36070iHZB70..23S..WOC202201-202312

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iBZB60,XZB60201701-201712

58217BPLATE, FRONT FLOOR

main58217-36030iBB60,XZB60..20S,26S201701-201907

58256DBRACKET, FRONT FLOOR HARNESS

main58256-36040iXZB70..SA;GDB70..DX..(GEN,SA);GDB60,HZB60,70,XZB70..RHD..(25S,26S,29S,30S)202201

main58256-36050iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201

58261BREINFORCEMENT, FRONT SEAT, FRONT LH

main58261-36010iTRB70..WOC;XZB70..GCC;HZB70..23S..GCC202201-202412

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-36010iBZB60,XZB60201701-201712

main58280-V4010iTRB60,70..6F202501

58396EBRACKET, WIRE HARNESS CLAMP

main58396-47010iTRB60,70..GCC202201-202303

58410COVER, ENGINE SERVICE HOLE

main58410-36120-B0iBZB60,XZB60201701-201712

MD.GRAY,TRIM1#

main58410-36130-B0iHZB70..23S..WOC202201-202312

MD.GRAY,TRIM1#

main58410-V4010-B0iGDB70..BTN202201-202312

MD.GRAY,TRIM1#

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-36140iXZB70..22S..GEN202401-202412

main58420-36160iTRB60,70..GCC202201-202303

main58420-36170iBB60..RHD201701-201907

main58420-36180iHZB70..23S..WOC202201-202312

main58420-V4010iGDB60;GDB70..DX..(GEN,SA)202201

main58420-V4020iGDB70..LHD..(GCC,GEN)202201

main58420-V4030iGDB70..TAIW202201

58444BPACKING, ENGINE SUB COVER

main58444-36050×2iTRB70..WOC;XZB70..GCC;HZB70..23S..GCC202201-202412

58492APACKING, RELAY BLOCK HOLE COVER

main58492-36010iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

58493RETAINER, ENGINE COVER, NO.3

main58493-36010-B2iBB60,XZB60..20S,26S201701-201907

MD.GRAY,TRIM1#

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-36080iHZB60,70..RHD201701-202201

main58701-36110iBB60..LHD201701-201907

main58701-36280iXZB70..22S..GEN202401-202412

main58701-36290iBZB60201701-201712

main58701-36300iXZB70,80..4FC201701-202012

main58701-36310iTRB60,XZB70..(02S,23S,25S,26S,30S)..STD..(GEN,TAIW)201701

main58701-V4010iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main58701-V4020iGDB70..LHD202201

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-36041×2iBZB60,XZB60201701-201712

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36031×2iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

58724ACUSHION, ENGINE SERVICE COVER, NO.2

main58724-90B00×2iTRB60,70..GCC202201-202303

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iBZB60,XZB60201701-201712

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iHZB60,70,TRB60,70,XZB70,80201701-202011

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-36070iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main58733-36110iBB60..RHD201701-201907

main58733-36120iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main58733-V4010iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-36100iXZB70..6FC;TRB60,XZB70..(02S,23S,25S,26S,30S)..STD..(GEN,TAIW)201701

main58734-36110iHZB70..23S..GCC202201-202412

main58734-V4010iGDB70..BTN202201-202312

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iXZB70..22S..GEN202401-202412

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

65579CBRACKET, SIDE PANEL FRAME

main65579-36010iGDB60;XZB70..SA;XZB70..29S;XZB70..LHD..DX..GEN;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

74715CRETAINER, EXTINGUISHER, NO.1

main74716-90K00×2iHZB70..23S..WC..GEN202101-202201

EXTINGUISHER-WITH&EGYPT SPEC

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

8271436010

main82714-36010

9011906900

main90119-06900

9011906911

main90119-06911

9011906952

main90119-06952

9046709050

main90467-09050

9054006004

main90540-06004

9054109080

main90541-09080

9090467033

main90904-67033

9167380616

main91673-80616

9331116012

main93311-16012

9356714512

main93567-14512

9356754514

main93567-54514

62 parts on this diagram · 7 diagrams in section
