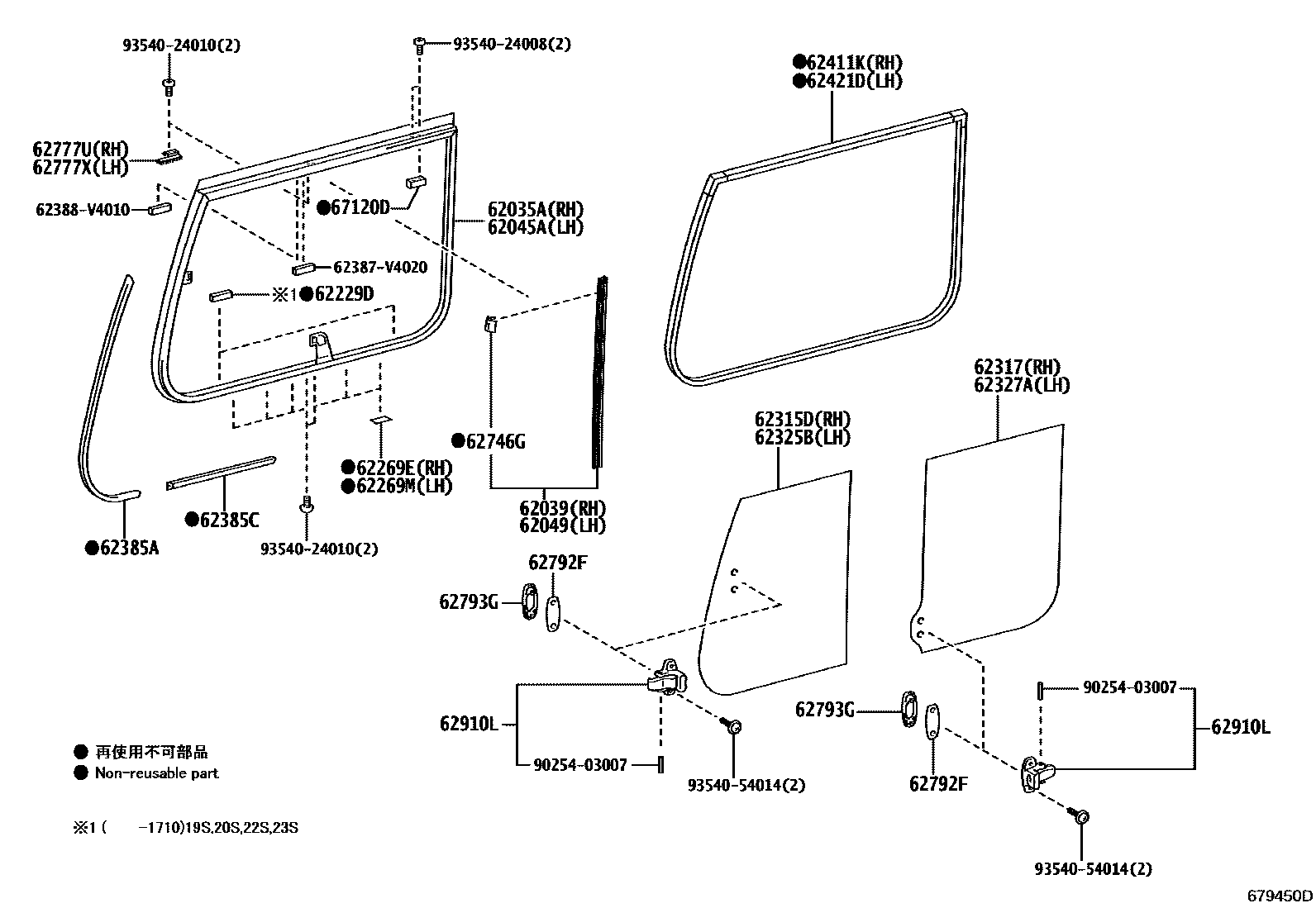

Toyota COASTER — FRONT DOOR PANEL & GLASS

0001 1DOOR WINDOW 0002 1DOOR PANEL 0003 1DOOR TRIM

62035AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH

main62035-36070iBZB60,XZB60201701-202512

main62035-36080iXZB70..STD..ARL;XZB70,80..4FC..(DX,EX)201701-202401

main62035-36080iGDB70..20S..STD;XZB70..20S..5F..STD202201-202512

SIDE GLASS-FIXED TYPE(GREEN) & DRIVER SASH(BLACK)

62039FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH

main62039-36040iXZB70..RHD..23S..GEN201701-202512

main62039-36050iXZB70..6FC..EX;XZB70..6FC..ARL201701-202401

main62039-36050iGDB70..ARL;XZB70..5F..EX;GDB70,XZB80..EX202201-202512

SIDE GLASS-FIXED TYPE(GREEN) & DRIVER SASH(BLACK)

62045AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH

main62045-36080iTRB60,XZB70..(02S,23S,25S,26S,30S)..STD..(GEN,TAIW)201701-202412

main62045-36080iHZB60,70,TRB70..LHD..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202201

2 DOOR BUS(FOR EL SALVADOR)

main62045-36090iHZB70,XZB70..LHD..DX..GEN202201

FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY)

main62045-36090iXZB70..23S..GCC201701-202412

main62045-36090iGDB70,TRB60,70..(6F,6FC)..GCC202201

HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)

62049FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH

main62049-36060iHZB70..30S..WOC;HZB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB60,TRB70..LHD..(02S,23S,26S,30S)..(GEN,TAIW)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

main62049-36060iBB60..LHD201701-202412

main62049-36070iTRB60,70..GCC201701-202412

main62049-36070iGDB70,TRB60,70..(6F,6FC)..GCC202201

HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)

main62049-36070iGDB70,TRB60,70..(6F,6FC)..GCC202201

FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY)

62229DPACKING, FRONT DOOR WINDOW

main62229-95J00iHZB70,TRB60,70,XZB70..19S,20S,22S,23S201701-201710

62269EFILM, FRONT DOOR WINDOW FRAME, RH

main62269-90K01iBZB60,XZB60201701-202512

62269MFILM, FRONT DOOR WINDOW FRAME, LH

main62269-90K01iBB60,XZB60..LHD201701-202412

main62269-90K01iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62315DGLASS, FRONT DOOR WINDOW, FRONT RH

main62315-36070iBZB60,XZB60201701-202512

62317GLASS, FRONT DOOR WINDOW, REAR RH

main62317-36070iBZB60,XZB60201701-202512

62325BGLASS, FRONT DOOR WINDOW, FRONT LH

main62325-36070iBB60,XZB60..LHD201701-202412

main62325-36070iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62327AGLASS, FRONT DOOR WINDOW, REAR LH

main62327-36070iHZB70..LHD..30S201701-202201

2 DOOR BUS(FOR EL SALVADOR)

main62327-36070iXZB70..23S..GCC201701-202412

62385ASEAL, FRONT DOOR WINDOW, NO.1

main62385-36040iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201701-202512

main62385-36040iHZB70..LHD..30S201701-201703

2 DOOR BUS(FOR EL SALVADOR)

main62386-36040iTRB60,70..GCC201703-202412

main62386-36040iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201703-202201

2 DOOR BUS(FOR EL SALVADOR)

62385CSEAL, SIDE WINDOW, NO.1

main62385-36050iBZB60,XZB60201701-202512

main62385-36050iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62411KRUN, FRONT DOOR WINDOW, RH

main62411-36040iBZB60,XZB60201701-202512

62421DRUN, FRONT DOOR WINDOW, LH

main62421-36050iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202201

2 DOOR BUS(FOR EL SALVADOR)

main62421-36050iBB60,XZB60..LHD201701-202412

62746GPACKING, QUARTER WINDOW

main62746-36010iBZB60,XZB60201701-202512

main62746-36010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62777UCAP, FRONT DOOR WINDOW CENTER SASH, RH

main62777-36030iBZB60,XZB60201701-202512

62777XCAP, FRONT DOOR WINDOW CENTER SASH, LH

main62777-36040iBB60,XZB60..LHD201701-202412

main62777-36040iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62792FPACKING, SIDE WINDOW LOCK

main62792-95A00iBZB60,XZB60201701-202512

main62792-95A00iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62793GRETAINER, SIDE WINDOW LOCK

main62793-95J00iBZB60,XZB60201701-202512

main62793-95J00iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

62910LLOCK ASSY, SIDE WINDOW

main62910-36010iBB60,XZB60..20S,26S201701-202512

main62910-36010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

67120DSTOPPER, FRONT DOOR WINDOW

main62391-36010iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202201

2 DOOR BUS(FOR EL SALVADOR)

main62391-36010iBZB60,XZB60201701-202512

62387V4020MOULDING, REAR WHEEL HOUSE TRIM

main62387-V4020

62388V4010SEAL, SIDE WINDOW, NO.4

main62388-V4010

9025403007

main90254-03007

9354024008

main93540-24008

9354024010

main93540-24010

9354054014

main93540-54014

28 parts on this diagram · 3 diagrams in section
