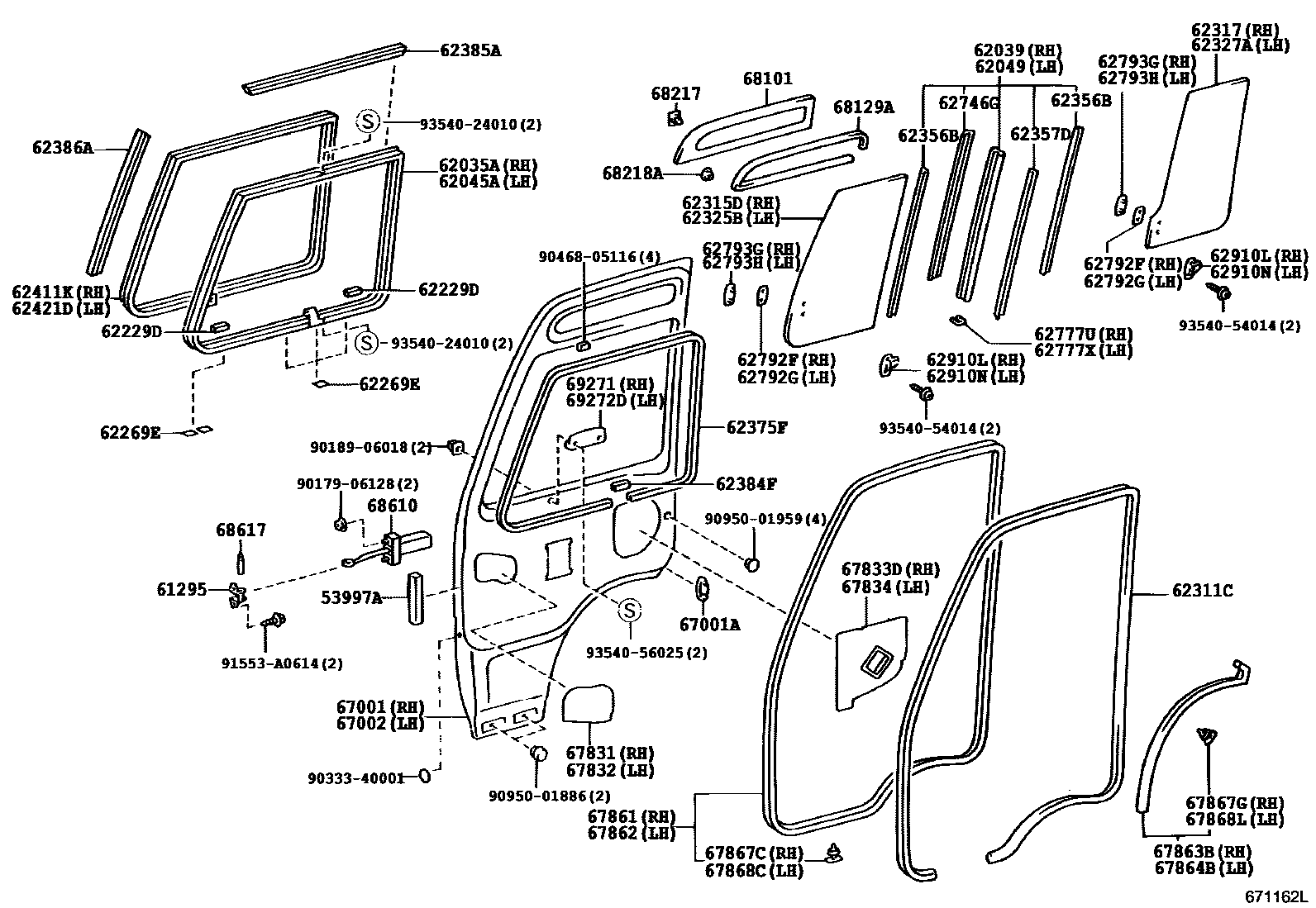

Toyota COASTER — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE TABLE 0004 1TRIM CODE TABLE 0005 1TRIM CODE TABLE 0006 1TRIM CODE TABLE

53997APACKING, AIR CLEANER INLET

main53997-36010iBB42..WC..GCC;BB42..LHD..26S..GEN;HZB50..RHD..HRF..STD..WC..GEN..5F199301-201501

61295BRACKET, FRONT DOOR CHECK ARM

main61295-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

62035AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH

main62035-36010iBB4#,HZB50..RHD..(DX,STD)..DSL199301-199308

main62035-36020iHZB50..RHD..EX199301-199308

main62035-36030iBB4#,HZB50..RHD..(DX,STD)..CBU199308-199902

main62035-36031iBB4#,HZB50..RHD..(DX,STD)199902-200408

main62035-36031iBB50..RHD..(DX,STD)..CBU200408-201501

SILVER

main62035-36040iBB50,HZB50..RHD..EX199308-199902

main62035-36041iBB50..20S,21S;BB59,BZB50..EX200408-201501

BLACK

main62035-36041iBB50,HZB50..RHD..EX199902-200408

W(SLIDE GLASS)

62039FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH

main62039-36010iBB4#,HZB50..RHD..(DX,STD)..CBU199301-199902

main62039-36011iBB4#,HZB50..RHD..(DX,STD)199902-200005

sub62039-36012

main62039-36012iXZB50..WOC..CBU200408-201501

SILVER

main62039-36012iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200005-200408

main62039-36020iBB50,HZB50..RHD..EX199301-199902

main62039-36021iBB50,HZB50..RHD..EX199902-200005

sub62039-36022

main62039-36022iBB50..20S,21S;BB59,BZB50..EX200408-201501

BLACK

main62039-36022iBB59,BZB50..EX;BB50..(20S,21S)..TDEFI200005-200408

W(SLIDE GLASS)

62045AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH

main62045-36010iBB42,HZB50..LHD..STD..DSL199301-199308

main62045-36020iHZB50..LHD..EX199301-199308

main62045-36030iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199308-199902

main62045-36030iRZB40..EX199505-199902

SILVER

main62045-36031iRZB40..HRF..GCC199902-201501

SILVER

main62045-36040iBB50..STD..CBU;HZB50,RZB40..LHD..EX199308-199902

BLACK

main62045-36041iBB50..STD..CBU;HZB50,RZB40..LHD..EX199902-200608

BLACK

62049FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH

main62049-36010iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-199902

SILVER

main62049-36011iBB42,58,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)199902-200005

SILVER

sub62049-36012

main62049-36012iBB42,HZB50,TRB40,50,XZB40,50..LHD200005-201501

SILVER

main62049-36020iBB50..STD..CBU;HZB50,RZB40..LHD..EX199301-199902

BLACK

main62049-36021iBB50,HZB50,RZB40..LHD..(17S,19S,20S)199902-200005

BLACK

sub62049-36022

main62049-36022iBB50,RZB40,50..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN)200005-200608

BLACK

62229DPACKING, FRONT DOOR WINDOW

main62229-95J00iXZB59;XZB50..RHD..(20S,21S)..WC199301-201501

62269EFILM, FRONT DOOR WINDOW FRAME, RH

main62269-90K01iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,199301-201501

62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-36010-A0iBB50..CBU..6F;BB50,HZB50..EX199705-200108

IVORY,TRIM4#

sub62311-36010

main62311-36010-B0iBB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI200108-201612

MD.CHARCOAL,TRIM1#

sub62311-36010

62315DGLASS, FRONT DOOR WINDOW, FRONT RH

main62315-36010iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199301-199705

*TEM,T=5.0

sub62315-36050

main62315-36020iBB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL199301-199705

*TT,T=5.0,BLUE

sub62315-36050

main62315-36030iHZB50..RHD..EX..(ARL,GEN)199301-199705

*TEM,T=5.0,BRONZE

sub62315-36060

main62315-36050iBB59,BZB50..EX;BB50..RHD..CBU199705-201501

*TT,T=5.0,GREEN

main62315-36060iHZB50..RHD..EX199705-200108

*TEM,T=5.0,BRONZ

62317GLASS, FRONT DOOR WINDOW, REAR RH

main62317-36010iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199301-199705

*TEM,T=5.0

sub62317-36050

main62317-36020iBB40..WC;BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S,30S)..WC199301-199705

*TT,T=5.0,BLUE

sub62317-36050

main62317-36030iHZB50..RHD..EX..(ARL,GEN)199301-199705

*TEM,T=5.0,BRONZE

sub62317-36060

main62317-36050iHZB50..ARL199705-201501

*TT,T=5.0,GREEN

main62317-36050iBB42,BZB40,50,HZB50,XZB40,5#..RHD201501

main62317-36060iHZB50..RHD..EX199705-200108

*TEM,T=5.0,BRONZ

62325BGLASS, FRONT DOOR WINDOW, FRONT LH

main62325-36010iRZB50..SRF..GEN;HZB50..30S..GEN..4FC;BB42,HZB50,RZB40..LHD..WOC..CBU199301-199705

*TEM,T=5.0

sub62325-36040

main62325-36020iBB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)199301-199705

*TT,T=5.0,BLUE

sub62325-36040

main62325-36030iHZB50,RZB40..LHD..EX199301-199705

*TEM,T=5.0,BRONZE

sub62325-36050

main62325-36040iRZB50;RZB40..GEN;RZB40..SRF..GCC199705-201501

*TT,T=5.0,GREEN

main62325-36040iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

main62325-36050iBB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)199705-200108

*TEM,T=5.0,BRONZE

62327AGLASS, FRONT DOOR WINDOW, REAR LH

main62327-36010iRZB50..SRF..GEN;HZB50..30S..GEN..4FC;BB42,HZB50,RZB40..LHD..WOC..CBU199301-199705

*TEM,T=5.0

sub62327-36040

main62327-36020iBB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)199301-199705

*TT,T=5.0,BLUE

sub62327-36040

main62327-36030iHZB50,RZB40..LHD..EX199301-199705

*TEM,T=5.0,BRONZE

sub62327-36050

main62327-36040iRZB50;RZB40..GEN;RZB40..SRF..GCC199705-201501

*TT,T=5.0,GREEN

main62327-36040iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

main62327-36050iBB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)199705-200108

*TEM,T=5.0,BRONZE

62356BWEATHERSTRIP, FRONT DOOR WINDOW, CENTER

main62255-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

62357DWEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR

main62256-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199902

main62357-36011iBB4#,5#,HZB50,RZB40,50..CBU199902-201501

62375FCLIP, FRONT DOOR WINDOW

main62376-36010-A0iBB4#,HZB50..DSL199301-199505

IVORY,TRIM4#

sub62376-36010

main62376-36010-A1iBB4#,5#,HZB50,RZB40,50..CBU199505-200108

IVORY,TRIM4#

sub62376-36010

main62376-36010-A1iBB50,HZB50,RZB40,50..ARL,CHI200108-200408

IVORY,TRIM1#

sub62376-36010

main62376-36010-B0iBB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW200408-201612

MD.CHARCOAL,TRIM1#

sub62376-36010

62384FCAP,FRONT DOOR WINDOW

main62384-36010-A0iBB4#,HZB50..DSL199301-199505

IVORY,TRIM4#

sub62384-36010

main62384-36010-A1iBB4#,5#,HZB50,RZB40,50..CBU199505-200108

IVORY,TRIM4#

sub62384-36010

main62384-36010-B0iBB50,HZB50,RZB40,50..ARL,CHI200108-201612

MD.CHARCOAL,TRIM1#

sub62384-36010

62385ASEAL, FRONT DOOR WINDOW, NO.1

main62386-36010iXZB50..WOC..CBU199301-201501

62386ASEAL, FRONT DOOR WINDOW, NO.2

main62386-36010iBB50..CBU..6F;BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..EX199301-201501

62411KRUN, FRONT DOOR WINDOW, RH

main62411-36010iBB4#,HZB50..RHD..DSL199301-199308

main62411-36020iBB4#,50,HZB50..RHD..CBU199308-200005

sub62411-36021

main62411-36021iBB4#,50,59,BZB40,50,HZB50..RHD..(ARL,GEN)200005-201501

62421DRUN, FRONT DOOR WINDOW, LH

main62421-36010iBB42,HZB50..LHD..DSL199301-199308

main62421-36020iBB42,5#,HZB50,RZB40,50..LHD..CBU199308-200005

main62421-36030iBB42,HZB50,TRB40,50,XZB40,50..LHD200005-201501

62746GPACKING, QUARTER WINDOW

main62746-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199902-201501

main62746-90K00iBB4#,5#,HZB50,RZB40,50..CBU199301-199902

62777UCAP, FRONT DOOR WINDOW CENTER SASH, RH

main62777-36010iBB4#,50,HZB50..RHD..CBU199301-199902

sub62777-36012

main62777-36012iBB4#,50,HZB50..RHD..CBU199902-200005

main62777-36030iHZB50..ARL200005-201501

62777XCAP, FRONT DOOR WINDOW CENTER SASH, LH

main62777-36010iBB42,5#,HZB50,RZB40,50..LHD..CBU199301-199902

sub62777-36012

main62777-36012iBB42,5#,HZB50,RZB40,50..LHD..CBU199902-200005

main62777-36030iBB50,HZB50..RHD..EX200005-200408

main62777-36040iRZB50;RZB40..GEN;RZB40..SRF..GCC200005-201501

62792FPACKING, SIDE WINDOW LOCK

main62792-95A00iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

62792GPACKING, SIDE WINDOW LOCK

main62792-95A00iBB42,HZB50..LHD..STD..DSL199301-201501

62793GRETAINER, SIDE WINDOW LOCK

main62793-95J00iXZB50..STD..GEN199301-201501

62793HRETAINER, SIDE WINDOW LOCK

main62793-95J00iBB42,HZB50..LHD..STD..DSL199301-201501

62910LLOCK ASSY, SIDE WINDOW

main62910-95702iBB4#,HZB50,RZB40,50..CBU199301-201501

62910NLOCK ASSY, SIDE WINDOW

main62910-95702iBB42,HZB50..LHD..STD..DSL199301-201501

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-36050iXZB50..STD..GEN199301-200908

main67001-36060iBB50..EX..GEN199907-200908

W(DOOR TRIM POCKET & FRONT DOOR WINDOW = UPPER)

main67001-36060iBB50..EX;HZB50..SCO199301-200908

main67001-36070iHZB50..(DX,EX)..ARL199301-200908

main67001-36070iXZB50..DX..5F199907-200908

W(DOOR TRIM POCKET & FRONT DOOR WINDOW = UPPER & REFLEX REFLECTOR)

main67001-36100iBB42,HZB50..RHD..STD..GEN199301-200908

main67001-36110iHZB50..RHD..EX199907-200108

W(DOOR TRIM POCKET & FRONT DOOR WINDOW = UPPER)

main67001-36110iHZB50..RHD..EX..GEN199301-199907

main67001-36120iBB40,HZB50..(DX,STD)..ARL199301-199505

main67001-36130iBB50..EX;HZB50..SCO199301-200908

SINGAPORE PACKAGE

main67001-36130iBB50..EX..GEN..CBU199907-200908

W(FRONT DOOR WINDOW = UPPER)

main67001-36180iHZB50..STD..ARL199907-200908

W(DOOR TRIM POCKET & REFLEX REFLECTOR)

main67001-36180iBB40,HZB50..STD..ARL199505-199907

main67001-36190iHZB50..WC..GEN..4FC199505-199705

main67001-36220iBZB50..EX200211-200608

W(DOOR TRIM POCKET)

main67001-36230iBZB40,50,XZB40200908-201209

main67001-36240iXZB50..GEN200908-201501

W(DOOR TRIM POCKET & FRONT DOOR WINDOW = UPPER)

main67001-36250iXZB50..DX200908-201501

main67001-36260iBB42,HZB50..RHD200908-201501

main67001-36270iXZB50..GEN200908-201501

W(FRONT DOOR WINDOW = UPPER)

main67001-36300iXZB50..STD..ARL200908-201501

main67001-36320iBZB40,50,XZB40..HRF201209-201501

main67001-36330iXZB50..GEN201209-201501

67001ACUSHION, FRONT DOOR PANEL

main67887-36010iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,HZB50,RZB40..(17S,22S)..GEN199301-201501

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-36020iBB42,50,58,HZB50,RZB40,50..LHD..CBU199301-200908

main67002-36090iBB42..LHD..HRF200908-201501

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-36010iXZB50..STD..GEN199301-201501

main67831-36020iXZB5#..DX,EX200908-201501

W(DOOR CONTROL SWITCH)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-36010iHZB50..LHD..HRF..WC..GEN200908-201501

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-36010iBB4#,5#,HZB50,RZB40,50..(17S,22S,23S,26S,30S)..STD..(GCC,GEN)199301-200005

sub67833-36020

main67833-36020iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-36020iBB50..WC;HZB50..HRF..GCC200908-201501

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-36010iBB59,BZB50..EX;BB50..RHD..CBU199301-201501

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-36010iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-36010iBB4#,50,HZB50..RHD..CBU199301-201501

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-36010iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iBB42,BZB40,50,HZB50,XZB40,5#..RHD199505-201501

main67868-22020iBB4#,HZB50..RHD..DSL199301-199505

sub67867-12150

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199505-201501

main67868-22020iBB4#,HZB50..RHD..DSL199301-199505

sub67867-12150

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iBB42,58,HZB50,RZB40,50..LHD..CBU199505-201501

main67868-22020iBB42,HZB50,RZB40,50..LHD..CBU199301-199505

sub67867-12150

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-36010iHZB50..22S..4FC;HZB50..RHD..(DX,EX)199301-199705

*TEM,T=5.0,BRONZE

sub68111-36030

main68111-36030iBB50,HZB50..RHD..(DX,EX)199705-200108

*TEM,T=3.5,BRONZE

main68111-36040iHZB50..DX200108-201501

*TT,T=3.5,DK.GREEN

main68111-36040iXZB5#..DX,EX201501

68129ADAM, FRONT DOOR FIX WINDOW GLASS ADHESIVE

main68129-36010iXZB5#..DX,EX199301-201501

68217PIN, FRONT DOOR FIX WINDOW

main68217-36010iHZB50..22S..4FC;HZB50..RHD..(DX,EX)199301-200408

ORANGE

main68217-36010iBB50,59,BZB50..DX,EX200408-201501

BLACK

main68217-36020iXZB5#..DX,EX199301-201501

GRAY

68218ABUSH, FRONT DOOR FIX WINDOW

main68218-36010iBB50,59,BZB50..DX,EX199301-201501

68610CHECK ASSY, FRONT DOOR

main68610-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

main68620-36010iBB42,HZB50,RZB40,50..LHD..CBU199301-199310

sub68610-36010

68617PIN, FRONT DOOR CHECK

main68617-20011iBB4#,5#,HZB50,RZB40,50..CBU199301-200005

main68617-50010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200005-201501

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-36010-B0iBB50,HZB50,RZB40,50..ARL,CHI200108-201612

DK.CHARCOAL,TRIM1#

main69271-36010-E0iBB42..SCO199301-200108

GREIGE,TRIM4#

69272DHANDLE, FRONT DOOR INSIDE, LH

main69271-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD200108-201612

DK.CHARCOAL,TRIM1#

main69271-36010-E0iBB42,5#,HZB50,RZB40,50..LHD..CBU199301-200108

GREIGE,TRIM4#

9017906128

main90179-06128

9018906018

main90189-06018

9033340001

main90333-40001

9046805116

main90468-05116

9095001886

main90950-01886

9095001959

main90950-01959

91553A0614

main91553-A0614

9354024010

main93540-24010

9354054014

main93540-54014

9354056025

main93540-56025

63 parts on this diagram · 6 diagrams in section
