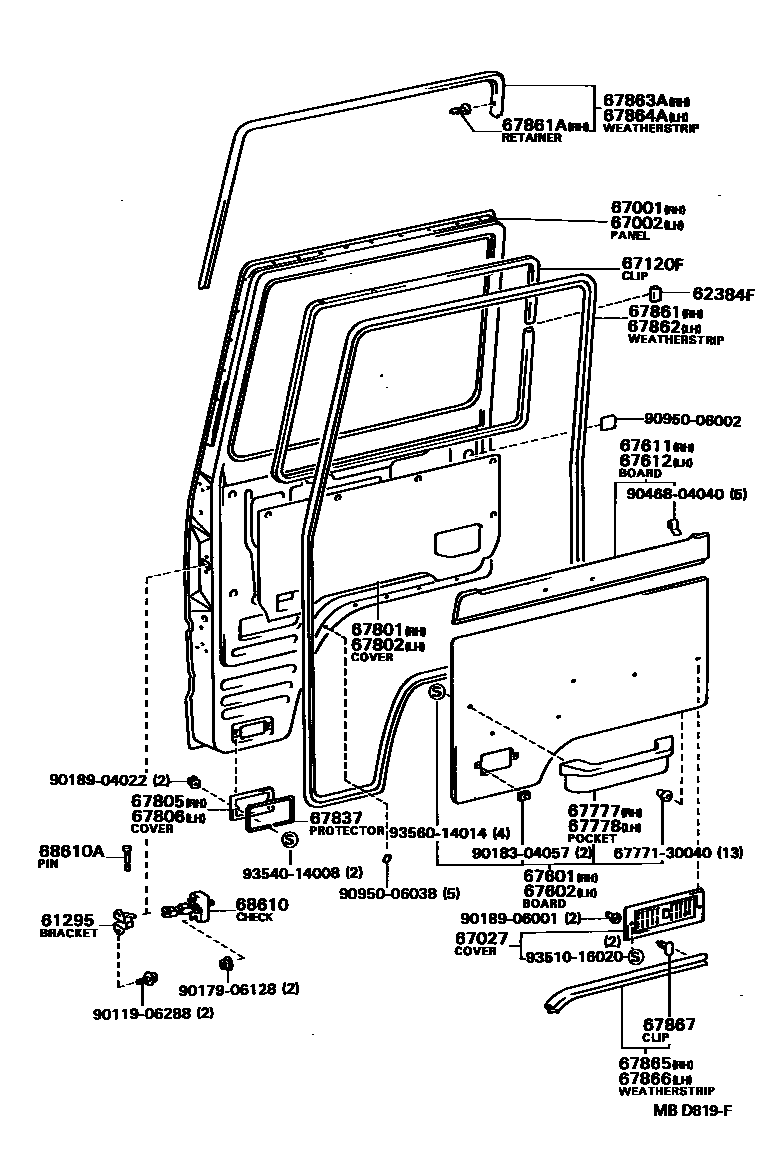

Toyota COASTER — FRONT DOOR PANEL & GLASS
61295BRACKET, FRONT DOOR CHECK ARM
62384FCAP,FRONT DOOR WINDOW
IVORY,IVORY
67001PANEL SUB-ASSY, FRONT DOOR, RH
HONG KONG SPEC
HONG KONG SPEC
67002PANEL SUB-ASSY, FRONT DOOR, LH
67027COVER SUB-ASSY, DOOR VENTILATING HOLE
DARK WINE,DARK WINE
SABLE,SABLE
SABLE
67120SASH ASSY, FRONT DOOR OUTER
HONG KONG PACKAGE 2 OR HONG KONG PACKAGE 3
67120FCLIP, FRONT DOOR WINDOW OUTER SASH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
HONG KONG PACKAGE 2,SABLE,SABLE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
DARK WINE,DARK WINE
SABLE,SABLE
SABLE,SABLE
BEIGE,GRAIGE
SABLE,SABLE
67611BOARD, FRONT DOOR TRIM, UPPER RH
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
HONG KONG PACKAGE 2,SABLE,SABLE
67612BOARD, FRONT DOOR TRIM, UPPER LH
DARK WINE,DARK WINE
SABLE,SABLE
SABLE,SABLE
67777POCKET, FRONT DOOR TRIM, RH
DARK WINE,RED/MAROON
SABLE,SABLE
67778POCKET, FRONT DOOR TRIM, LH
DARK WINE,RED/MAROON
SABLE,SABLE
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67805COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH
67806COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH
67837PROTECTOR, FRONT DOOR SERVICE HOLE COVER
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67863AWEATHERSTRIP, FRONT DOOR, UPPER RH
67864AWEATHERSTRIP, FRONT DOOR, UPPER, LH
67865WEATHERSTRIP, FRONT DOOR, LOWER RH
67866WEATHERSTRIP, FRONT DOOR LOWER, LH
67867CLIP, DOOR WEATHERSTRIP
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
6777130040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30040
9011906288
main90119-06288
9017906128
main90179-06128
9018304057
main90183-04057
9018904022
main90189-04022
9018906001
main90189-06001
9046804040
main90468-04040
9095006002
main90950-06002
9095006038
main90950-06038
9351016020
main93510-16020
9354014008
main93540-14008
9356014014
main93560-14014
40 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota COASTER
This section contains 74 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COASTER. Key components include: BRACKET, FRONT DOOR CHECK ARM, COVER, FRONT DOOR WINDOW, UPPER, COVER, FRONT DOOR WINDOW, LOWER, CAP,FRONT DOOR WINDOW, SEAL, FRONT DOOR WINDOW, NO.1.
