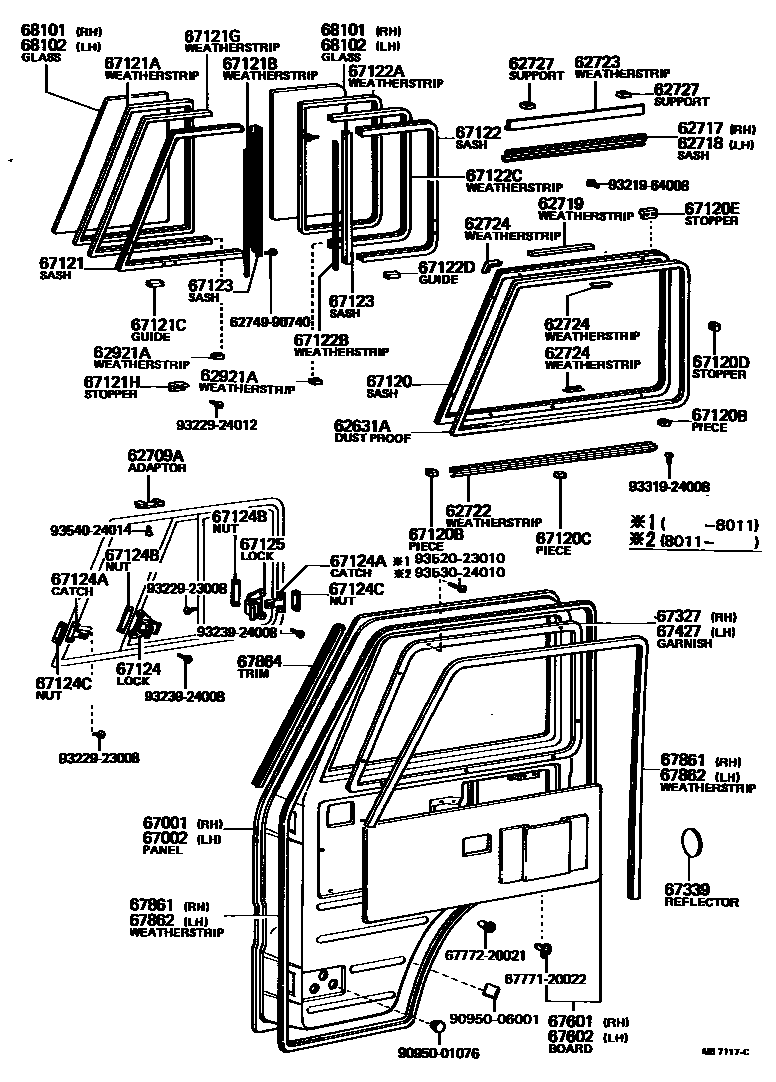

Toyota COASTER — FRONT DOOR PANEL & GLASS
62631ADUST PROOF, FRONT DOOR WINDOW
62709AADAPTER, FRONT DOOR WINDOW
62717SASH, FRONT DOOR WINDOW WATER PROOF, RH
62718SASH, FRONT DOOR WINDOW WATER PROOF, LH
62719WEATHERSTRIP, FRONT DOOR WINDOW, UPPER
62722WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF
62723WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF, UPPER
62724WEATHERSTRIP, WATER PROOF
UPR
LWR
62727SUPPORT, FRONT DOOR WINDOW, UPPER
62921AWEATHERSTRIP, RUN CHANNEL, LOWER
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67120SASH ASSY, FRONT DOOR OUTER
67120BPIECE, FRONT DOOR WINDOW WATER PROOF
67120CPIECE, FRONT WINDOW WATER PROOF
67120DSTOPPER, FRONT DOOR WINDOW
67120ESTOPPER, FRONT DOOR WINDOW, REAR
67121SASH, FRONT DOOR INNER, FRONT
67121AWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.1
67121BWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.2
67121CGUIDE, FRONT DOOR SASH
67121GWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.3
67121HSTOPPER, FRONT DOOR WINDOW
67122SASH, FRONT DOOR INNER, REAR
67122AWEATHERSTRIP, FRONT DOOR INNER, REAR NO.1
67122BWEATHERSTRIP, FRONT DOOR INNER, REAR NO.2
67122CWEATHERSTRIP, FRONT DOOR INNER, REAR NO.3
67122DGUIDE, FRONT DOOR SASH
67123SASH, FRONT DOOR WINDOW INNER, CENTER
67124LOCK, FRONT DOOR WINDOW, FRONT
67124ACATCH, FRONT DOOR LOCK
67124BNUT, PLATE, NO.1
67124CNUT, PLATE, NO.2
67125LOCK, FRONT DOOR WINDOW, REAR
67327GARNISH, FRONT DOOR WINDOW, RH
67339REFLECTOR, FRONT DOOR
67427GARNISH, FRONT DOOR WINDOW, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67861WEATHERSTRIP, FRONT DOOR, RH
BODY
DOOR
DOOR
67862WEATHERSTRIP, FRONT DOOR, LH
BODY
DOOR
DOOR
67864TRIM, FRONT DOOR PILLAR
68101GLASS SUB-ASSY, FRONT DOOR, RH
FR
FR
RR
RR
68102GLASS SUB-ASSY, FRONT DOOR, LH
FR
FR
RR
RR
6274990740RETAINER, QUARTER WINDOW LOCK STRIKER
main62749-90740
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9095001076
main90950-01076
9095006001
main90950-06001
9321964008
main93219-64008
9322923008
main93229-23008
9322924012
main93229-24012
9323924008
main93239-24008
9331924008
main93319-24008
9352023010
main93520-23010
9353024010
main93530-24010
9354024014
main93540-24014
57 parts on this diagram · 1 diagram in section
FRONT DOOR PANEL & GLASS for Toyota COASTER
This section contains 57 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COASTER. Key components include: DUST PROOF, FRONT DOOR WINDOW, ADAPTER, FRONT DOOR WINDOW, SASH, FRONT DOOR WINDOW WATER PROOF, RH, SASH, FRONT DOOR WINDOW WATER PROOF, LH, WEATHERSTRIP, FRONT DOOR WINDOW, UPPER.
