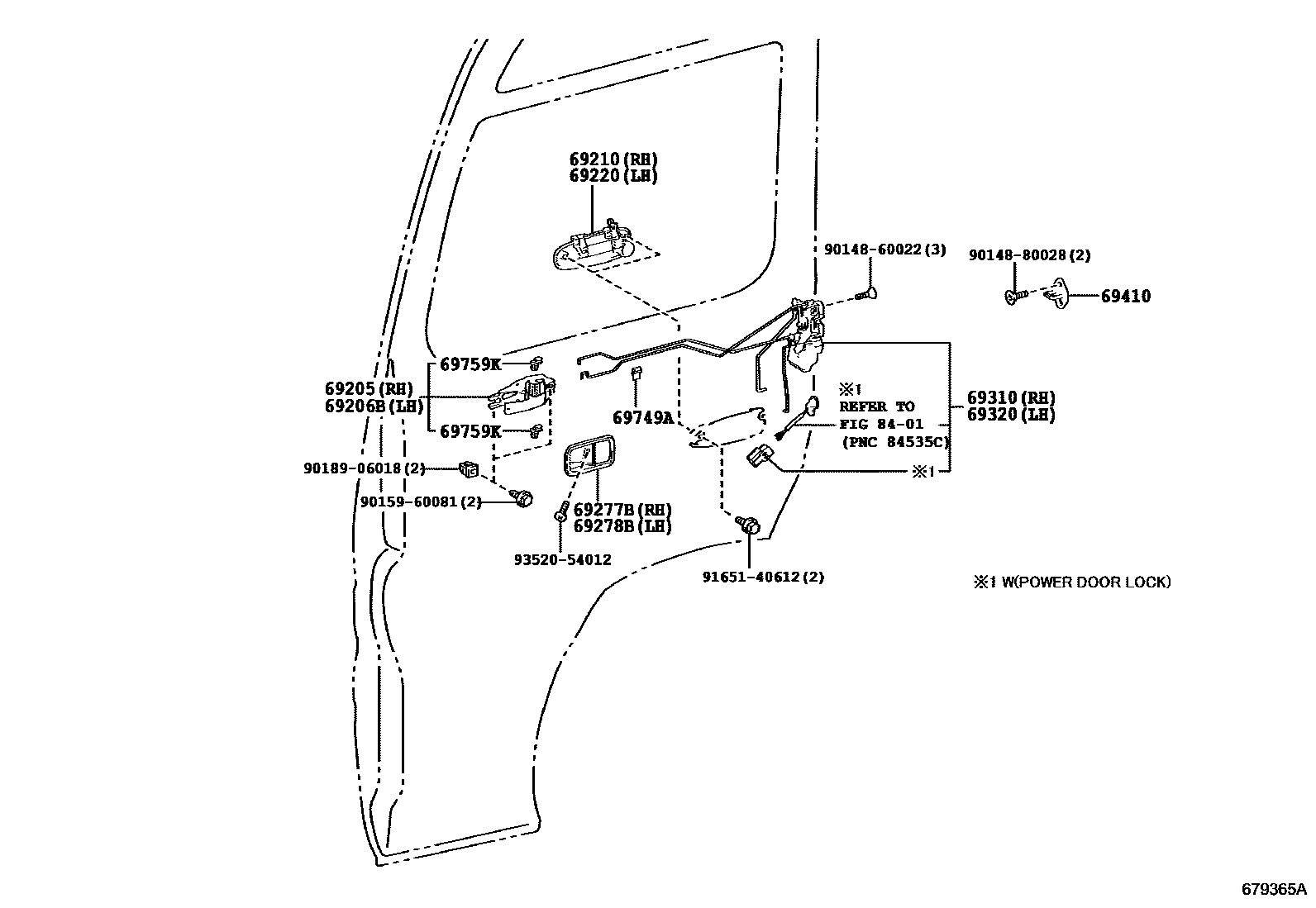

Toyota COASTER — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60040-B2iBB60..RHD201701-201907

MD.GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60040-B2iBB60,XZB60..LHD201701-201907

MD.GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-36010iBZB60,XZB60201701-201712

NO PAINT REQ.

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-36010iBB60,XZB60..LHD201701-201907

NO PAINT REQ.

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60010-B1iBZB60,XZB60201701-201712

MD.GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-B1iHZB70..23S..WOC202201-202312

MD.GRAY,TRIM1#

69310LOCK ASSY, FRONT DOOR, RH

main69030-36050iXZB70..5F..EX;GDB70..DX..ARL;GDB70,XZB80..EX202201-202512

main69310-36030iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

69320LOCK ASSY, FRONT DOOR, LH

main69320-36030iBB60,XZB60..LHD201701-201907

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iBZB60,XZB60201701-201712

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iBZB60,XZB60201701-201712

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-14050×2iBB60,XZB60..LHD201701-201907

main69759-24070×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

8401

9014860022

main90148-60022

9014880028

main90148-80028

9015960081

main90159-60081

9018906018

main90189-06018

9165140612

main91651-40612

9352054012

main93520-54012

18 parts on this diagram · 1 diagram in section
