Toyota COASTER — FRONT BUMPER & BUMPER STAY

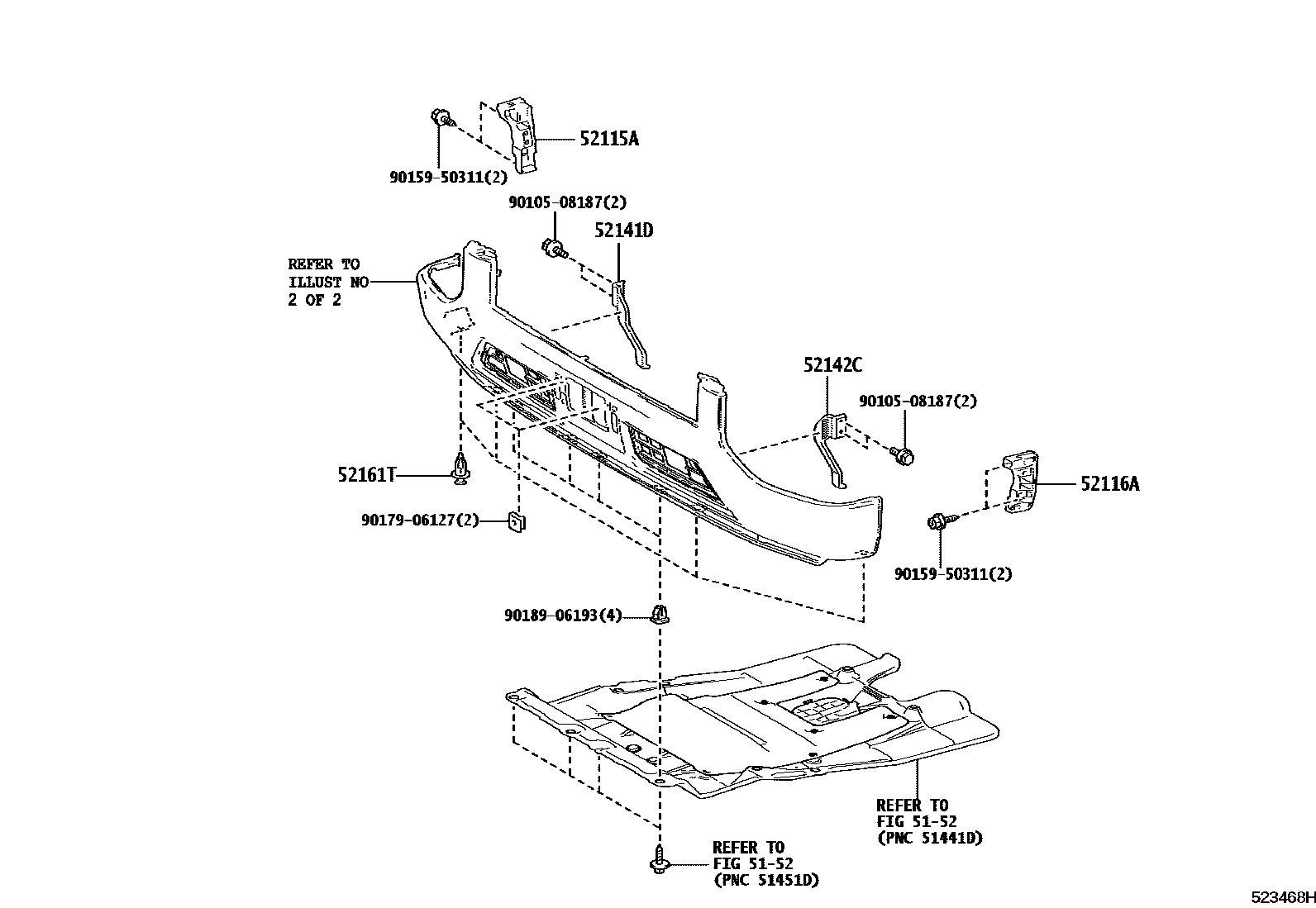

Parts diagram

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-36030i201701-202012

main52115-36040i202501

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-36030i202401-202412

main52116-36040i201701-201907

52141DSTAY, FRONT BUMPER, RH

main52141-36060i201701-201712

52142CSTAY, FRONT BUMPER, LH

main52142-36060i201701-201712

52161TPIECE, FRONT BUMPER

main52161-16010×4i201701-201712

9010508187

main90105-08187

9015950311

main90159-50311

9017906127

main90179-06127

9018906193

main90189-06193

10 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota COASTER

This section contains 19 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COASTER. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE.
