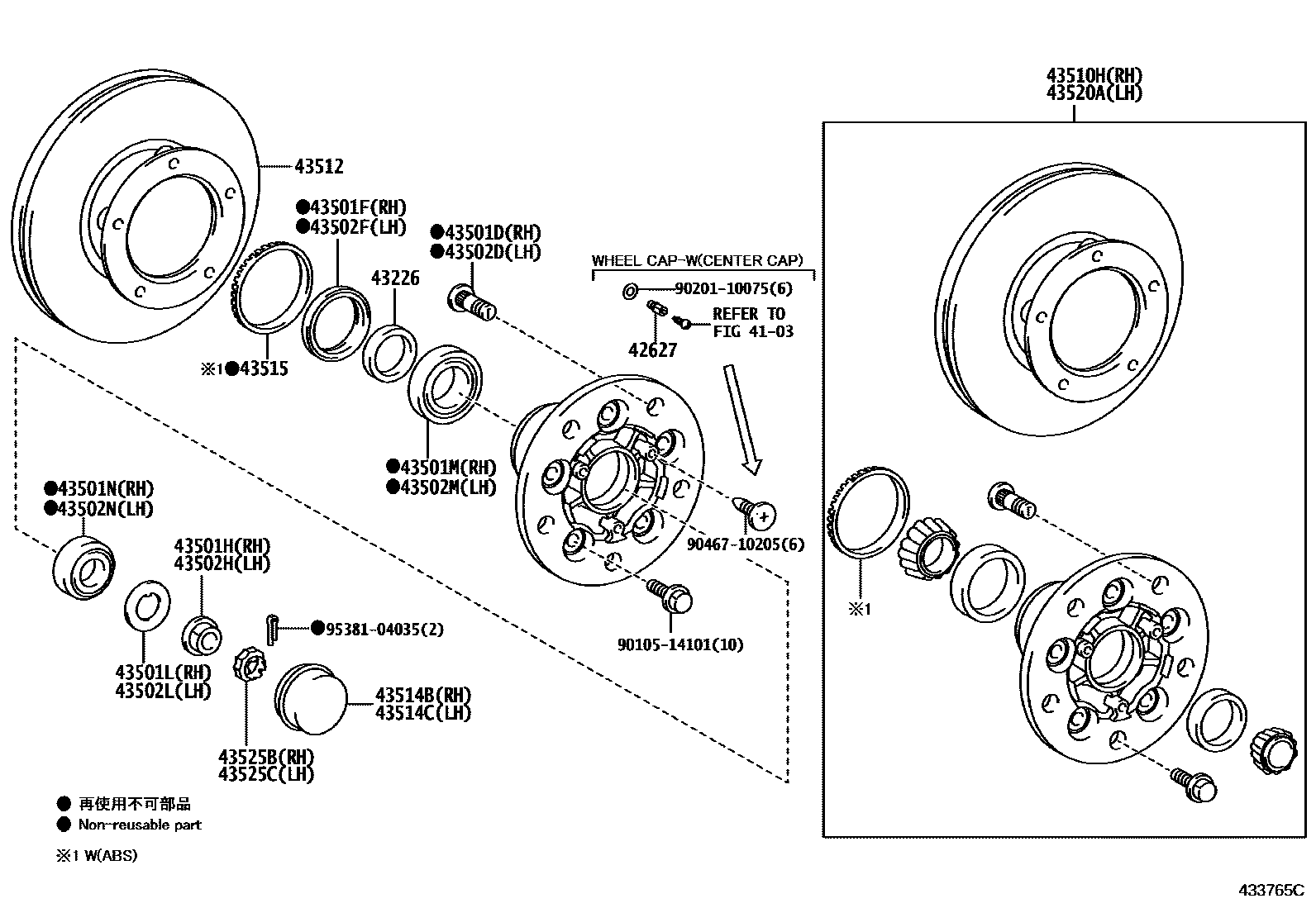

Toyota COASTER — FRONT AXLE HUB
4103DISC WHEEL & WHEEL CAP
42627BOLT, FRONT WHEEL CAP SET
WHEEL CAP-WITH(CENTER CAP)
43226SPACER, STEERING KNUCKLE
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02071iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
43512DISC, FRONT
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
main43512-36182iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
main43512-36182iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201
ABS-WITH(ABS & VSC)
ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
ABS-WITH(ABS & VSC)
ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-37010iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,201701-202512
9010514101
main90105-14101
9020110075
main90201-10075
9046710205
main90467-10205
9538104035
main95381-04035
29 parts on this diagram · 2 diagrams in section
FRONT AXLE HUB for Toyota COASTER
This section contains 31 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COASTER. Key components include: DISC WHEEL & WHEEL CAP, BOLT, FRONT WHEEL CAP SET, SPACER, STEERING KNUCKLE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, HUB (FOR FRONT AXLE RH).
