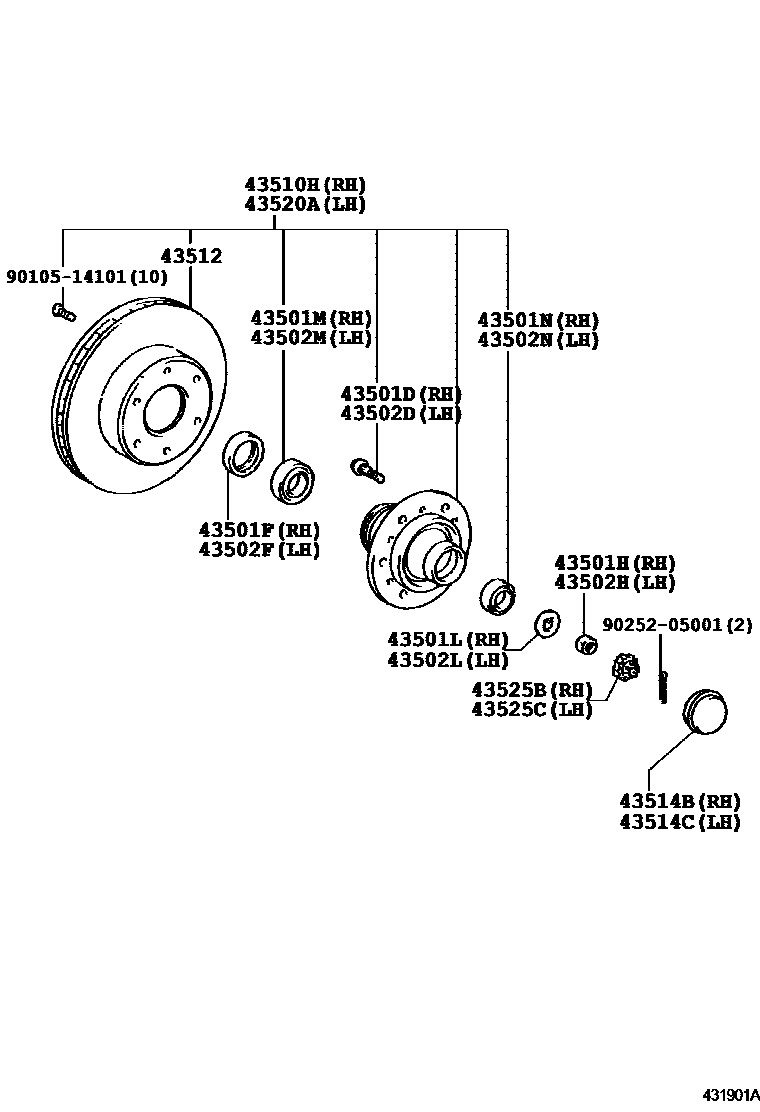

Toyota COASTER — FRONT AXLE HUB

0001 1DISC BRAKE 0002 1DRUM BRAKE 0003 1DISC BRAKE 0004 1DRUM BRAKE

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68001iBB4#,5#,HZB50,RZB40,50199301-199907

main90311-68002iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-26001iBB4#,5#,HZB50,RZB40,50199301-199907

main90178-28001iXZB50..WOC..CBU199907-201501

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-27001iBB4#,5#,HZB50,RZB40,50199301-199907

main90214-29001iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-201501

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199907-201501

main90368-42045iBB4#,5#,HZB50,RZB40,50199301-199907

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

main90368-28001iBB4#,5#,HZB50,RZB40,50199301-199907

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68001iBB4#,5#,HZB50,RZB40,50199301-199907

main90311-68002iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-26001iBB4#,5#,HZB50,RZB40,50199301-199907

main90178-28001iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-27001iBB4#,5#,HZB50,RZB40,50199301-199907

main90214-29001iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199907-201501

main90368-42045iBB4#,5#,HZB50,RZB40,50199301-199907

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-201501

main90368-28001iBB4#,5#,HZB50,RZB40,50199301-199907

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-39045iBB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO199301-199907

main43510-39085iBB50..STD..WC..IV..5F199907-200408

sub43510-39175

main43510-39175iRZB40..HRF..GCC200408-200808

sub43510-39176

main43510-39176iXZB50..TAIW200808-201501

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39055iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main43510-39065iBB50,HZB50..EUR199301-199907

main43510-39075iBB50..WC..CBU199705-199907

main43510-39095iRZB40;BB42,50,58,BZB50,HZB50,RZB50..(20S,21S,23S,26S,30S)..(GCC,GEN)199907-200808

sub43510-39096

main43510-39096iXZB50..GEN;BB42..LHD..HRF200808-201501

main43510-39105iBB50..ARL200211-200408

W(ABS)

sub43510-39106

main43510-39105iXZB50..ARL200408-200808

sub43510-39106

main43510-39106iXZB50..WOC..CBU200808-201501

main43510-39115iBB50..EX..IV;BB50..CBU..6F199907-200511

sub43510-39195

main43510-39195iBB59;BB50..(EUR,GEN)..6F200511-200808

sub43510-39196

main43510-39196iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

main43510-39196iBZB40,50,XZB40,50..GEN200808-201501

43512DISC, FRONT

main43512-36170iBB40,42,HZB50,RZB40,50..CBU199301-199907

sub43512-36171

main43512-36170iRZB40..STD;BB42..LHD..22S;RZB40..EX..GCC;BB42,HZB50..17S,20S,26S,30S199301-199907

W(16INCHIS DISC WHEEL)

sub43512-36171

main43512-36171iBB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S199907-201501

main43512-36171iXZB50..EX;BB42..LHD..HRF200408-201108

W/O(ABS)

main43512-36180iBB50..STD..CBU;BB50,HZB50..EUR199301-199907

sub43512-36181

main43512-36181iBB59;BB50..(EUR,GEN)..6F..TDEFI199907-200510

sub43512-36182

main43512-36182iBZB40,50,XZB40,50..GEN200908-201501

W(ABS)

main43512-36182iBB59;BB50..(EUR,GEN)..6F200511-201501

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-36050iBB4#,5#,HZB50,RZB40,50199301-199907

main43514-37030iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201307

main43514-37050iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201308-201501

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-36050iBB4#,5#,HZB50,RZB40,50199301-199907

main43514-37030iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199907-201307

main43514-37050iXZB50..IV201308-201501

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-39025iBB42,RZB40;HZB50..20S,30S199301-199907

main43520-39065iBB50..STD..WC..IV..5F199907-200408

sub43520-39155

main43520-39155iRZB40..HRF..GCC200408-200808

sub43520-39156

main43520-39156iXZB50..TAIW200808-201501

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39035iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main43520-39045iBB50,HZB50..EUR199301-199907

main43520-39055iBB50..WC..CBU199705-199907

main43520-39075iRZB40..HRF..GCC199907-200808

sub43520-39076

main43520-39076iXZB50..GEN;BB42..LHD..HRF200808-201501

main43520-39085iBB50..ARL200408-200808

sub43520-39086

main43520-39085iBB50..ARL200211-200408

W(ABS)

sub43520-39086

main43520-39086iXZB50..WC..ARL200808-201501

main43520-39095iBB50..IV..6F199907-200511

sub43520-39175

main43520-39175iBB59;BB50..(EUR,GEN)..6F200511-200808

sub43520-39176

main43520-39176iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

main43520-39176iBZB40,50,XZB40,50..GEN200808-201501

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-36010iBB4#,5#,HZB50,RZB40,50199301-199907

main43525-37010iBB42..LHD..HRF199907-201501

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-36010iBB4#,5#,HZB50,RZB40,50199301-199907

main43525-37010iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

9010514101

main90105-14101

9025205001

main90252-05001

23 parts on this diagram · 4 diagrams in section
