Toyota COASTER — FRAME

0001 1 0002 1 0003 1 0004 1W/O(BODY MOUNTING CUSHION=RUB0006 1W(BODY MOUNTING CUSHION=RUBBE0007 1 0008 1 0009 1FRAME WEIGHT

4804

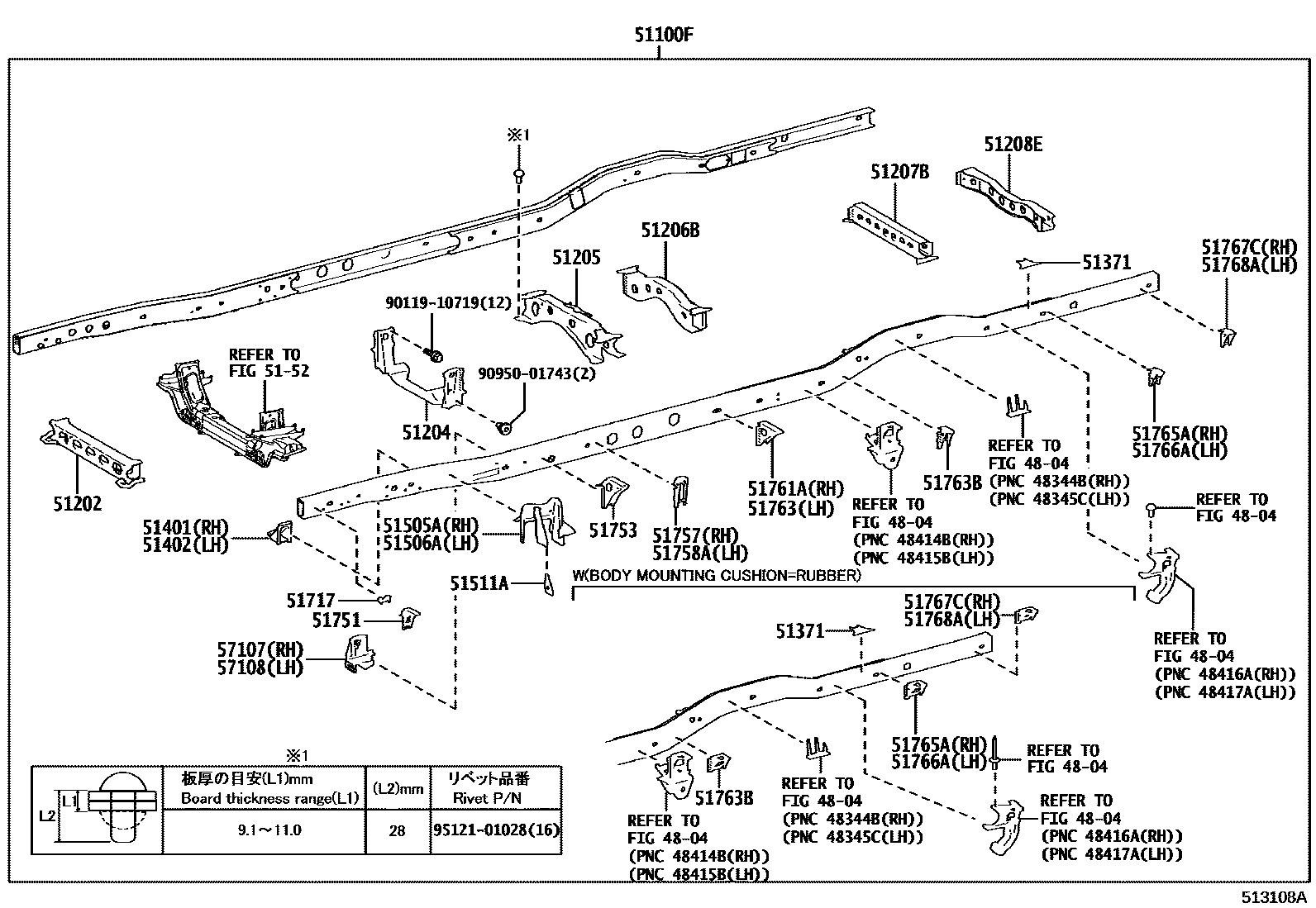

51100FFRAME SUB-ASSY

main51001-36B21iXZB70..GCC,TAIW201701-202101

main51001-36B31iXZB70..4FC..GEN201701-202012

main51001-36B51iXZB70..ARL201701-202012

main51001-36B81iXZB60201701-201712

main51001-36C11iXZB70..LHD..GEN201701-202101

main51001-36C30iXZB80..4FC201908-202012

main51001-36C40iXZB80..6FC201908-202101

main51001-36C60iHZB60..RHD201908-202101

main51001-36C70iHZB60..LHD201908-202101

main51001-3C071iBZB70201701-202012

main51001-3C141iBZB60201701-201712

main51001-V4010iXZB70..6FC..GEN202101

main51001-V4020iXZB70..ARL202101

main51001-V4050iHZB70..RHD202101-202201

main51001-V4130iXZB70..TAIW202101

main51001-V4140supersedes 51001-V4130iXZB70..(23S,25S,30S)..STD..GEN202101

main51001-V4150iHZB60..LHD202101-202201

main51001-V4160supersedes 51001-V4170iTRB60..GEN202101

main51001-V4180supersedes 51001-V4190iTRB70..GEN202101-202201

ROUGH ROAD AREA SPEC

main51001-V4200iXZB70..RHD..5F202101-202201

main51001-V4220iHZB60..RHD202101-202201

main51001-V4240iXZB80..5F202101-202201

main51001-V4250iXZB80..6FC202101-202201

main51001-V4360iXZB70..LHD..(23S,29S)..WC..GEN202201

main51001-V4370iXZB70..19S202201-202412

main51001-V4380iHZB60..LHD202201

main51001-V4430supersedes 51001-V4440iTRB70..WOC202201-202412

main51001-V4450iGDB70..23S..GEN202501

main51001-V4460iGDB70..GCC,TAIW202201

main51001-V4470iXZB70..SA;XZB70..RHD..29S202201

main51001-V4490iHZB60..RHD202201

main51001-V4500iHZB70..RHD202201

main51001-V4510iGDB70..SA202201

main51001-V4520iGDB70..DX..GEN202201-202312

main51001-V4540iXZB80..5F202201-202512

main51001-V4560iXZB80..6FC202201-202512

main51001-V4600iGDB60202303

main51003-3B512iTRB70..GCC201701-202101

main51003-3B562iHZB70..GCC201701-202101

main51003-3B592iHZB70..23S..GCC201701-202101

ROUGH ROAD AREA SPEC

main51003-3B602iBB60..LHD201701-201907

main51003-3B612iTRB70..GEN201701-202101

ROUGH ROAD AREA SPEC

main51003-3B632iHZB70..RHD201701-202101

main51003-3B642iBB60..RHD201701-201907

main51003-3B662supersedes 51003-3B622iTRB60..GCC201701-202101

ROUGH ROAD AREA SPEC

main51001-36B91supersedes 51001-36C01iXZB60201801-201907

ROUGH ROAD AREA SPEC

main51001-V4410supersedes 51001-V4420iTRB60..GCC202201-202303

ROUGH ROAD AREA SPEC

main51001-V4610supersedes 51001-V4620iTRB60..6F202501

ROUGH ROAD AREA SPEC

main51001-V4630supersedes 51001-V4640iTRB70..6F202501

ROUGH ROAD AREA SPEC

main51003-3B552iBB60..LHD201701-201801

JORDAN SPEC

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36150iBZB60,XZB60201701-201712

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36320iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S202201

main51203-36360iXZB60..GCC201701-201907

main51203-36390iXZB80..6FC201908-202201

main51203-V4010iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-36193iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-36090iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-36111iBZB60,XZB60201701-201712

51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8

main51208-36040iGDB70..ARL202201-202512

main51281-36030supersedes 51208-36040iXZB70..6FC..GEN;TRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701

51371GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

main51371-36070×2iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-36210iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

main51421-36220iTRB60..GEN201701

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51421-36210iXZB70..RHD..23S..GEN202501

main51421-36220iTRB60,70..19S,20S,23S,24S,30S201701-202201

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-36030iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-36120iBZB60,XZB60201701-201712

51511ASEAT, FRONT SPRING SUPPORT

main51511-36080×2iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,202201

5152

51717PLATE, BODY SUPPORT BRACKET

main51717-36010×2iBZB60,XZB60201701-201712

51751BRACKET, BODY SUPPORT, NO.1

main51751-36060×2iBZB60,XZB60201701-201712

51753BRACKET, BODY SUPPORT, NO.2

main51753-36051×2iBB60,XZB60..20S,26S201701-201907

51757BRACKET, BODY SUPPORT, NO.4 RH

main51758-36020iBB60,XZB60..20S,26S201701-201907

51758ABRACKET, BODY SUPPORT, NO.4 LH

main51758-36020×2iXZB70..RHD..23S..GEN202501

51761BRACKET, BODY SUPPORT, NO.6

main51761-36041×2iXZB80..4FC201908-202012

51761ABRACKET, BODY SUPPORT, NO.5 RH

main51761-36041iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main51761-36060iBZB60201701-201712

51763BRACKET, BODY SUPPORT, NO.5 LH

main51761-36041iBZB60,XZB60201701-201712

main51763-36061iBZB70201701-202012

51763BBRACKET, BODY SUPPORT, NO.6

main51763-36061×2supersedes 51765-36060iXZB70..RHD..23S..GEN202501

main51765-36060×2iGDB70..DX..GEN202201-202312

JORDAN SPEC

51765ABRACKET, FRAME BODY MOUNTING, NO.7 RH

main51765-36051supersedes 51765-36060iBZB60,XZB60201701-201712

main51765-36060iHZB70..30S..WOC;HZB70..LHD..WC..GEN202201

JORDAN SPEC

51766ABRACKET, FRAME BODY MOUNTING, NO.7 LH

main51765-36051supersedes 51765-36060iHZB70..23S..GCC202201-202412

ROUGH ROAD AREA SPEC

main51765-36060iXZB70..ARL201701-202012

51767CBRACKET, FRAME BODY MOUNTING, NO.8 RH

main51767-36140iXZB70..ARL201701-202012

main51767-36150iBZB70,HZB70,TRB60,70,XZB70..GEN201701-201903

ROUGH ROAD AREA SPEC

main51767-36151supersedes 51767-36140iXZB70..RHD..23S..GEN202501

51768ABRACKET, FRAME BODY MOUNTING, NO.8 LH

main51767-36140iXZB70..ARL201701-202012

main51767-36150iXZB60..GCC201701-201904

ROUGH ROAD AREA SPEC

main51767-36151supersedes 51767-36140iBB60201904-201907

ROUGH ROAD AREA SPEC

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57121-36020iBZB60,XZB60201701-201712

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57122-36020iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,202201

9011910719

main90119-10719

9095001743

main90950-01743

9512101028

main95121-01028

33 parts on this diagram · 8 diagrams in section
