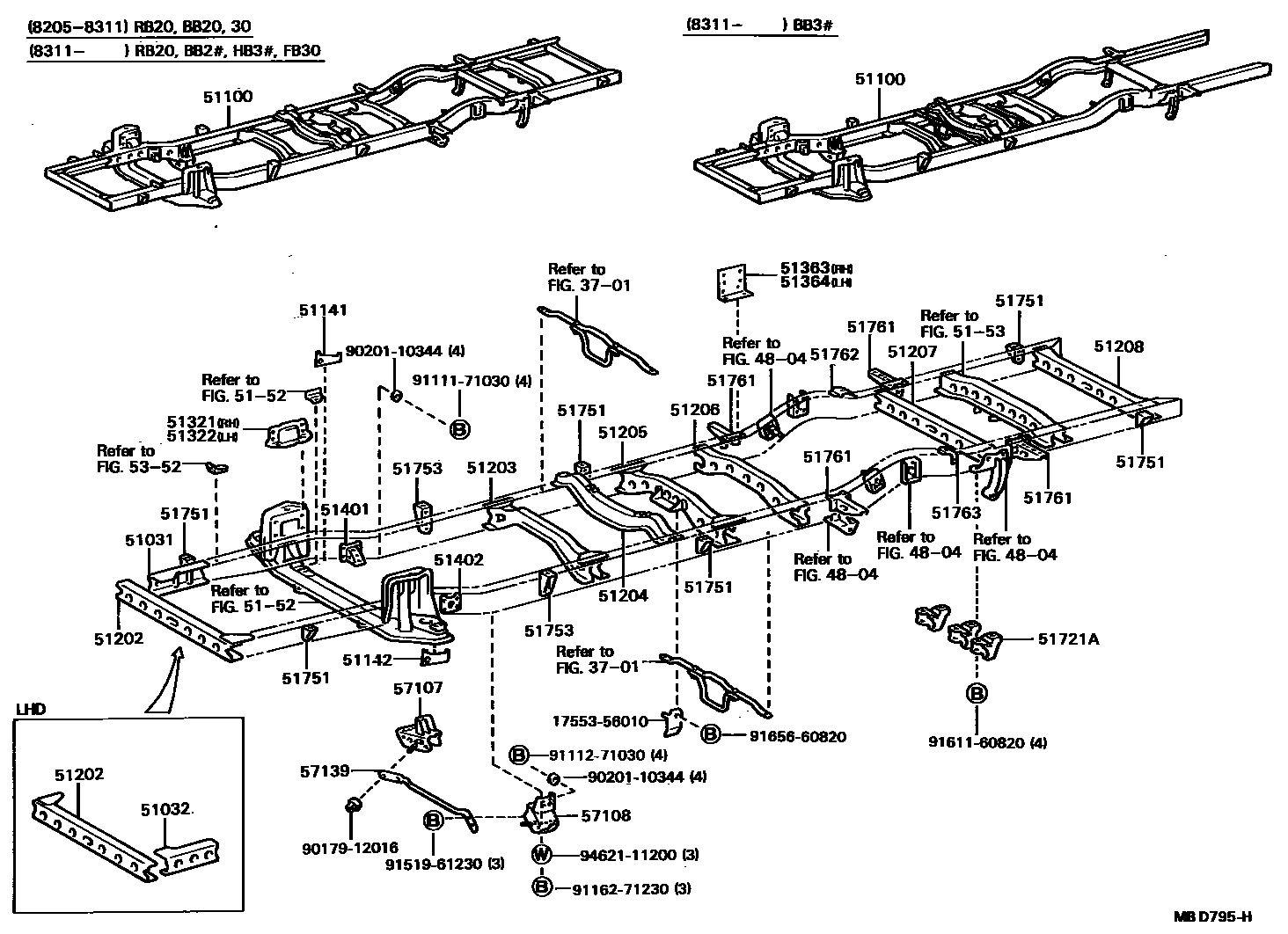

Toyota COASTER — FRAME

3701

4804

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-36010iBB2#,30,HB3#,RB20..RHD198205-198808

main51031-36011iHDB30,HZB30..RHD199001-199301

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-36010iBB20,21,30,FB30,HB30,RB20..LHD198205-198808

main51032-36011iHDB30,HZB30..LHD199001-199301

51100FRAME ASSY

main51001-3B280iBB20..LHD198205-198408

main51001-3B281iBB20..LHD198408-198504

main51001-3B282iBB20..LHD198504-198510

main51001-3B283iBB20..LHD198510-198610

main51001-3B284iBB21..LHD198610-199301

main51001-3B300iRB20..LHD198205-198408

main51001-3B301iRB20..LHD198408-198504

main51001-3B302iRB20..LHD198504-198510

main51001-3B303iRB20..LHD198510-198610

main51001-3B304iRB20..LHD198610-199301

main51001-3B420iBB20..RHD198205-198408

main51001-3B421iBB20..RHD198408-198504

main51001-3B422iBB20..RHD198504-198510

main51001-3B423iBB2#..RHD198510-198610

main51001-3B424iBB2#..RHD198610-199301

main51001-3B430iRB20..RHD198205-198408

main51001-3B431iRB20..RHD198408-198504

main51001-3B432iRB20..RHD198504-198510

main51001-3B433iRB20..RHD198510-198610

main51001-3B434iRB20..RHD198610-199301

main51001-3B520iBB30198306-198311

main51001-3B521iBB30198311-198408

main51001-3B522iBB30..LHD198408-198504

main51001-3B523iBB30..LHD198504-198510

main51001-3B524iBB30..LHD198510-198610

main51001-3B526iBB32..5F199001-199301

main51002-3B101iBB30..RHD198408-198504

main51002-3B102iBB30..RHD198504-198510

main51002-3B103iBB30..RHD198510-198610

main51002-3B105iBB30..RHD198610-198808

main51002-3B181iHB30..RHD198610-199001

main51002-3B191iHB30..LHD198610-199001

main51002-3B241iFB30198610-199301

main51002-3B261iHB31198610-199001

main51003-3B300iHZB30..RHD199001-199301

main51003-3B310iHDB30..GEN199001-199301

main51003-3B320iHZB30..LHD..GEN199001-199301

main51003-3B330iHZB30..ME199001-199301

main51003-3B340iBB32..4FC199001-199301

main51003-3B410iHDB30..EUR199109-199301

51141REINFORCEMENT, SIDE RAIL, RH

main51141-36080iBB3#,FB30,HB3#,HDB30,HZB30198610-199301

51142REINFORCEMENT, SIDE RAIL, LH

main51141-36080iBB3#,FB30,HB3#,HDB30,HZB30198610-199301

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36080iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

main51201-36090iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-36230iBB20,30,RB20198205-198510

main51203-36231iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198510-199301

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51204-36080iBB20,30,RB20198205-198504

main51204-36081iBB20,30,RB20198504-198510

main51204-36082iBB2#,30,RB20198510-198610

main51204-36150iHZB30..5F199001-199301

main51204-36180iHZB30..ME199001-199301

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51205-36060iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-36050iBB20,30,RB20198205-198408

main51206-36051iBB20,30,RB20198408-198505

main51206-36052iBB20,21,22,30,FB30,HB3#,HDB30,HZB30,RB20198505-199301

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51271-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51291-36110iBB20,RB20198205-198311

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51322GUSSET, CROSSMEMBER, NO.2 LH

main51322-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51363GUSSET, CROSSMEMBER, NO.6 UPPER RH

main51363-36010iBB32..4FC199001-199301

51364GUSSET, CROSSMEMBER, NO.6 UPPER LH

main61364-36010iBB32..4FC199001-199301

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-36100iRB20198205-199301

main51421-36070iBB2#,3#198205-199301

main51421-36080iHB3#,HDB30,HZB30198610-199301

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-36100iRB20198205-199301

main51422-36040iBB2#,3#,HDB30,HZB30198205-199301

main51422-36050iHB3#198610-199001

5152

5153

51721ABRACKET, BODY SUPPORT, CENTER

main51721-36050×3iFB30,HB30,HZB30198610-199301

51751BRACKET, BODY SUPPORT, NO.1

main51751-36040×6iBB2#,RB20198205-199301

51753BRACKET, BODY SUPPORT, NO.2

main51753-36040×2iBB2#,30,RB20198205-198608

main51753-36041×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198608-199301

51761BRACKET, BODY SUPPORT, NO.6

main51763-36030×4iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51762BRACKET, BODY SUPPORT, NO.5 RH

main51761-36020iBB2#,FB30,HB30,HZB30,RB20198311-199301

51763BRACKET, BODY SUPPORT, NO.5 LH

main51762-36030iBB20,30,RB20198205-198311

5352

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-36010iBB20,30,RB20198205-198510

main57107-36011iBB2#,3#,RB20198510-199301

main57107-36021iFB30,HB3#,HDB30,HZB30198610-199301

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-36010iBB20,30,RB20198205-198510

main57108-36011iBB2#,3#,RB20198510-199301

main57108-36021iFB30,HB3#,HDB30,HZB30198610-199301

57139ROD, STRUT BAR BRACKET BRACE

main57139-36010iBB2#,3#,RB20198205-199301

main57139-36020iFB30,HB3#198610-199001

main57139-36021iFB30199001-199301

main57139-36030iHDB30,HZB30199001-199301

1755356010INSULATOR, EXHAUST PIPE HEAT, NO.3

main17553-56010

9017912016

main90179-12016

9020110344

main90201-10344

9111171030

main91111-71030

9111271030

main91112-71030

9116271230

main91162-71230

9151961230

main91519-61230

9161160820

main91611-60820

9165660820

main91656-60820

9462111200

main94621-11200

42 parts on this diagram · 1 diagram in section
