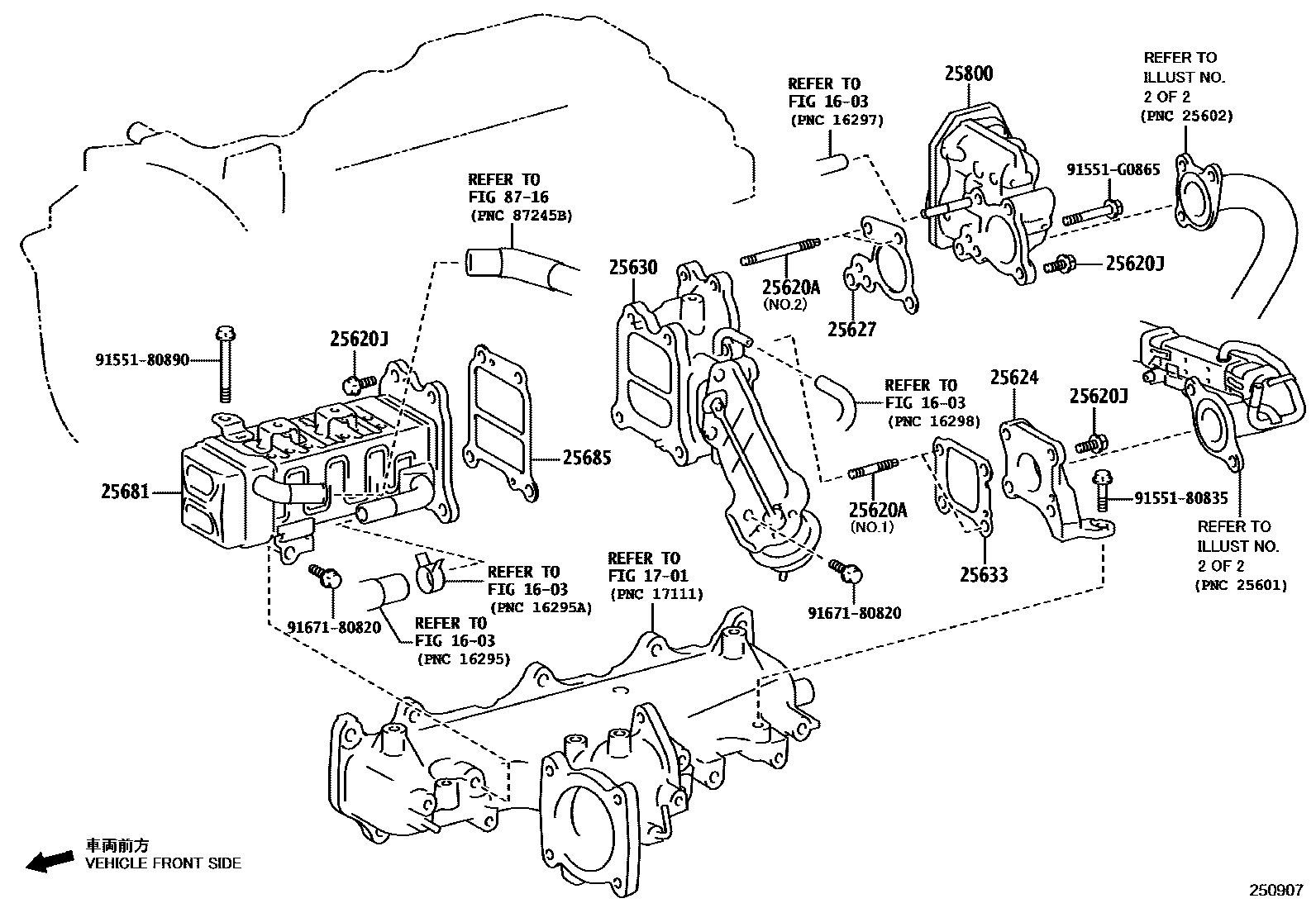

Toyota COASTER — EXHAUST GAS RECIRCULATION SYSTEM

0001 1EURO 6 0002 1EURO 5 0003 1EURO 3 0005 1EURO 6 0006 1EURO 5 0007 1EURO 3 0009 1EURO 5 0010 1EURO 4 OR EURO 6 0011 1EURO 5

1603

1701

25620VALVE ASSY, EGR

main25620-78090iN04C..XZB70..6FC..GEN201908-202512

main25620-E0012iN04C..XZB70..TAIW201701-202101

main25620-E0264iN04C..XZB70..GCC202101-202412

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202201-202512

NO.1

main90126-08052i1GDFTV..GDB70..SA202201

NO.1

main90126-08064i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

NO.2

25620JBOLT(FOR EGR VALVE)

main91671-80825i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202201-202512

25624ADAPTER, EGR VALVE

main25607-11040i1GDFTV..GDB70..SA202201

main25624-11010i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202201-202512

25627GASKET, EGR VALVE

main17173-E0140iN04C..XZB70..TAIW201701-202101

main25627-11050i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main25627-E0130iN04C..XZB80..6FC201908-202512

NO.1:REFER ILLUST.

main25627-E0140iN04C..XZB70,80..(01S,20S)..5F201908-202512

NO.2:REFER ILLUST.

25630VALVE ASSY, EGR, NO.2

main25630-11040i1GDFTV..GDB70..ARL,GCC,GEN,TAIW202201-202202

sub25630-11041

main25630-11041i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202203-202512

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202201-202512

25681COOLER, EGR, NO.1

main25681-0W030i1GDFTV..GDB70..BTN202201-202512

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDB70..BTN202201-202512

mainS171042020iN04C..XZB60201701-202512

mainS171042020iN04C..XZB70..WOC201701-202101

EXHAUST EMISSION CONTROL-EURO 4

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i1GDFTV..GDB70..BTN202201-202512

8716

9155180835

main91551-80835

9155180890

main91551-80890

91551G0865

main91551-G0865

9167180820

main91671-80820

17 parts on this diagram · 9 diagrams in section
