Toyota COASTER — ELECTRONIC FUEL INJECTION SYSTEM

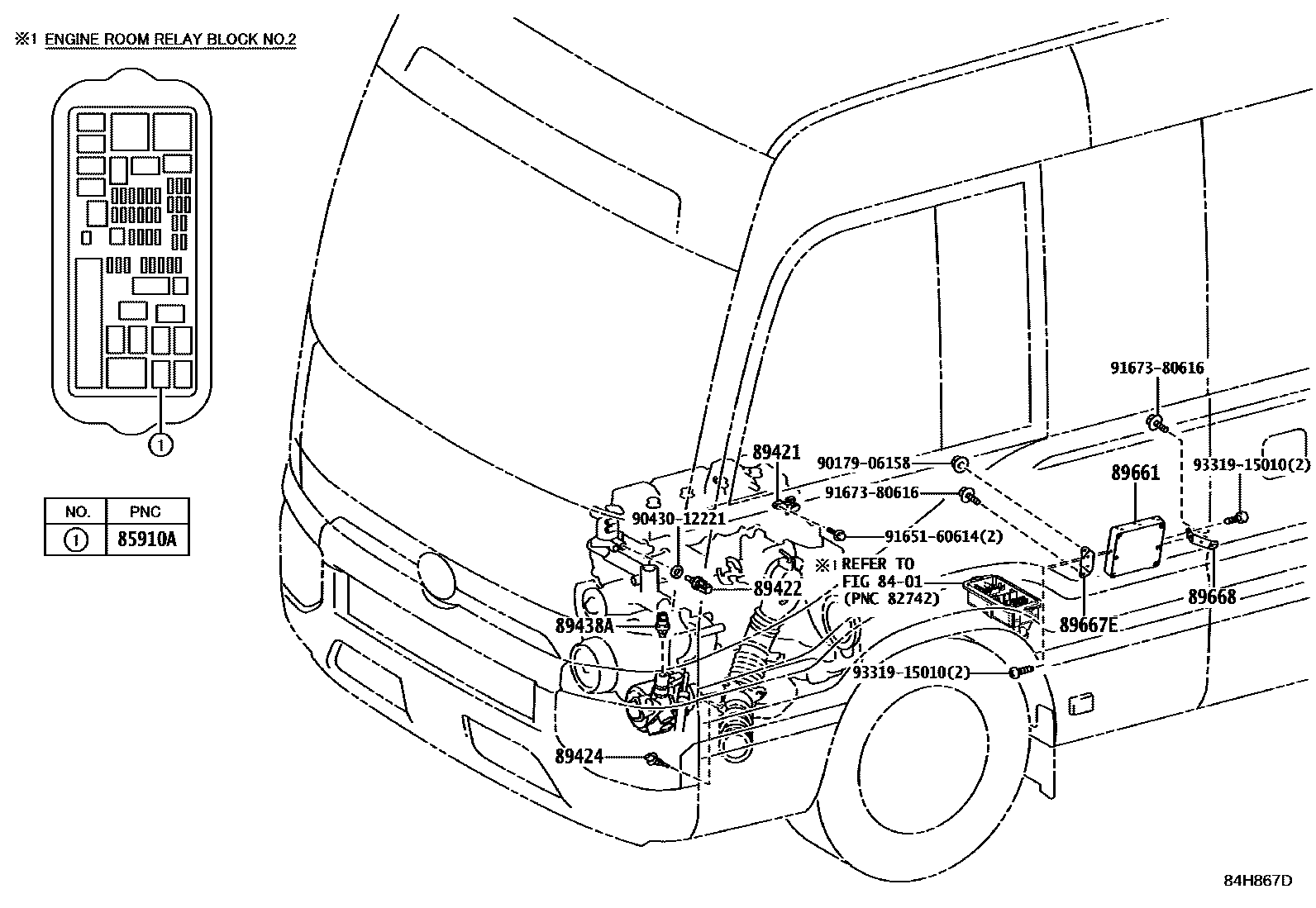

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012i201701-201712

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190i201701-201712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010i201701

main89422-20010i201701-202012

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010i201701-201712

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-30010i201701-201712

main89438-71010i201701-202201

89661COMPUTER, ENGINE CONTROL

main89661-36230i201701-201712

main89661-36460i201701-201801

main89661-36610i201801-202201

DENSO

main89661-36D20i202501

DENSO

main89661-36620supersedes 89661-36720i202201-202412

DENSO,ABS-WITH

main89661-36D10supersedes 89661-36D00i202501

DENSO,ABS-WITH

main89661-36D30i202501

DENSO,SAUDIARABIA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-36150i201701-201712

main89667-36160i201701-202201

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36140i201701-201712

main89668-36150i201701-202201

9017906158

main90179-06158

9043012221

main90430-12221

9165160614

main91651-60614

9167380616

main91673-80616

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COASTER

This section contains 18 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COASTER. Key components include: SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.).
