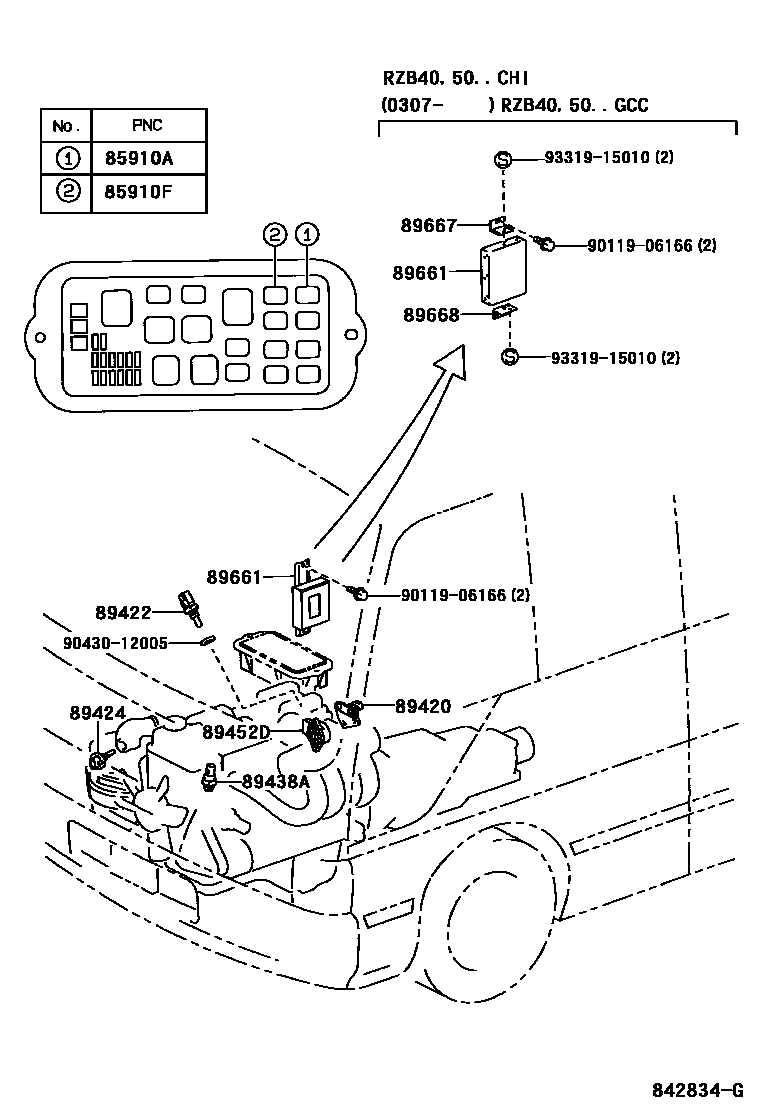

Toyota COASTER — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iRZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200708

main90987-02027iTRB40,50200708-201501

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iRZB40..WOC..GCC;RZB40..22S..GEN199907-200708

main90987-02027iTRB40,50200708-201501

89420SENSOR ASSY, VACUUM

main89420-60040iRZB40..WOC..GCC;RZB40..22S..GEN199907-200708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iTRB40,50200708-201501

main89422-35010iRZB40..WOC..GCC;RZB40..22S..GEN199907-200708

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-201612

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iRZB40..WOC..GCC;RZB40..22S..GEN199907-201608

main89438-71010iTRB40,50201609-201612

89452DSENSOR, THROTTLE POSITION

main89452-35020iRZB40..HRF..GCC200207-200708

89661COMPUTER, ENGINE CONTROL

main89660-36020iRZB40,50..WC..GCC199907-200708

main89661-36060iRZB40..HRF..GCC200012-200708

main89661-36080iBZB40200108-200203

main89661-36081iBZB40200203-200207

main89661-36082iBZB40,50200207-200306

main89661-36110iBZB40,50200306-200312

main89661-36111iBZB50..EX200312-200708

main89661-36230iBZB40,50200708-201501

main89661-36270iTRB40,50..GCC200708-201009

main89661-36271iTRB40,50..GCC201010-201501

main89661-36280iTRB40,50..GEN200708-201009

main89661-36281iTRB40,50..GEN201010-201501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-36020iBZB50..EX200012-201501

main89667-36100iTRB40,50200708-201501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36010iRZB40,50..CHI200012-201501

main89668-36090iTRB40,50200708-201501

9011906166

main90119-06166

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 3 diagrams in section
