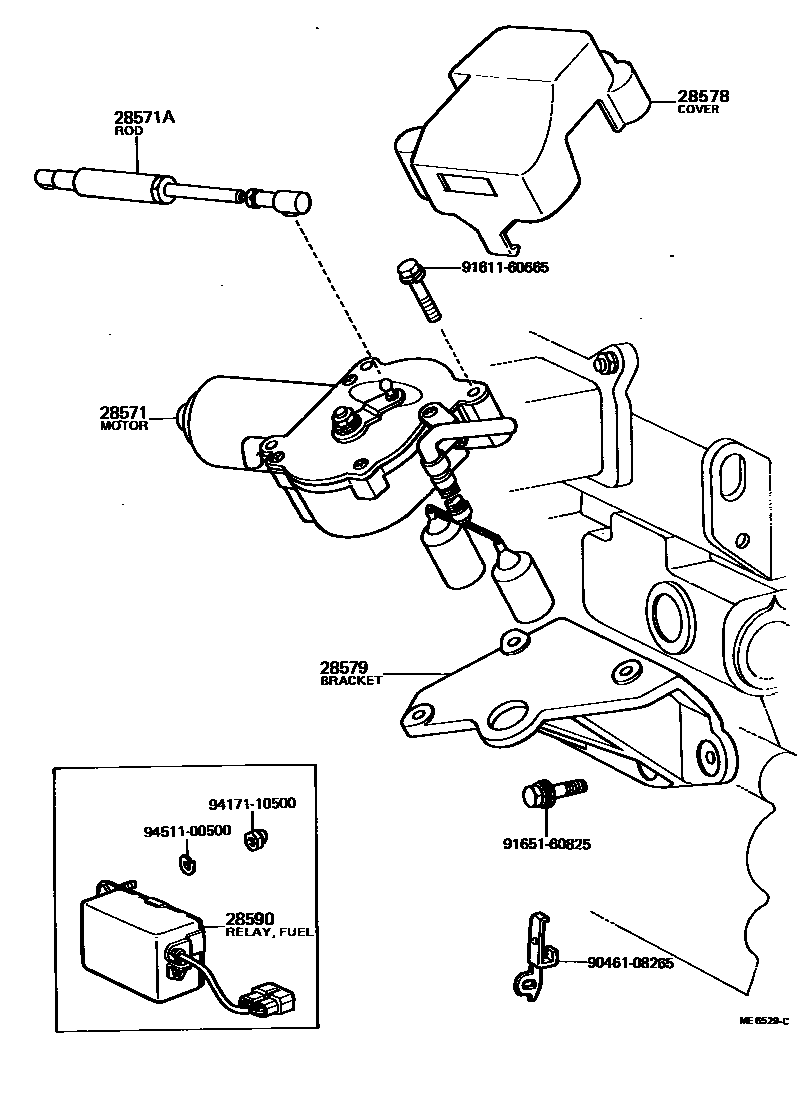

Toyota COASTER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28571MOTOR, FUEL CONTROL

main28571-56030i2B..BB10..DLX,STD197708-198008

12V

main28571-56050i2B..BB10..GEN197708-197905

24V

main28571-56120i2B..BB10..DLX,STD198008-198204

12V

main28571-56130i2B..BB10..BC..ARL198008-198204

24V

28571AROD, FUEL CONTROL MOTOR

main84580-36021i2B..BB10197708-197905

28578COVER, FUEL CONTROL MOTOR

main28578-56010i2B..BB10197909-197911

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i2B..BB10197708-197905

28590RELAY ASSY, FUEL CONTROL

main28590-56060i2B..BB10..DLX,STD197708-198008

12V

main28590-56070i2B..BB10..21S,22S,25S,26S197905-197911

24V

main28590-57010i2B..BB10..DLX,STD198008-198204

12V

main28590-57020i2B..BB10..BC..ARL198008-198204

24V

9046108265

main90461-08265

9161160665

main91611-60665

9165160825

main91651-60825

9417110500

main94171-10500

9451100500

main94511-00500

10 parts on this diagram · 1 diagram in section
