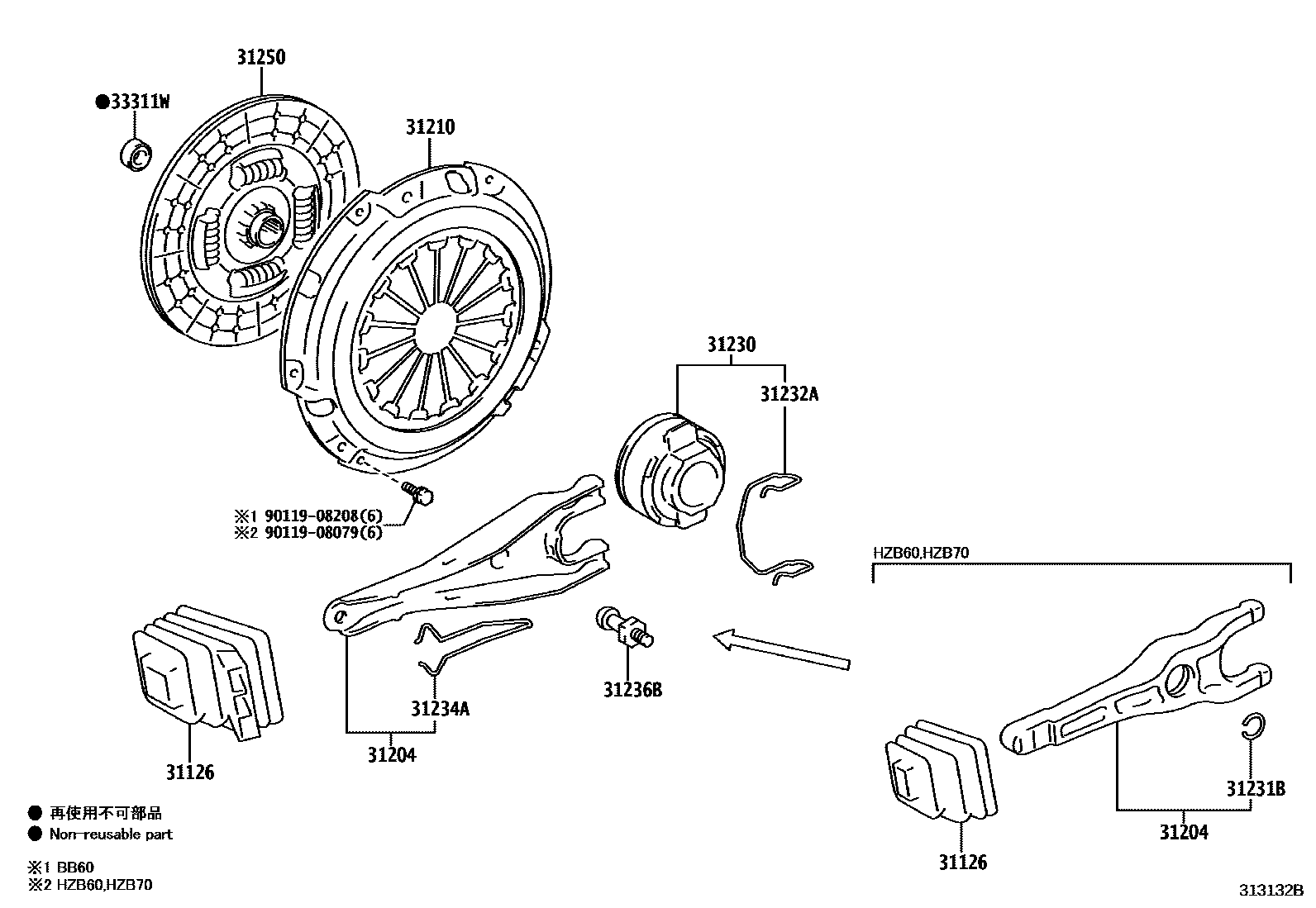

Toyota COASTER — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZB60..GCC201701-202512

main31126-36080iBB60201701-202412

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iTRB60,70..6F;TRB70..WC..GEN201701-202412

main31204-35031iBB60201701-201907

main31204-36142iBZB70201701-202412

main31204-37010iXZB70..5F..ARL201701-202512

31210COVER ASSY, CLUTCH

main31210-35291iTRB70..WOC201701-202412

main31210-36292iXZB70..5F..ARL201701-202512

main31210-36310iBZB70201701-202012

main31210-36330iBB60201701-201907

main31210-36340iHZB70..19S201701-202412

31230BEARING ASSY, CLUTCH RELEASE

main31230-35071iTRB60,70..6F;TRB70..WC..GEN201701-202412

main31230-36151iBB60201701-201907

main31230-36200iHZB70..23S..WOC;XZB70..RHD..23S..GEN201701-202512

main31230-37010iBZB60201701-202012

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iXZB60..GCC201701-202512

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTRB60,70..6F;TRB70..WC..GEN201701-202412

TYPE A:REFER ILLUST.

main31232-35030iTRB60,70..GCC201701-202412

TYPE B:REFER ILLUST.

main31232-36010iBB60201701-201907

main31232-36030iHZB60,70,XZB80..(01S,23S,25S,26S,30S)..5F;XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

main31232-37010iBZB70201701-202012

31234ASPRING, RELEASE FORK SUPPORT

main31234-35011iBB60201701-201907

main31234-35020iTRB60,70..6F;TRB70..WC..GEN201701-202412

31236BSUPPORT, RELEASE FORK

main31236-35030iBB60201701-201907

main31236-36060iXZB70,80..(01S,20S)..5F201701-202512

main31236-37020iTRB60,70..6F201701-202412

31250DISC ASSY, CLUTCH

main31250-36551iXZB60201701-201907

sub31250-36552

main31250-36552iXZB70..5F..ARL201908-202512

main31250-36571iBZB70201701-201907

sub31250-36572

main31250-36572iBZB70201908-202012

main31250-36622iHZB70201701-201907

sub31250-36623

main31250-36623iHZB60,70..23S,25S,26S,30S201908-202412

main31250-36632iBB60201701-201907

main31250-60500iTRB60,70201701-201711

sub31250-60501

main31250-60501iTRB60..GEN201711-202412

33311WBEARING (FOR INPUT SHAFT)

main90363-12018iBZB60201701-202412

main90363-15017iHZB70..23S..GCC201701-202412

mainSZ37117009iXZB70..GCC;XZB70..22S..GEN201701-202512

9011908079

main90119-08079

9011908208

main90119-08208

12 parts on this diagram · 4 diagrams in section
