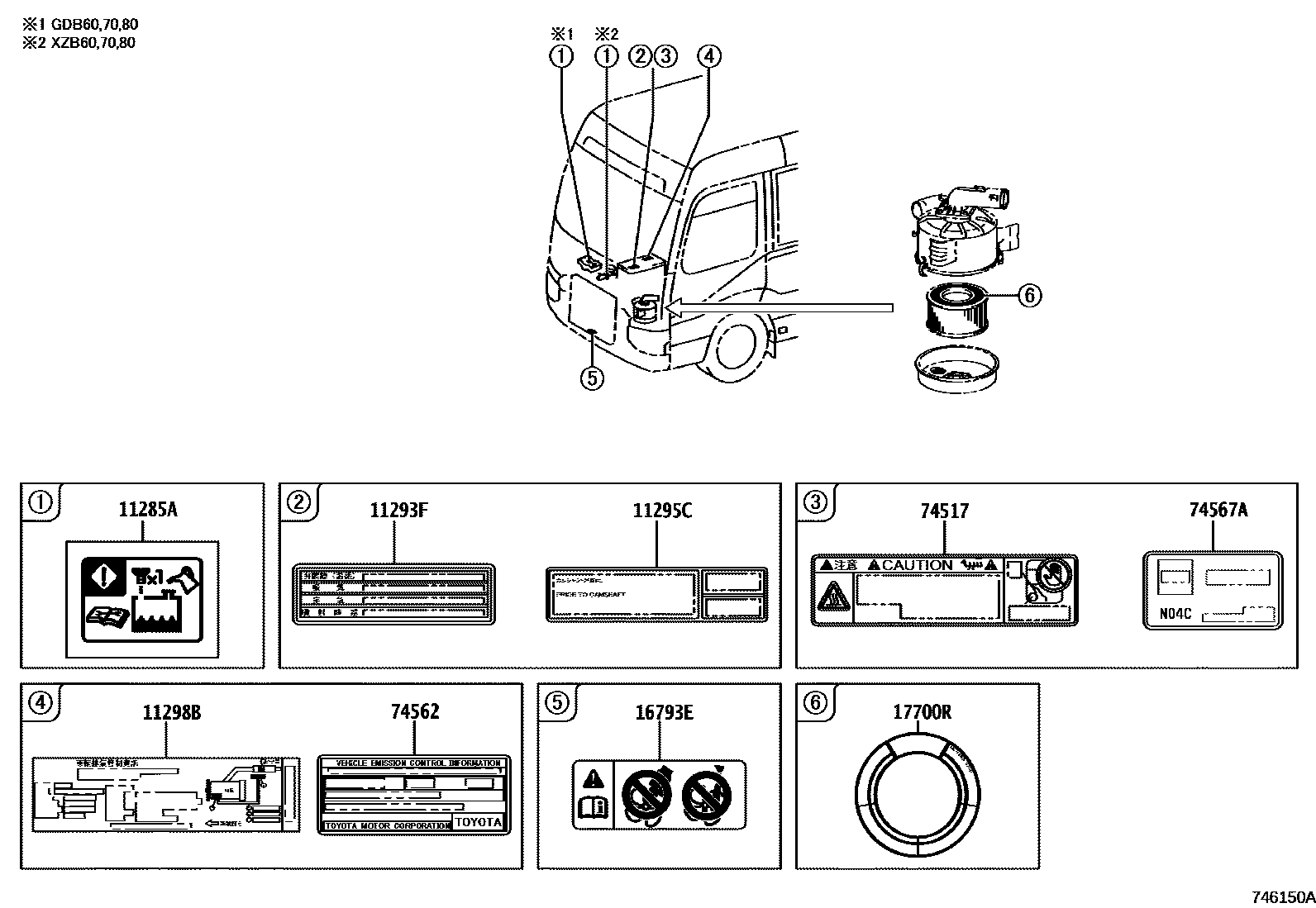

Toyota COASTER — CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR(1/3) 0002 1ENGINE ROOM & EXTERIOR(2/3) 0003 1ENGINE ROOM & EXTERIOR(3/4) 0004 1ENGINE ROOM & EXTERIOR(4/4) 0005 1INTERIOR(1/2) 0006 1INTERIOR(2/2) 0007 1EMERGENCY EXIT CAUTION(1/2) 0008 1EMERGENCY EXIT CAUTION(2/2)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020iN04C..XZB70..20S..5F;1GDFTV..GDB70..DX..ARL;N04C,1GDFTV..GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202101-202512

11293FLABEL, ENGINE CAUTION

main11293-56080i14B..BB60201701-201907

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11297-17010i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0W040iN04C..XZB70..TAIW201701

16793ELABEL, COOLING FAN CAUTION

main16793-31070i1HZ..HZB60,70..23S,25S,26S,30S201701-202501

17700RLABEL, AIR CLEANER INFORMATION

main90917-07109i1HZ..HZB70..19S;N04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-E0010iXZB70,80..(01S,20S)..5F202101-202201

EXHAUST EMISSION CONTROL-EURO 4

main74517-E0010iXZB70..6FC201908-202512

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main11298-78020

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iGDB70..ARL202201-202401

main74567-E0030iXZB70..TAIW201701-202101

9 parts on this diagram · 8 diagrams in section
