Toyota COASTER — CARBURETOR ASSEMBLY

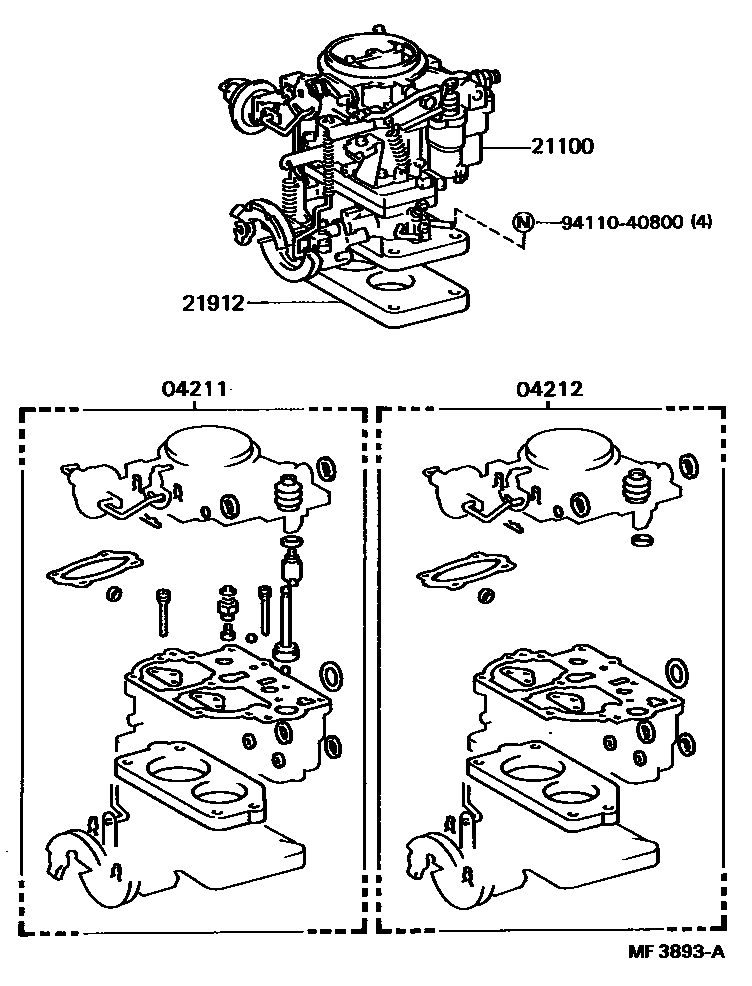

Parts diagram

04211CARBURETOR KIT

main04211-35030i198205-198208

main04211-35031i198208-198408

main04211-35040i198205-198208

main04211-35041i198208-198408

main04211-35050i198408-199301

main04211-61240i198610-199301

04212GASKET KIT, CARBURETOR

main04212-35020i198205-198208

main04212-37041i198208-198408

main04212-37060i198408-199301

main04212-61030i198610-199301

21100CARBURETOR ASSY

main21100-35190i198205-198208

main21100-35191i198208-198408

main21100-35200i198205-198208

main21100-35201i198208-198408

main21100-35340i198408-199301

main21100-61280i198610-199301

21912INSULATOR, CARBURETOR HEAT

main21912-37020i198205-198208

main21912-37030i198208-199301

main21912-61050i198610-199001

main21912-61070i199001-199301

9411040800

main94110-40800

5 parts on this diagram · 2 diagrams in section

CARBURETOR ASSEMBLY for Toyota COASTER

This section contains 7 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COASTER. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR, CARBURETOR HEAT.
