Toyota COASTER — CARBURETOR ASSEMBLY

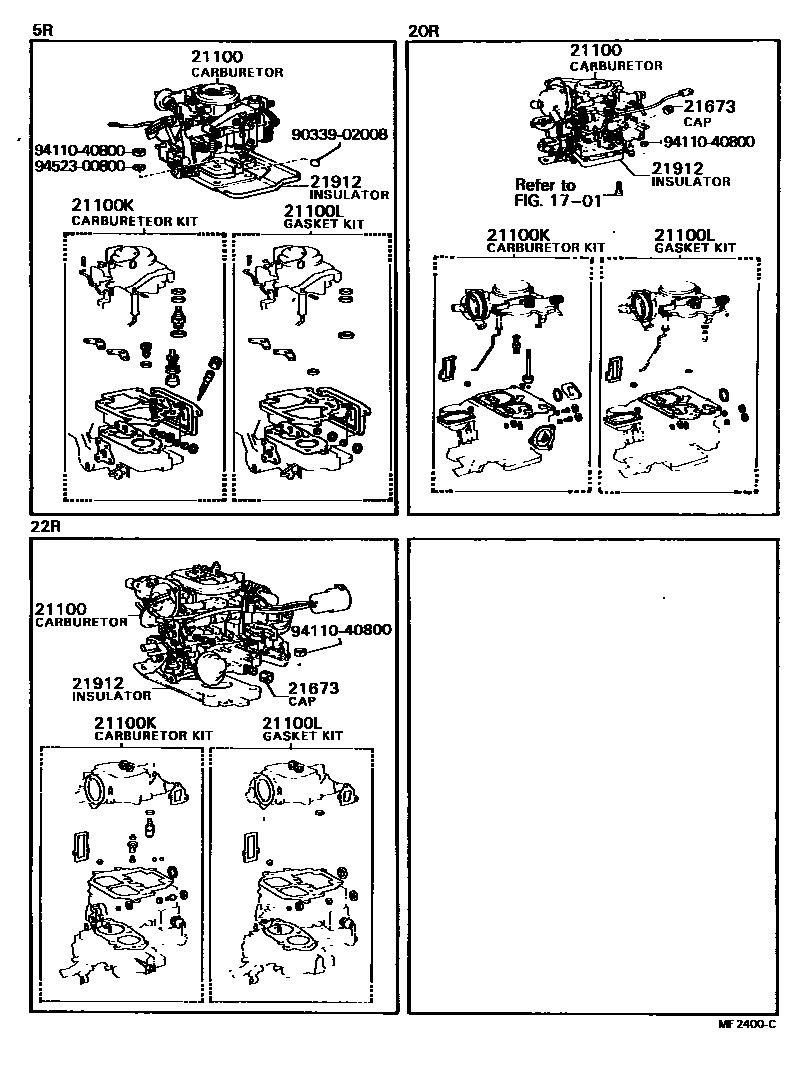

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

21100CARBURETOR ASSY

main21100-35130i198008-198204

main21100-35140i198008-198204

main21100-38280i197708-197808

main21100-38281i197905-197911

main21100-38430i197905-197911

main21100-38450i197911-198008

main21100-38460i197911-198008

main21100-44270i197708-197911

21100KCARBURETOR KIT

main04211-35020i198008-198204

main04211-38040i197708-197905

main04211-38050i197905-197911

main04211-38060i197911-198008

main04211-38070i197911-198008

main04211-44090i197708-197911

21100LGASKET KIT, CARBURETOR

main04212-37040i198008-198012

main04212-37041i198012-198204

main04212-38012i197808-197911

main04212-38013i197708-197808

main04212-38020i197911-198008

main04212-44040i197708-197911

21673CAP, IDLE LIMIT

main21673-38020i197708-198204

21912INSULATOR, CARBURETOR HEAT

main21912-37020i198008-198204

main21912-38020i197708-197808

main21912-38030i197808-198008

main21912-44030i197708-197911

9033902008

main90339-02008

9411040800

main94110-40800

9452300800

main94523-00800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota COASTER

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COASTER. Key components include: MANIFOLD, CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT.
