Toyota COASTER — AUTOMATIC DOOR

0001 1GLIDING TYPE 0002 1FOLDING TYPE 0003 1GLIDING TYPE 0004 1FOLDING TYPE 0005 1GLIDING TYPE UNIT 0006 1FOLDING TYPE UNIT 0007 1FOLDING TYPE UNIT 0008 1LABEL 0009 1AUTO DOOR OPENING SWITCH 0010 1AUTO DOOR OPENING SWITCH 0011 1ACCEL INTER LOCK & RELAY

7851

85450FMOTOR ASSY, DOOR CONTROL

main85450-36030iXZB5#..DX,EX;TRB50..HRF..GCC199309-201501

main85450-36040iBB50..DX;BB59,HZB50..EX;BB50..(19S,20S,30S)..WC199301-201108

85610AACTUATOR ASSY, ACCEL INTERLOCK

main85610-36010iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199301-199505

12V

main85610-36020iHZB50..RHD..(DX,EX);BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN..5F199301-199907

main85610-36030iRZB40,50199301-199907

12V

sub85610-36031

main85610-36031iBB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-201501

12V

main85610-36031iTRB40,50200708-201501

main85610-36040iBB42,5#,HZB50..LHD..CBU199301-199907

sub85610-36041

main85610-36041iBB50..CHI199907-200408

main85610-36041iBB50,58..GEN..6F200408-201501

24V

main85610-36060iXZB50..STD..GEN199907-201501

main85610-36060iBB42,HZB50..RHD201501

24V

main85610-36070iBZB40,50200108-201501

main85610-36070iBZB40,50,XZB40,5#..RHD201501

12V

85638ASPACER, AUTOMATIC DOOR

main85638-36010iBB50..CBU..6F;BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..DX,EX199301-201501

85980BRELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)

main85980-36080iBB42..SCO199301-199303

main85980-36090iHZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-200809

24V

sub85980-36091

main85980-36090iBB50..WOC..TD;BB50..GEN..6F200108-200408

sub85980-36091

main85980-36091iXZB50..TAIW200810-201108

main85980-36091iBB42,HZB50..LHD200810-201501

24V

main85980-36110iBB42..RHD..SRF;BB42,59..RHD..WC;BB50..(20S,21S)..TDEFI;HZB50..RHD..HRF..STD..WC..GEN..5F199907-200809

sub85980-36111

main85980-36111iXZB40,5#..ARL,GEN200810-201501

main85980-36111iBB42,HZB50..RHD201501

24V

main85980-36120iBZB50..EX200108-201501

main85980-36120iBZB40,50,XZB40,5#..RHD201501

12V

main85980-36150iBB42,HZB50..LHD..WOC;TRB40,50,XZB50..LHD..CBU201108-201501

12V

main88630-14010iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201108

12V

main88630-14010iTRB40,50200708-201108

86650DBUZZER ASSY

main86650-36050iXZB5#..DX,EX;TRB50..HRF..GCC201501

main86650-36050iRZB40..22S..GEN;BB42,RZB40..WOC..GCC199301-201501

12V

main86650-36060iBB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201209

24V

86659CBRACKET, BUZZER, AUTOMATIC DOOR

main86659-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

9010906122

main90109-06122

9011906255

main90119-06255

9011908511

main90119-08511

9020208039

main90202-08039

9155180608

main91551-80608

9165140612

main91651-40612

9165140616

main91651-40616

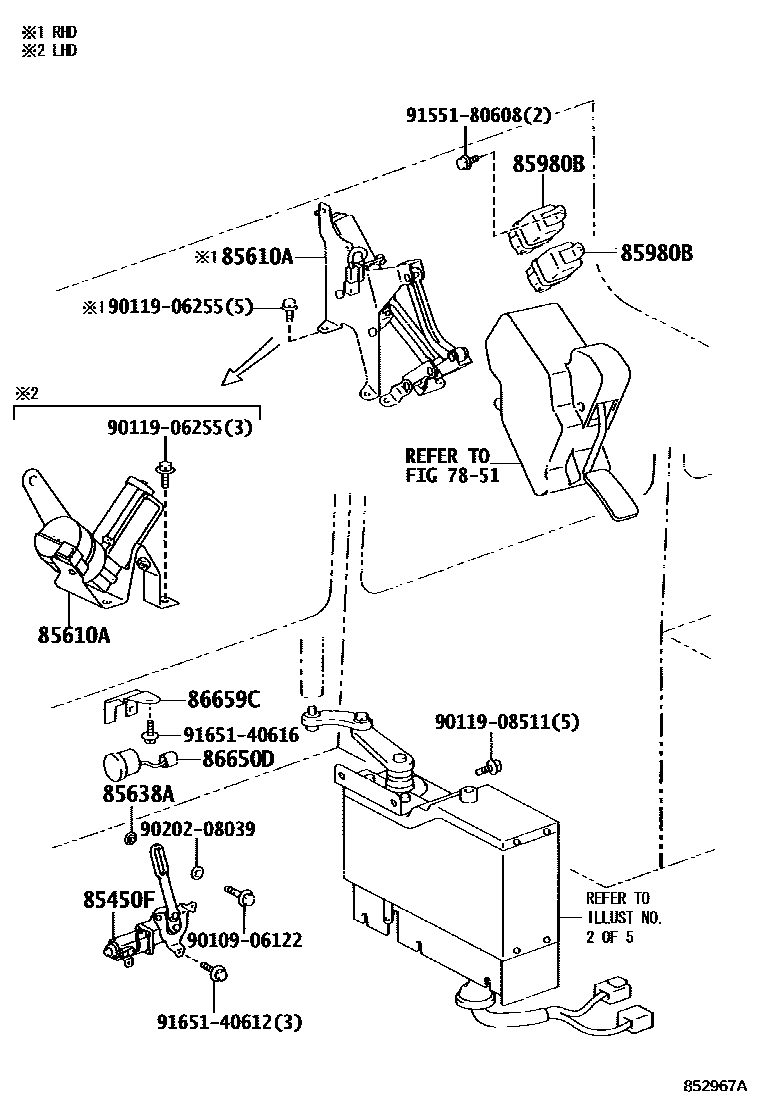

14 parts on this diagram · 11 diagrams in section
