EPC Data

Toyota COASTER — AUTOMATIC DOOR

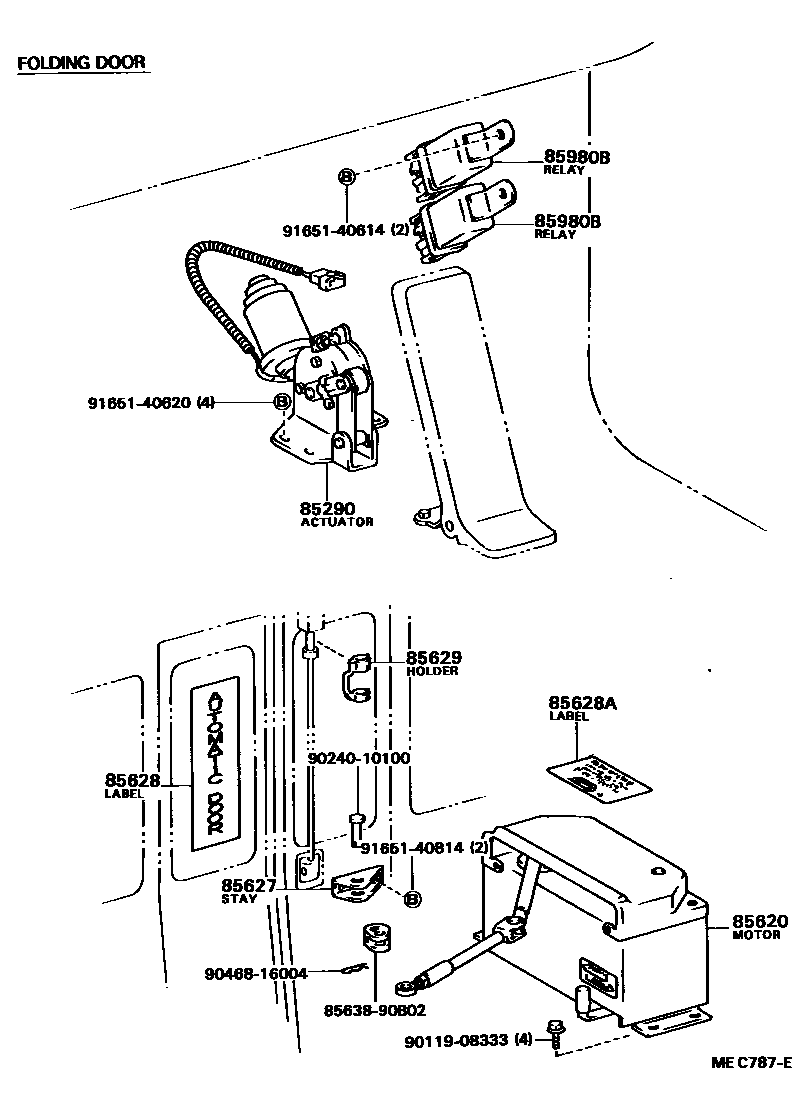

Parts diagram
85290ACTUATOR ASSY, ACCEL INTOR LOCK
main85290-90B00i198205-198808
24V
main85290-90B01i198205-198808
12V
main85290-90B02i198808-199301
24V
main85290-90B03i198808-199301
12V
85620MOTOR ASSY, AUTOMATIC DOOR REGULATOR
main85620-90B00i198205-198310
main85620-90B01i198205-198310
main85620-90B02i198302-198808
24V,FOLDING DOOR
main85620-90B02i198205-198302
24V
main85620-90B03i198205-198302
12V
main85620-90B03i198302-198808
FOLDING DOOR
main85620-90B03i198302-198808
12V,FOLDING DOOR
main85620-90B04i198302-198808
24V,FOLDING DOOR
main85620-90B04i198205-198302
24V
main85620-90B05i198205-198302
12V
main85620-90B05i198302-198808
FOLDING DOOR
main85620-90B05i198302-198808
12V,FOLDING DOOR
main85620-90B06i198310-198510
24V,GLIDE DOOR
main85620-90B07i198310-198510
GLIDE DOOR
main85620-90B07i198310-198510
12V,GLIDE DOOR
main85620-90B08i198310-198510
24V,GLIDE DOOR
main85620-90B09i198310-198510
12V,GLIDE DOOR
main85620-90B09i198310-198510
GLIDE DOOR
main85620-90B11i198510-198808
24V,GLIDE DOOR
main85620-90B12i198510-198808
12V,GLIDE DOOR
main85620-90B13i198510-198808
24V,GLIDE DOOR
main85620-90B14i198510-198808
12V,GLIDE DOOR
main85620-90B14i198510-198808
GLIDE DOOR
main85620-90B15i198808-199301
12V,GLIDE DOOR
main85620-90B16i198808-199301
24V,GLIDE DOOR
main85620-90B17i198808-199301
12V,GLIDE DOOR
main85620-90B18i198808-199301
24V,GLIDE DOOR
main85620-90B19i198808-199301
12V,FOLDING DOOR
main85620-90B19i198808-199301
FOLDING DOOR
main85620-90B20i198808-199301
24V,FOLDING DOOR
main85620-90B21i198808-199301
12V,FOLDING DOOR
main85620-90B21i198808-199301
FOLDING DOOR
main85620-90B22i198808-199301
24V,FOLDING DOOR
85627STAY, AUTOMATIC DOOR REGULATOR
main85627-90B00i198205-199301
85628LABEL, AUTOMATIC DOOR, NO.1
main85628-90B02i198310-199301
GLIDE DOOR
main85628-90B02i198205-198310
main85628-90B03i198205-198302
main85628-90B03i198302-199301
FOLDING DOOR
85628ALABEL, AUTOMATIC DOOR, NO.2
main85628-90B06i198205-198310
main85628-90B07i198205-198310
main85628-90B14i198310-199301
FOLDING DOOR
main85628-90B15i198310-199301
GLIDE DOOR
main85628-90B16i198310-199301
FOLDING DOOR
85629HOLDER, AUTOMATIC DOOR
main85629-90B01i198205-199301
85980BRELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
main28380-20010i198205-199301
12V
main85940-26010i198205-199301
24V
8563890B02SPACER, SLIDE ROOF MOTOR DRIVE
main85638-90B02
9011908333
main90119-08333
9024010100
main90240-10100
9046816004
main90468-16004
9165140614
main91651-40614
9165140620
main91651-40620
9165140814
main91651-40814

14 parts on this diagram · 5 diagrams in section

AUTOMATIC DOOR for Toyota COASTER

This section contains 45 genuine Toyota parts for the AUTOMATIC DOOR system of the Toyota COASTER. Key components include: BREAKER ASSY, WIRING CIRCUIT, SWITCH, AUTOMATIC DOOR CONTROL, HOUSING SUB-ASSY, AUTO DOOR, ACTUATOR ASSY, ACCEL INTOR LOCK, GEAR SUB-ASSY, IDLE.
