Toyota COASTER — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-36010iBB4#,5#,HZB50,RZB40,50199301-201501

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-36010iBZB50..EX;BB50,59..RHD199301-201501

main74104-36020iBB42,5#,HZB50,RZB40,50..LHD199301-201501

74130CRECEPTACLE ASSY, REAR ASH

main74130-36010-B1iXZB50..TAIW200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

CHARCOAL,TRIM1#

74130DRECEPTACLE ASSY, REAR ASH

main74130-36010-B1iBB42,HZB50..RHD..GEN200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42,HZB50..RHD..GEN..5F199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50..RHD201501-201612

CHARCOAL,TRIM1#

74130ERECEPTACLE ASSY, REAR ASH, NO.3 RH

main74130-36010-B1iBB42,HZB50..RHD200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB4#,HZB50..RHD..(ARL,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50..RHD201501-201612

CHARCOAL,TRIM1#

74130FRECEPTACLE ASSY, REAR ASH, NO.4 RH

main74130-36010-B1iBB50..GEN..TD;BB42,58,HZB50,RZB40,50..(20S,23S,26S,30S)..(GCC,GEN)200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42..26S;BB42..LHD..22S;BB40,HZB50..ARL,GCC,GEN199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..26S,30S201501-201612

CHARCOAL,TRIM1#

74130GRECEPTACLE ASSY, REAR ASH, NO.5 RH

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iBB50,RZB50..STD..CHI200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iHZB50..(DX,STD)..DSL199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iHZB50,TRB50,XZB50..STD..(GCC,GEN)201501-201612

CHARCOAL,TRIM1#

74130HRECEPTACLE ASSY, REAR ASH, NO.6 RH

main74130-36010-B1iBB50..GEN..TD;BB42,58,HZB50,RZB40,50..GCC,GEN200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB50..LHD..CBU..5F;BB42,58,HZB50,RZB40,50..MTM..(CHI,GCC,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..26S,30S201501-201612

CHARCOAL,TRIM1#

74130JRECEPTACLE ASSY, REAR ASH, NO.7 RH

main74130-36010-B1iBB50..GEN..TD;BB42,58,HZB50,RZB40,50..GCC,GEN200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB50..LHD..CBU..5F;BB42,58,HZB50,RZB40,50..MTM..(CHI,GCC,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501-201612

CHARCOAL,TRIM1#

74130KRECEPTACLE ASSY, REAR ASH, NO.1 LH

main74130-36010-B1iBB42,HZB50..RHD..GEN200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42,HZB50..RHD..GEN..5F;HZB50..LHD..HRF..STD..WC..GEN..5F199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50..RHD201501-201612

CHARCOAL,TRIM1#

74130LRECEPTACLE ASSY, REAR ASH, NO.2 LH

main74130-36010-B1iBB50,RZB40,50..CHI200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

CHARCOAL,TRIM1#

74130MRECEPTACLE ASSY, REAR ASH, NO.3 LH

main74130-36010-B1iBB50,RZB40,50..CHI200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB42,58,HZB50,RZB40,50..LHD..CBU199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

CHARCOAL,TRIM1#

74130NRECEPTACLE ASSY, REAR ASH, NO.4 LH

main74130-36010-B1iBB50..GEN..TD;BB42,58,HZB50,RZB40,50..(20S,23S,26S,30S)..(GCC,GEN)200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB58,RZB50;BB42,HZB50,RZB40..(20S,26S,30S)..(GCC,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..26S,30S201501-201612

CHARCOAL,TRIM1#

74130PRECEPTACLE ASSY, REAR ASH, NO.5 LH

main74130-36010-B1iBB50,HZB50,RZB50,TRB50..30S200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB5#,HZB50,RZB50..23S,30S199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iHZB50,TRB50,XZB50..STD..(GCC,GEN)201501-201612

CHARCOAL,TRIM1#

74130QRECEPTACLE ASSY, REAR ASH, NO.6 LH

main74130-36010-B1iBB58200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB50..LHD..CBU..5F;BB42,58,HZB50,RZB40,50..MTM..(CHI,GCC,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,HZB50,TRB40,50,XZB40,50..26S,30S201501-201612

CHARCOAL,TRIM1#

74130RRECEPTACLE ASSY, REAR ASH, NO.7 LH

main74130-36010-B1iBB50..GEN..TD;BB42,58,HZB50,RZB40,50..GCC,GEN200108-201501

CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-B1iHZB50..30S..GEN201501-201612

W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#

sub74130-36010

main74130-36010-E0iBB50..LHD..CBU..5F;BB42,58,HZB50,RZB40,50..MTM..(CHI,GCC,GEN)199301-200108

GREIGE,TRIM4#

sub74130-36010

main74130-36030-B0iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501-201612

CHARCOAL,TRIM1#

74145APLATE, REAR ASH RECEPTACLE

main74145-36010iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

74145BPLATE, REAR ASH RECEPTACLE, NO.2 RH

main74145-36010iBB4#,HZB50..RHD..(ARL,GEN)199301-201501

74145CPLATE, REAR ASH RECEPTACLE, NO.3 RH

main74145-36010iBB4#,HZB50..RHD..(ARL,GEN)199301-201501

74145DPLATE, REAR ASH RECEPTACLE, NO.4 RH

main74145-36010iBB42..26S;BB42..LHD..22S;BB40,HZB50..ARL,GCC,GEN199301-201501

74145FPLATE, REAR ASH RECEPTACLE, NO.5 RH

main74145-36010iHZB50..(DX,STD)..DSL199301-201501

74145GPLATE, REAR ASH RECEPTACLE, NO.6 RH

main74145-36010iBB4#,HZB50..ARL,GCC,GEN199301-201501

74145HPLATE, REAR ASH RECEPTACLE, NO.7 RH

main74145-36010iBB4#,HZB50..ARL,GCC,GEN199301-201501

74145JPLATE, REAR ASH RECEPTACLE, NO.1 LH

main74145-36010iBB42,HZB50..RHD..GEN199301-201501

74145KPLATE, REAR ASH RECEPTACLE, NO.2 LH

main74145-36010iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

74145LPLATE, REAR ASH RECEPTACLE, NO.3 LH

main74145-36010iBB42,58,HZB50,RZB40,50..LHD..CBU199301-201501

74145MPLATE, REAR ASH RECEPTACLE, NO.4 LH

main74145-36010iBB42..26S;BB40,HZB50..ARL,GCC,GEN199301-201501

74145NPLATE, REAR ASH RECEPTACLE, NO.5 LH

main74145-36010iHZB50..(DX,STD)..DSL199301-201501

74145PPLATE, REAR ASH RECEPTACLE, NO.6 LH

main74145-36010iBB4#,HZB50..ARL,GCC,GEN199301-201501

74145QPLATE, REAR ASH RECEPTACLE, NO.7 LH

main74145-36010iBB4#,HZB50..ARL,GCC,GEN199301-201501

9015050006

main90150-50006

9015950068

main90159-50068

9326915010

main93269-15010

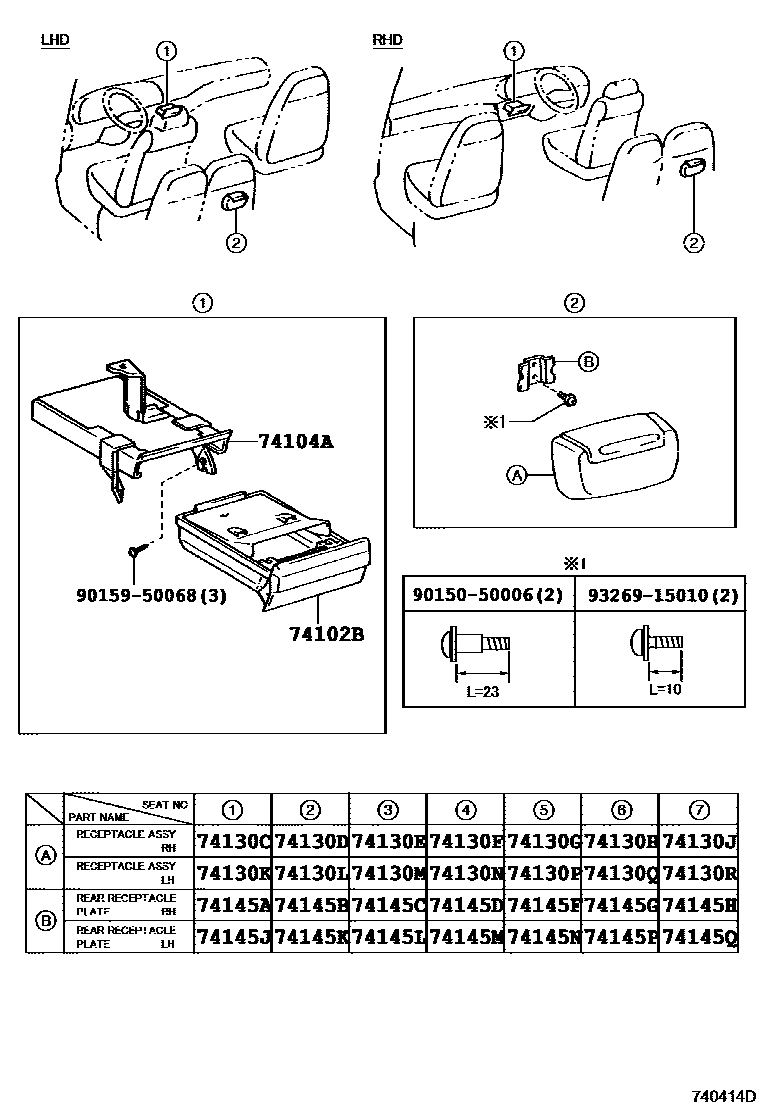

33 parts on this diagram · 1 diagram in section
