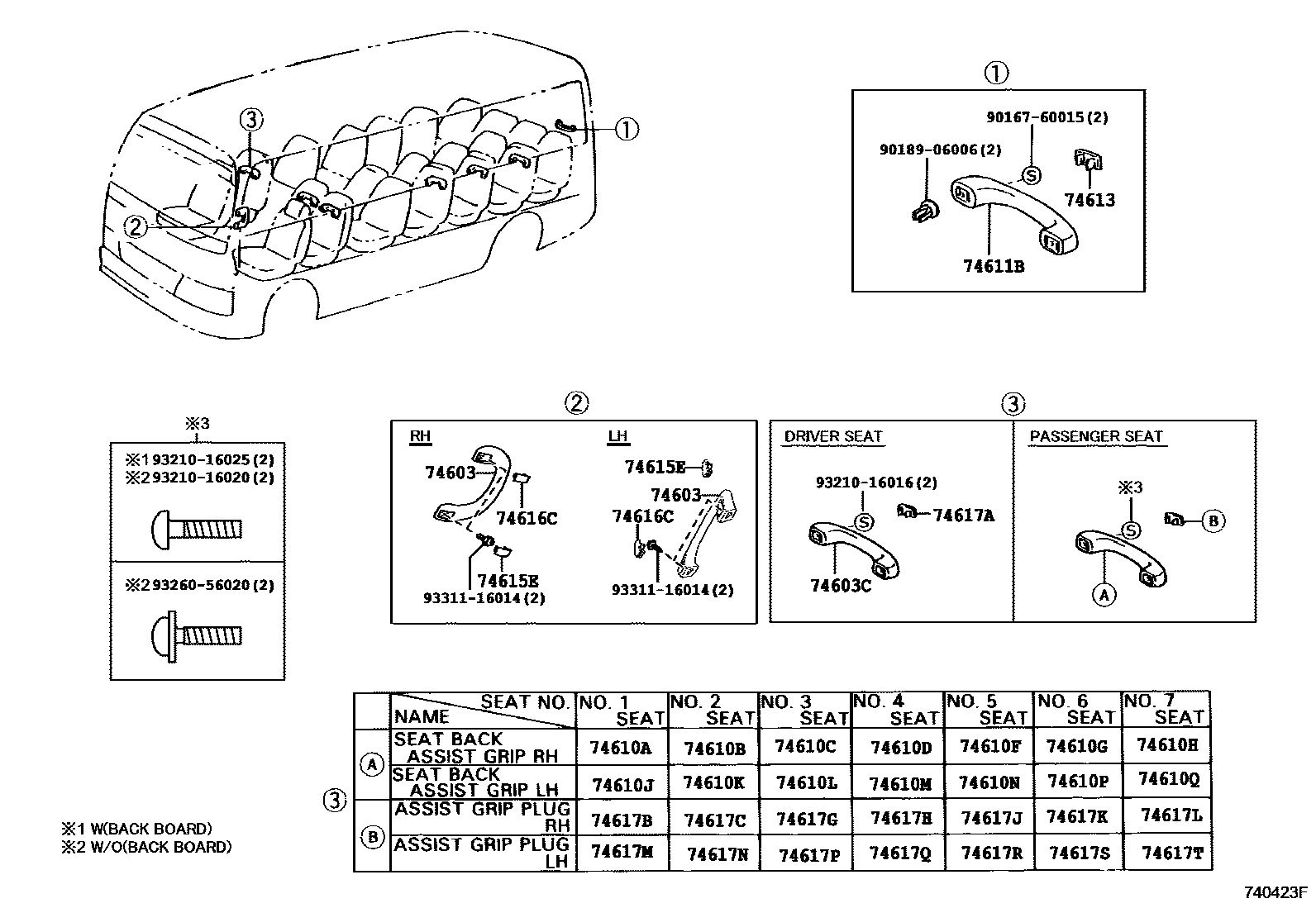

Toyota COASTER — ARMREST & VISOR

0001 1 0002 1 0003 1 0004 1 0005 1

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-36020-B0iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200602-201612

MD.CHARCOAL,TRIM1#

main74610-60010-A0iBB42,HZB50..GCC,GEN,SCO199301-199505

IVORY,TRIM4#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-A0iBB40,HZB50..ARL199301-199505

W(*PSD),IVORY,TRIM4#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-A1iBB40,HZB50..ARL199505-200108

W(*PSD),IVORY,TRIM4#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-A1iBB42,43,5#,HZB50,RZB40,50..(GCC,GEN,SCO)..CBU199505-200108

IVORY,TRIM4#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-B0iRZB40..EX200108-200602

MD.CHARCOAL,TRIM1#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-B0iBB50,RZB40,50..CHI200108-200211

W(*PSD),MD.CHARCOAL,TRIM1#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-B0iBB42,5#,BZB40,50,RZB50..ARL,GCC,GEN;HZB50,RZB40..(20S,26S,30S)..(GCC,GEN)200108-200408

FOR BACK DOOR,MD.CHARCOAL,TRIM1#

sub74610-60010

sub74610-36020

sub74615-60011

sub74616-60011

74603CGRIP SUB-ASSY, ASSIST

main74610-10020-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB40,HZB50..ARL199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB40,HZB50..ARL199505-199907

GREIGE,TRIM41

sub74610-10020

74610AGRIP SUB-ASSY, ASSIST

main74610-10020-B3iBB58200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

GREIGE,TRIM4#

sub74610-10020

main74610-60060-B6iXZB50..TAIW201108-201501

MD.CHARCOAL,TRIM1#

sub74603-35010

sub74610-60060

sub74610-0S020

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-10020-B3iBB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,50..17S,20S199301-200408

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB4#,HZB50..(17S,19S,22S)..(ARL,SCO)199301-199907

GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

74610CGRIP ASSY, ASSIST, NO.3 RH

main74610-10020-B3iBB50,BZB50..20S,21S200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iHZB50..4FC;BB43,50..RHD..CBU199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iHZB50..4FC;BB43,50..RHD..CBU199301-199907

GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

74610DGRIP ASSY, ASSIST, NO.4 RH

main74610-10020-B3iBB50,BZB50..20S,21S200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB42,HZB50..LHD..SRF..GEN200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB42,HZB50..LHD..SRF..GEN200108-200408

X 2,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iXZB50..RHD..CBU;HZB50..SRF..GEN;BB42,50,BZB40,50,HZB50,XZB40..RHD..STD..5F200408-201501

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iHZB50..4FC;BB43,50..RHD..CBU199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iRZB40..26S;BB42,HZB50,RZB50..LHD..CBU199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB42,HZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(20S,23S,26S,30S)199907-200108

X 2,GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610FGRIP ASSY, ASSIST, NO.5 RH

main74610-10020-B3iBB50,58,HZB50,RZB50..LHD..(23S,30S)..(GCC,GEN)200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB50,58,HZB50,RZB50..LHD..(23S,30S)..(GCC,GEN)200108-200408

X 2,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB50,58,HZB50,RZB50..LHD..(23S,30S)..(GCC,GEN)200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iTRB50200408-201501

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN199907-200108

X 2,GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iHZB50..SCO;HZB50..RHD..STD..GEN199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iHZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iHZB50,TRB50,XZB50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iHZB50,TRB50,XZB50..LHD..(GCC,GEN)201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610GGRIP ASSY, ASSIST, NO.6 RH

main74610-10020-B3iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB42,HZB50..LHD..SRF..GEN200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB42,HZB50..LHD..SRF..GEN200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB4#,HZB50..(17S,19S,22S)..(ARL,SCO)199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,HZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

X 2,GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610HGRIP ASSY, ASSIST, NO.7 RH

main74610-10020-B3iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-B3iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB40,42,HZB50..RHD..5F199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB40,HZB50..ARL199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB42,HZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

X 2,GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610JGRIP ASSY, ASSIST, NO.1 LH

main74610-10020-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,HZB50..RHD..GEN199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB40,HZB50..ARL199301-200108

GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,HZB50..RHD201501-201612

MD.CHARCOAL,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-10020-B3iBB50,RZB40,50..CHI200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iHZB50..RHD..STD..GEN..5F199301-200108

GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

74610LGLIP ASSY, ASSIST, NO.3 LH

main74610-10020-B3iBB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN)200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

74610MGRIP ASSY, ASSIST, NO.4 LH

main74610-10020-B3iBB50,RZB40,50..(20S,26S,30S)..CHI200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB4#,HZB50..(17S,19S,22S)..(ARL,SCO)199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB40,42,HZB50..RHD..5F199301-199907

GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iHZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610NGRIP ASSY, ASSIST, NO.5 LH

main74610-10020-B3iBB50,HZB50,RZB50,TRB50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iHZB50..22S199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iHZB50..SCO;HZB50..RHD..STD..GEN199301-200108

GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iHZB50,XZB50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

main74690-36010-B0iHZB50,XZB50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

74610PGRIP ASSY, ASSIST, NO.6 LH

main74610-10020-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB40,42,HZB50..RHD..5F199301-199907

GREIGE,TRIM41

sub74610-10020

main74610-10020-E1iBB42,HZB50..RHD..(20S,22S,26S,30S)..(GEN,SCO)199301-200108

GREIGE,TRIM4#

sub74610-10020

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74610QGRIP ASSY, ASSIST, NO.7 LH

main74610-10020-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74610-10020

main74610-10020-E1iBB4#,50,HZB50..RHD..CBU..5F199301-200108

GREIGE,TRIM4#

sub74610-10020

main74610-10020-E1iBB4#,HZB50..(17S,19S,22S)..(ARL,SCO)199301-199907

GREIGE,TRIM41

sub74610-10020

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

main74690-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74611BGRIP, ASSIST

main74610-10020-A1iBB42,HZB50,RZB40,50..GCC,GEN199301-200108

IVORY,TRIM4#

sub74610-10020

main74610-10020-B3iHZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub74610-10020

74613PLUG, ASSIST GRIP

main74617-14010-A0iBB42,HZB50,RZB40,50..GCC,GEN199301-200108

IVORY,TRIM4#

sub74617-14010

main74617-14010-B3iHZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub74617-14010

74615EPLUG, FRONT ASSIST GRIP, NO.1 RH

main74615-60010-A0iBB42,HZB50..GCC,GEN,SCO199301-199505

IVORY,TRIM4#

sub74615-60010

main74615-60010-A0iBB40,HZB50..ARL199301-199505

W(*PSD),IVORY,TRIM4#

sub74615-60010

main74615-60010-A1iBB42,43,5#,HZB50,RZB40,50..(GCC,GEN,SCO)..CBU199505-200108

IVORY,TRIM4#

sub74615-60010

main74615-60010-A1iBB42,43,5#,HZB50,RZB40,50..(GCC,GEN,SCO)..CBU199505-200108

W(*PSD),IVORY,TRIM4#

sub74615-60010

main74615-60010-B0iBB50,RZB40,50..CHI200108-200211

W(*PSD),MD.CHARCOAL,TRIM1#

sub74615-60010

main74615-60010-B0iBB50,RZB40,50..CHI200108-200602

MD.CHARCOAL,TRIM1#

sub74615-60010

main74615-60011-B0iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#200602-201612

MD.CHARCOAL,TRIM1#

sub74615-60011

74616CPLUG, FRONT ASSIST GRIP, NO.1 LH

main74616-60010-A0iBB42,HZB50..GCC,GEN,SCO199301-199505

IVORY,TRIM4#

sub74616-60010

main74616-60010-A1iBB42,43,5#,HZB50,RZB40,50..(GCC,GEN,SCO)..CBU199505-200108

IVORY,TRIM4#

sub74616-60010

main74616-60010-B0iBB50,RZB40,50..CHI200108-200602

MD.CHARCOAL,TRIM1#

sub74616-60010

main74616-60011-B0iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200602-201612

MD.CHARCOAL,TRIM1#

sub74616-60011

74617APLUG, ASSIST GRIP

main74617-14010-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB40,HZB50..ARL199301-200108

GREIGE,TRIM4#

sub74617-14010

74617BPLUG, DOOR ASSIST GRIP

main74617-14010-B3iXZB50..TAIW200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74617-60010-B5iXZB50..TAIW201108-201501

MD.CHARCOAL,TRIM1#

sub74617-60010

sub74617-0S020

74617CPLUG, ASSIST GRIP

main74617-14010-B3iBB42,50,BZB40,50,HZB50..RHD..(17S,20S,21S,26S,30S)200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB4#,50,HZB50..RHD..CBU..5F199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..(20S,22S,26S,30S)..(GEN,SCO)..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

74617GPLUG, ASSIST GRIP, NO.3 RH

main74617-14010-B3iBB42,HZB50..RHD..GEN200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..GEN..5F199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..GEN..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

74617HPLUG, ASSIST GRIP, NO.4 RH

main74617-14010-B3iHZB50..LHD;BB42..LHD..WC;BB50..WOC..TD;BB42..LHD..SRF..WOC200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iBB50,RZB40,50..(20S,26S,30S)..CHI200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iHZB50..LHD;BB42..LHD..WC;BB50..WOC..TD;BB42..LHD..SRF..WOC200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iRZB40..26S;BB42,HZB50,RZB50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iHZB50..19S,22S;BB4#,50..17S,19S,20S199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,HZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB42..WOC..GCC199907-200108

X 2,GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iHZB50..30S..GEN201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617JPLUG, ASSIST GRIP, NO.5 RH

main74617-14010-B3iBB50,58,RZB50..(23S,30S)..WC..(GCC,GEN)200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iHZB50..RHD..GEN;HZB50..HRF..WOC..GEN200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iHZB50..RHD..GEN;HZB50..HRF..WOC..GEN200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iHZB50..LHD..WOC;HZB50..RHD..STD..GEN..5F;HZB50..LHD..SRF..WC..GEN199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB58,HZB50,RZB50..LHD..STD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB58,HZB50,RZB50..LHD..STD..CBU199301-199907

TAIWAN SPEC & W(FRONT SEAT HEAD REST),GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iHZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB5#,HZB50,RZB50..LHD..(23S,30S)199907-200108

X 2,GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iHZB50..30S..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

main74617-36010-B0iHZB50..30S..GEN201501-201612

MD.CHARCOAL,TRIM1#

74617KPLUG, ASSIST GRIP, NO.6 RH

main74617-14010-B3iHZB50..LHD;BB42..LHD..WC;BB50..WOC..TD;BB42..LHD..SRF..WOC200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iHZB50..LHD;BB42..LHD..WC;BB50..WOC..TD;BB42..LHD..SRF..WOC200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iHZB50..LHD;BB42..LHD..WC;BB50..WOC..TD;BB42..LHD..SRF..WOC200108-200408

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..(20S,22S,26S,30S)..(GEN,SCO)..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iHZB50..22S;BB4#,50..17S,19S,20S199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iHZB50..22S;BB4#,50..17S,19S,20S199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB42..22S;BB42..WOC..GCC199907-200108

X 2,GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617LPLUG, ASSIST GRIP, NO.7 RH

main74617-14010-B3iHZB50..WOC..GEN;BB42..LHD..SRF..GEN;HZB50..SRF..WC..GEN;BB42,50,HZB50..RHD..(21S,26S,30S)200108-201501

X 2,MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-B3iBB42..RHD..WOC;HZB50..SRF..GEN;BB42,50,BZB40,50,HZB50,XZB50..RHD..HRF..STD..GEN200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42..WC..GCC;BB42..LHD..26S..GEN;BB5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199907-200108

X 2,GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB4#,HZB50..(17S,19S,22S)..(ARL,SCO)199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB42,HZB50..LHD..SRF..GEN199705-199907

PANAMA SPEC & HI-BACK FABRIC REAR SEAT,GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iBB42,BZB40,XZB40,50..RHD..GEN201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iBB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617MPLUG, ASSIST GRIP, NO.1 LH

main74617-14010-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..5F199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..GEN..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iBB42,HZB50..RHD201501-201612

MD.CHARCOAL,TRIM1#

74617NPLUG, ASSIST GRIP, NO.2 LH

main74617-14010-B3iHZB50..RHD200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

74617PPLUG, ASSIST GRIP, NO.3 LH

main74617-14010-B3iBB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN)200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,58,HZB50,RZB40,50..LHD..CBU199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iHZB50..EX..ARL199309-200108

GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

74617QPLUG, ASSIST GRIP, NO.4 LH

main74617-14010-B3iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..(20S,26S,30S)199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iHZB50..ARL;BB4#,50..17S,19S,20S199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iHZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617RPLUG, ASSIST GRIP, NO.5 LH

main74617-14010-B3iBB50,HZB50,RZB50,TRB50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iHZB50..SCO;HZB50..RHD..STD..GEN..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iBB42,HZB50..(DX,STD)..(ARL,SCO)199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iHZB50..26S;HZB50..30S..GCC;TRB50,XZB50..STD..(GCC,GEN)201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iHZB50,XZB50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617SPLUG, ASSIST GRIP, NO.6 LH

main74617-14010-B3iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..(20S,22S,26S,30S)..(GEN,SCO)..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-14010-E1iHZB50..ARL;BB4#,50..17S,19S,20S199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-36010-B0iHZB50..30S..GEN201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iBB42,BZB40,HZB50,XZB40,50..RHD..GEN201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

74617TPLUG, ASSIST GRIP, NO.7 LH

main74617-14010-B3iHZB50..ARL200108-201501

MD.CHARCOAL,TRIM1#

sub74617-14010

main74617-14010-E1iBB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S)199301-200108

GREIGE,TRIM4#

sub74617-14010

main74617-14010-E1iBB42,HZB50..RHD..(20S,22S,26S,30S)..(GEN,SCO)..5F199301-199907

GREIGE,TRIM41

sub74617-14010

main74617-36010-B0iHZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD201501-201612

MD.CHARCOAL,TRIM1#

main74617-36010-B0iHZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD201501-201612

W(REAR NO.4 SEAT=2+2),MD.CHARCOAL,TRIM1#

9016760015

main90167-60015

9018906006

main90189-06006

9321016016

main93210-16016

9321016020

main93210-16020

9321016025

main93210-16025

9326056020

main93260-56020

9331116014

main93311-16014

42 parts on this diagram · 5 diagrams in section
