Toyota COASTER — ARMREST & VISOR

61890HAMMER ASSY, BACK WINDOW GLASS

main61890-90B01×2iBB20,21,RB20198205-199301

74310VISOR ASSY, RH

main74310-90B00iBB2#,HB30,RB20..RHD..(DLX,STD)..GEN198205-198808

sub74310-90B04

main74310-90B00-08iHZB30..RHD..30S199001-199301

IVORY,IVORY

sub74310-90B04

main74310-90B01iBB20,21,HB30,RB20..20S,23S198205-198808

main74310-90B01-08iBB32..4FC199001-199301

TYPE B,IVORY,XXXX

main74310-90B02iHB30,RB20..EX,EXS198205-198808

sub74310-90B05

main74310-90B02-08iHB30,HZB30,RB20..EX,EXS198808-199301

TYPE C,IVORY,IVORY

sub74310-90B05

main74310-90B03iBB20,21..16S198303-198808

main74310-90B03-08iBB21..16S198808-199301

TYPE B,IVORY,IVORY

74320VISOR ASSY, LH

main74310-90B00iBB20,21,FB30,HB30,RB20..LHD..(DLX,STD)198205-198808

sub74310-90B04

main74310-90B00-08iBB32..4FC199001-199301

TYPE A,IVORY,IVORY

sub74310-90B04

main74310-90B01iBB20,21,HB30,RB20..20S,23S198205-198808

main74310-90B01-08iBB32..4FC199001-199301

TYPE B,IVORY,XXXX

main74310-90B02iHB30,RB20..EX,EXS198205-198808

sub74310-90B05

main74310-90B02-08iHB30,HZB30,RB20..EX,EXS198808-199301

TYPE C,IVORY,IVORY

sub74310-90B05

main74310-90B03iBB20,21..16S198303-198808

main74310-90B03-08iBB21..16S198808-199205

TYPE B,IVORY,IVORY

74333CASE, VISOR

main74333-90B00×2iHB30..23S,26S;BB20,21,RB20..16S,17S,20S198205-198808

main74333-90B00-08×2iBB21,FB30,RB20..(DLX,STD)..(GEN,ME)199001-199301

IVORY,IVORY

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-10020-08iBB2#,FB30,HB30,RB20198205-199301

ASSISTANT SIDE,IVORY,IVORY

main74610-10020-22iBB32..4FC199001-199301

BLACK,DARK WINE

main74610-90B00iBB2#,FB30,HB30,RB20198205-198701

DRIVER SIDE

main74610-90B01iBB20..RHD..STD..HRF..GEN198405-198510

ASSISTANT SIDE,HONG KONG SPEC

main74610-95260-08iBB32..4FC199001-199301

DRIVER SIDE,IVORY,IVORY

74609GRIP ASSY, BACK DOOR ASSIST

main74610-10020-08iBB20,21,HB30..LHD..STD..(26S,30S)198510-199301

IVORY,IVORY

74613PLUG, ASSIST GRIP

main74617-14010-08×2iBB2#,FB30,HB30,RB20198205-199301

IVORY,IVORY

main74617-14010-32×2iBB23,HZB30198808-199301

BLACK,DARK WINE

main74617-90B00×2iBB20..RHD..STD..HRF..GEN198405-198510

ASSISTANT SIDE,HONG KONG SPEC

74617PLUG, BACK DOOR ASSIST GRIP

main74617-14010-08×2iBB20,21,HB30..LHD..STD..(26S,30S)198510-199301

IVORY,IVORY

74710EXTINGUISHER ASSY

main74710-90B02iBB20,21,FB30,HB30,RB20..LHD198205-199301

main74710-90B03iBB21..RHD..GEN;BB20,HB30,RB20..RHD..(22S,26S,30S)198205-199301

74710ABRACKET, EXTINGUISHER

main74713-90B00iHZB30199001-199301

main74713-90B01iBB20,21,FB30,HB30,RB20..LHD198510-199301

W/MECHANICAL *AUD

74810PULL ASSY, DOOR, INSIDE

main69271-90B00iBB2#,FB30,HB30,RB20198205-198808

sub69151-95600

main69271-90B00-06iBB21,FB30,HB30,HZB30,RB20198808-199108

SABLE,SABLE

sub69151-95600

9011906059

main90119-06059

9015960188

main90159-60188

9091924005

main90919-24005

9161160616

main91611-60616

9321016016

main93210-16016

9324016016

main93240-16016

9354054016

main93540-54016

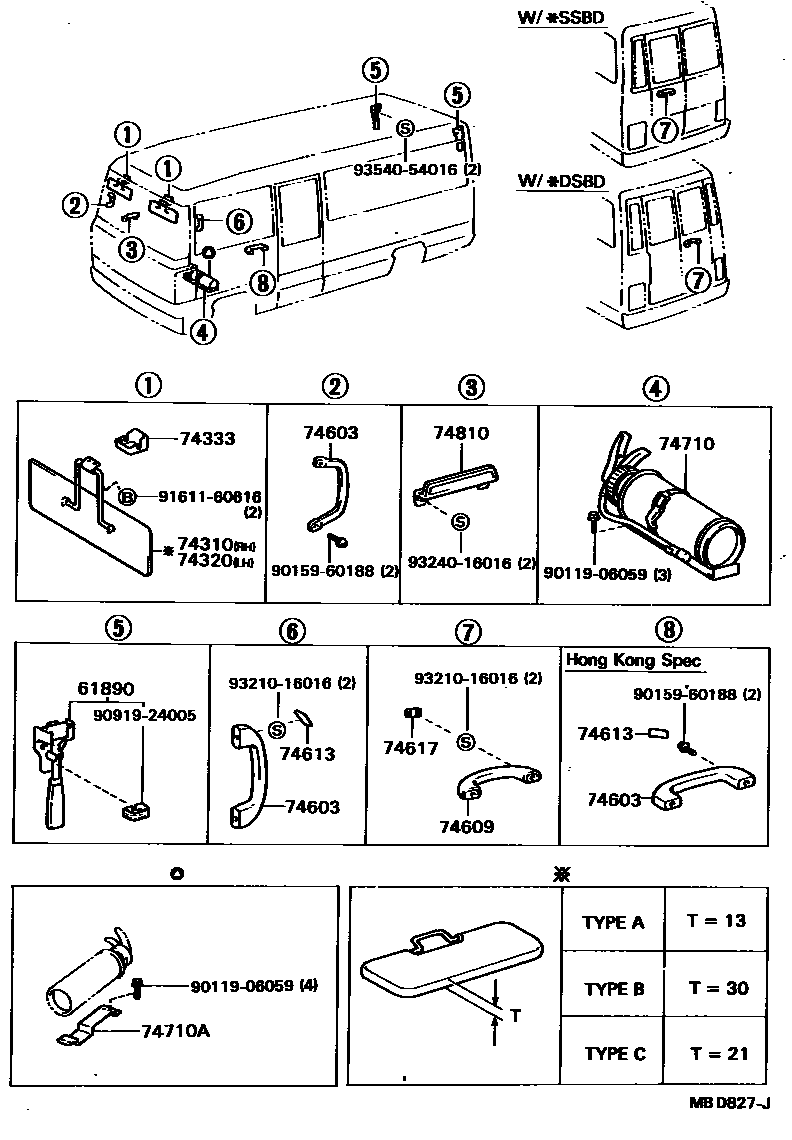

18 parts on this diagram · 1 diagram in section
