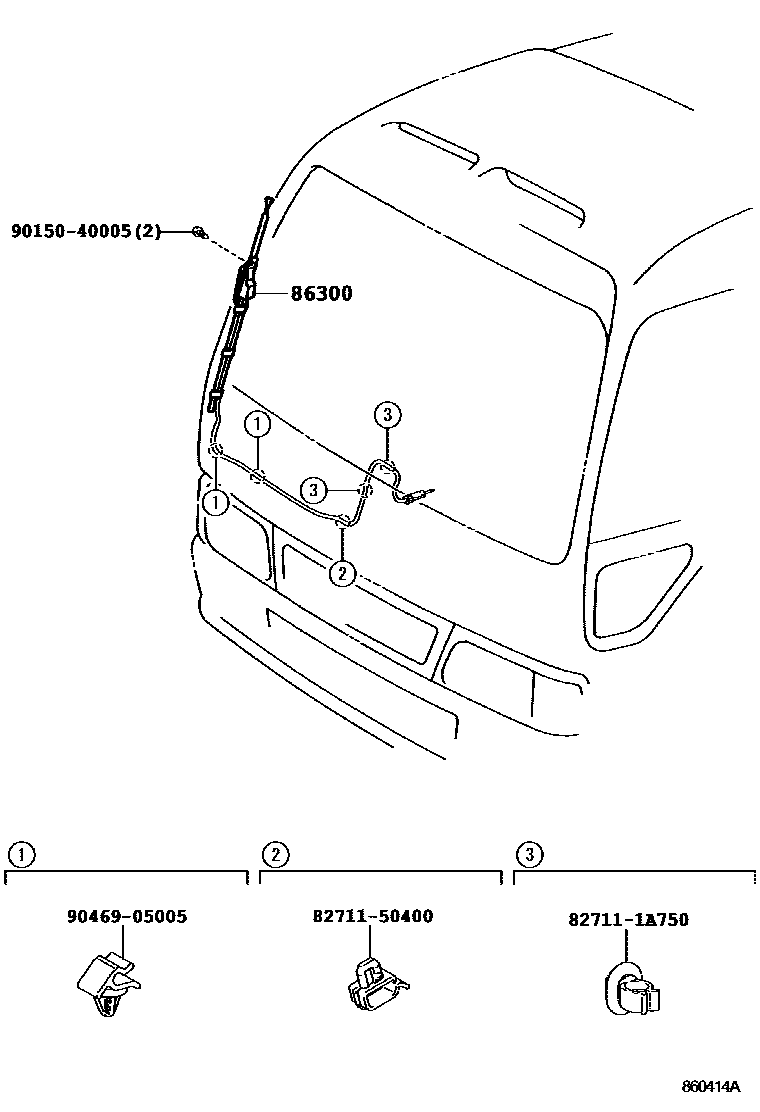

Toyota COASTER — ANTENNA

0001 1 0002 1 0003 1

86300ANTENNA ASSY, W/HOLDER

main86300-36030iBB4#,HZB50,RZB40,50..CBU199301-199705

main86300-36040iRZB40..GEN;RZB40..SRF..GCC;BB42,HZB50,XZB59..RHD;RZB50,XZB50..(20S,21S,30S)..(ARL,GCC,GEN)199705-201005

sub86300-36070

main86300-36060iBB42,HZB50,XZB59..RHD;XZB50..RHD..(20S,21S)..WC200708-201501

main86300-36070iBB42..LHD..HRF201005-201501

main86300-36080iXZB59;BB42,HZB50,TRB40,50,XZB40,50..20S,21S,26S,30S201501

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

8271150400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50400

9015040005

main90150-40005

9046905005

main90469-05005

5 parts on this diagram · 3 diagrams in section
