Toyota COASTER — ALTERNATOR

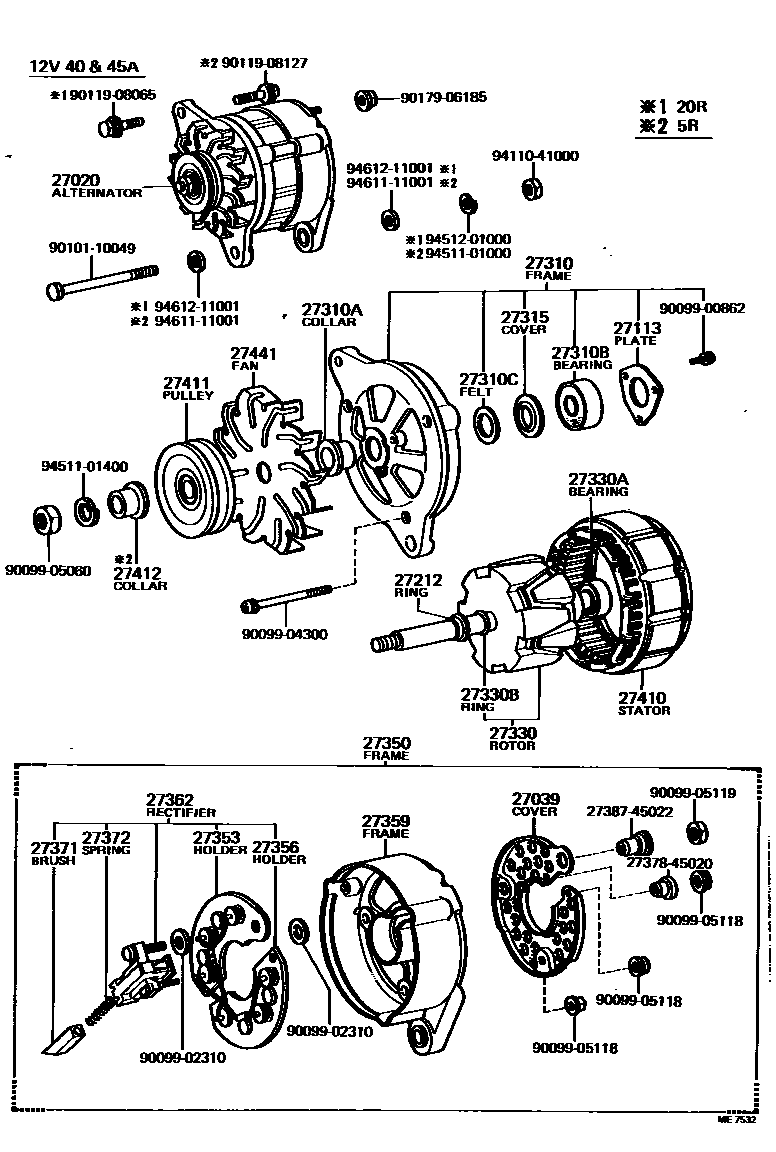

Parts diagram
27020ALTERNATOR ASSY
main27020-36061i197708-197911
12V 45A
main27020-38070i197708-197808
12V 65A
main27020-38080i197708-197911
12V 55A,COOLER
main27020-38081i197911-198204
12V 55A,COOLER
main27020-38100i197808-197903
12V 60A,W/O IC REGULATOR
main27020-38101i197903-197905
12V 60A,W/O IC REGULATOR
main27020-38102i197905-198204
12V 60A,W/O IC REGULATOR
main27020-38120i197911-198204
12V 45A,12V 45A
main27020-40065i197708-197911
12V 40A
main27020-56023i197708-198008
12V 35A
main27020-56032i197708-197911
24V 20A
main27020-56070i197708-197911
24V 65A
main27020-57010i197911-198008
24V 20A
main27020-57040i197911-198007
24V 65A
main27020-57041i198007-198008
24V 65A
main27020-57061i198008-198204
12V 40A
main27020-57091i198010-198204
24V 20A
main27020-57121i198008-198109
24V 55A
main27020-57122i198109-198204
24V 55A
27039COVER, ALTERNATOR REAR END
main27039-15030i197911-197912
12V 45A
main27039-18011i197912-198204
12V 45A
main27039-26020i197708-197911
12V 40A
main27039-36070i197708-197911
12V 45A
main27039-45050i197708-198204
12V 55A,65A
main27039-45110i197808-197911
12V 60A
main27039-56070i197708-198008
24V 65A
main27039-56090i197911-198008
24V 20A
27113PLATE, BEARING RETAINER, ALTERNATOR
main27312-31011i197708-197911
12V 40A,45A
main27312-45010i197708-198204
12V 55A,65A
main27312-56011i197708-197911
12V 35A,24V 20A
main27312-56070i197708-197911
24V 65A
27212RING, SPACE(FOR ALTERNATOR ROTOR)
main27212-39050i197708-198204
12V 40A,45A,55A,60A,65A
main27212-56010i197911-198008
12V 35A
main27412-45070i197808-198204
12V 60A
main27412-54040i197911-198008
24V 20A
main90099-20014i197708-198008
24V 65A
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-18010i197911-198204
12V 45A
main27310-34030i197708-197911
12V 40A; 12V 45A
main27310-38020i197708-197808
12V 65A
main27310-38061i197808-198204
12V 60A
main27310-45050i197708-198204
12V 55A
main27310-54011i197911-198008
24V 20A
main27310-56011i197911-198008
12V 35A
main27310-56070i197708-198008
24V 65A
main27310-57061i198008-198204
12V 40A,24V 20A
main27310-57110i198008-198204
24V 55A
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
main27314-56010i197708-197911
12V 35A & 24V 20A
main27412-31040i197708-197911
12V 45A
main27412-44030i197911-198204
12V 45A
main27412-45012i197708-198204
12V 55A,65A
main90099-19075i197708-197911
12V 40A
main90099-19251i197911-198008
24V 20A
main90099-20014i197708-198008
24V 65A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10082i197708-198008
12V 35A
main90099-10109i197708-197911
12V 40A,45A
main90099-10110i197708-198204
12V 55A,65A
main90099-10115i197808-198008
12V 60A
main90099-10120i198008-198204
12V 40A,24V 20A,55A
main90099-10125i198008-198204
12V 60A
main90099-10126i197911-198204
12V 45A
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
main90099-02004i197708-197911
12V 40A,45A
main90099-02207i198008-198204
12V 40A,24V 20A; 24V 55A
27315COVER, ALTERNATOR FELT, INNER NO.1
main27313-31011i197708-197911
12V 40A,45A
main27313-57060i198008-198204
12V 40A,NO.2
main27315-56070i197911-198008
24V 20A & 65A
27330ROTOR ASSY, ALTERNATOR
main27330-33010i197708-197911
12V 40A
main27330-45020i197708-198204
12V 45A
main27330-45050i197708-198204
12V 55A,65A
main27330-45090i197808-198204
12V 60A
main27330-46031i197708-198008
12V 35A
main27330-54040i198008-198204
12V 40A,24V 20A
main27330-54050i197911-198008
24V 20A
main27330-56030i197708-197911
24V 20A
main27330-56070i197708-198008
24V 65A
main27330-56130i198109-198204
24V 55A
main27330-57121i198008-198109
24V 55A
27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10103i197708-197911
12V 40A,45A
main90099-10111i197911-198204
12V 45A
main90099-10116i197708-198204
12V 55A,60A
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
main90099-07048i197708-198204
12V 40A,45A,55A,60A,65A
main90099-07103i197708-197911
12V 35A,24V 20A
main90099-07108i198008-198204
12V 40A,24V 20A,55A
27350FRAME ASSY, RECTIFIER END
main27350-26051i197708-197911
12V 40A
main27350-36071i197708-197911
12V 45A
main27350-38070i197708-197808
12V 65A
main27350-38080i197708-198204
12V 55A
main27350-56013i197911-198008
12V 35A
main27350-56090i197911-198008
24V 20A
main27350-56120i198109-198204
24V 55A
main27350-57061i198008-198204
12V 40A,24V 20A
main27350-57111i198008-198109
24V 55A
27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
main27353-26020i197708-197911
12V 40A
main27353-36070i197708-197911
12V 45A
main27353-45040i197708-197808
12V 65A
main27353-45050i197708-198204
12V 55A
main27353-54020i197911-198008
24V 20A
main27353-56011i197708-197911
12V 35A,24V 20A
main27353-56070i197708-198008
24V 65A
27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
main27356-26020i197708-197911
12V 40A
main27356-36070i197708-197911
12V 45A
main27356-45040i197708-197808
12V 65A
main27356-45050i197708-198204
12V 55A
main27356-54020i198008-198204
12V 40A,24V 20A
main27356-56011i197911-198008
12V 35A
main27356-56070i197708-198008
24V 65A
27359FRAME, ALTERNATOR RECTIFIER END
main27359-13050i197911-198204
12V 45A
main27359-28010i197905-198204
12V 60A
main27359-38070i197708-198204
12V 55A,65A
main27359-44032i197708-197911
12V 40A; 12V 45A
main27359-45121i197808-197903
12V 60A
main27359-45122i197903-197905
12V 60A
main27359-56070i197708-198008
24V 65A
main27359-56090i197911-198008
24V 20A
27362RECTIFIER ASSY, W/BRUSH
main27362-15030i197911-198204
12V 45A
main27362-26040i197708-197911
12V 45A
main27362-38100i197905-198009
12V 60A
main27362-38101i198009-198011
12V 60A
main27362-38102i198011-198204
12V 60A
main27362-45011i197708-198204
12V 55A
main27362-45041i197708-197808
12V 65A
main27362-45120i197808-197905
12V 60A
27371BRUSH, ALTERNATOR
main27371-31011×2i197708-198008
12V 40A,45A,55A,65A
main27371-44070×2i197808-198008
12V 60A
main27371-56070×2i197911-198008
24V 20A,65A
27372SPRING, ALTERNATOR BRUSH
main27372-31011×2i197708-198008
12V 40A,45A,55A,65A
main27372-56070×2i197911-198008
24V 20A,65A
main90099-17114×2i197808-198008
12V 60A
27410STATOR ASSY, ALTERNATOR
main27410-26020i197708-197911
12V 40A
main27410-26030i197708-197911
12V 45A
main27410-38120i197911-198204
12V 45A
main27410-45050i197708-198204
12V 55A,65A
main27410-45120i197808-198204
12V 60A
main27410-46031i197708-198008
12V 35A
main27410-54020i198008-198204
12V 40A
main27410-54030i197911-198008
24V 20A
main27410-56030i197708-197911
24V 20A
main27410-56070i197708-198008
24V 65A
main27410-57120i198008-198204
24V 55A
27411PULLEY, ALTERNATOR
main27411-25010i197708-197808
12V 65A
main27411-31042i197808-198204
12V 60A
main27411-38080i197708-198204
12V 55A
main27411-45010i197708-197911
12V 40A
main27411-56020i197911-198008
12V 35A
main27411-56070i197708-197911
24V 65A
main27411-57010i197911-198008
24V 20A
main27411-57040i197911-198008
24V 65A
main27411-57061i198008-198204
12V 40A,24V 20A
main27411-57110i198008-198108
24V 55A
main27411-57120i198108-198204
24V 55A
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
main27412-31040i197911-198204
12V 45A
main27412-44030i197708-197911
12V 45A,55A,60A,65A
27441FAN, ALTERNATOR
main27441-34030i197708-198204
12V 40A,45A
main27441-45050i197708-198204
12V 55A,65A
main27441-45110i197808-198204
12V 60A
main27441-46031i197708-197911
12V 35A,24V 20A
main27441-54040i197911-198008
24V 20A
main27441-56070i197708-198008
24V 65A
main27441-57030i198008-198204
24V 55A
2737845020INSULATOR, ALTERNATOR, NO.1
main27378-45020
2738745022INSULATOR, TERMINAL
main27387-45022
9009900862
main90099-00862
9009902310
main90099-02310
9009904300
main90099-04300
9009905060
main90099-05060
9009905118
main90099-05118
9009905119
main90099-05119
9010110049
main90101-10049
9011908065
main90119-08065
9011908127
main90119-08127
9017906185
main90179-06185
9411041000
main94110-41000
9451101000
main94511-01000
9451101400
main94511-01400
9451201000
main94512-01000
9461111001
main94611-11001
9461211001
main94612-11001

41 parts on this diagram · 12 diagrams in section

ALTERNATOR for Toyota COASTER

This section contains 119 genuine Toyota parts for the ALTERNATOR system of the Toyota COASTER. Key components include: ALTERNATOR ASSY, CAP, ALTERNATOR TERMINAL, TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR, COVER, ALTERNATOR REAR END, PLATE, REGULATOR COVER.
