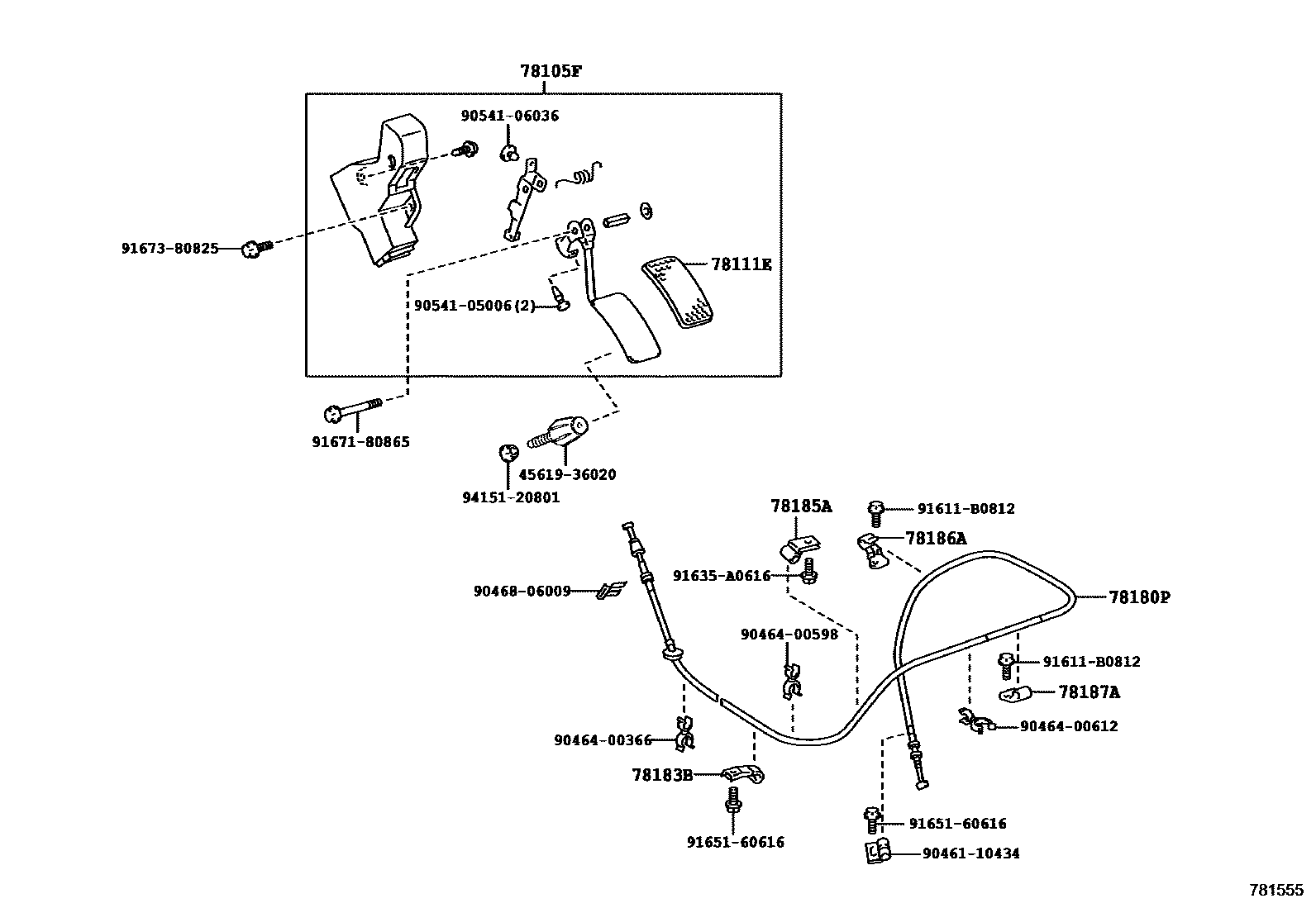

Toyota COASTER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

78105FLINK SUB-ASSY, ACCELERATOR

main78105-36080iBZB60201701-201712

main78105-36090iBB60..LHD201701-201907

main78105-36100supersedes 78105-36100iHZB70..19S201701

78111EPAD, ACCELERATOR PEDAL

main78111-95110supersedes 78111-95110iBB60,XZB60..20S,26S201701-201907

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-36031iBB60..RHD201701-201907

main78180-36050supersedes 78180-36050iHZB70..23S..GCC202201-202412

main78180-36070iHZB60,70..RHD202201

main78180-36080iBB60..LHD201701-201907

main78180-36270iBZB70201701-202012

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-36010iBB60..RHD201701-201907

main78183-36020supersedes 78183-36020iHZB70..23S..WOC202201-202312

main78183-36060iHZB60,70..RHD202201

main90461-10650iBB60..LHD201701-201907

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-36010supersedes 78185-36010iHZB70..23S..WOC202201-202312

main78185-36020iBB60201701-201907

main78185-36090iBZB60201701-201712

78186ACLAMP, ACCELERATOR CONTROL CABLE, NO.3

main78185-36030iBB60..LHD201701-201907

78187ACLAMP, ACCELERATOR CONTROL CABLE, NO.4

main78187-36010supersedes 78187-36010iHZB70..23S..GCC202201-202412

main78187-36020iBB60..LHD201701-201907

4561936020COVER, KNUCKLE STOPPER

main45619-36020

9046110434

main90461-10434

9046400366

main90464-00366

9046400598

main90464-00598

9046400612

main90464-00612

9046806009

main90468-06009

9054105006

main90541-05006

9054106036

main90541-06036

91611B0812

main91611-B0812

91635A0616

main91635-A0616

9165160616

main91651-60616

9167180865

main91671-80865

9167380825

main91673-80825

9415120801

main94151-20801

21 parts on this diagram · 7 diagrams in section
