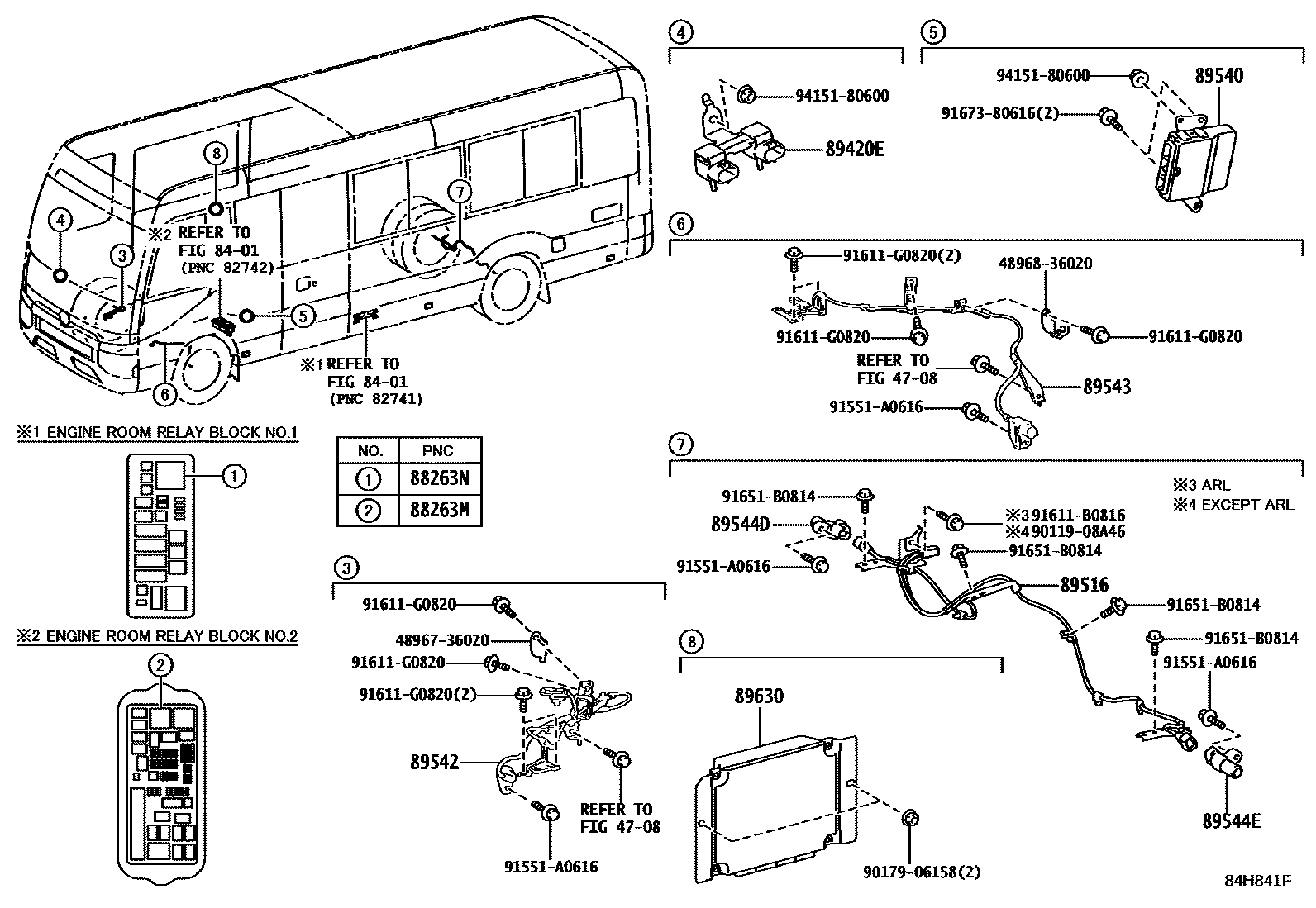

Toyota COASTER — ABS & VSC
4708
8401
88263MRELAY, ABS SOLENOID
ABS-WITH
ABS-WITH&EXHAUST RETARDER-WITH
88263NRELAY, ABS MOTOR
ABS-WITH
ABS-WITH&EXHAUST RETARDER-WITH
89420ESENSOR ASSY, VACUUM
ABS-WITH(ABS & VSC)
ABS-WITH
ABS-WITH
89516WIRE, SKID CONTROL SENSOR
ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
ABS-WITH(ABS & VSC)
ABS-WITH
89540COMPUTER ASSY, SKID CONTROL
ABS-WITH
ABS-WITH&EXHAUST RETARDER-WITH
89542SENSOR, SPEED, FRONT RH
ABS-WITH
ABS-WITH(ABS & VSC)
ABS-WITH
ABS-WITH
ABS-WITH(ABS & VSC)
89543SENSOR, SPEED, FRONT LH
ABS-WITH
ABS-WITH(ABS & VSC)
ABS-WITH
ABS-WITH
ABS-WITH(ABS & VSC)
89544DSENSOR, SKID CONTROL, REAR RH
ABS-WITH
89544ESENSOR, SKID CONTROL, REAR LH
ABS-WITH
89630COMPUTER ASSY, TRANSLATE
4896736020END, SENSOR CONNECTING ROD, NO.1
main48967-36020
4896836020END, SENSOR CONNECTING ROD, NO.2
main48968-36020
9011908A46
main90119-08A46
9017906158
main90179-06158
91551A0616
main91551-A0616
91611B0816
main91611-B0816
91611G0820
main91611-G0820
91651B0814
main91651-B0814
9167380616
main91673-80616
9415180600
main94151-80600
22 parts on this diagram · 4 diagrams in section
