Toyota COASTER — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iBB21,HZB30..WOC..(GEN,ME)199001-199301

12V

main85310-90B00iBB21,HZB30199001-199301

24V

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199011

85342HOLDER, WASHER NOZZLE

main85342-95010×2iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

85345NOZZLE, WINDSHIELD WASHER

main85035-90B00×2iBB2#,RB20198205-198606

main85035-90B02×2iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198606-199301

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

85355VALVE, WINDSHIELD WASHER HOSE

main85349-89122iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198703-199301

main85355-87201iBB2#,FB30,HB30,RB20198205-198703

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

sub85361-95A02

85364DCOVER, WINDSHIELD WASHER JAR

main85364-90B00iBB20,21,HB30,HZB30..EX,EXS198303-199301

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iBB2#,HB30,HZB30,RB20..RHD198205-199301

L=1000(*H,L=580),W/TACHO METER

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

L=1100(*H,L=750)

9009932089

main90099-32089

9017906158

main90179-06158

9046108972

main90461-08972

9046709007

main90467-09007

9161160614

main91611-60614

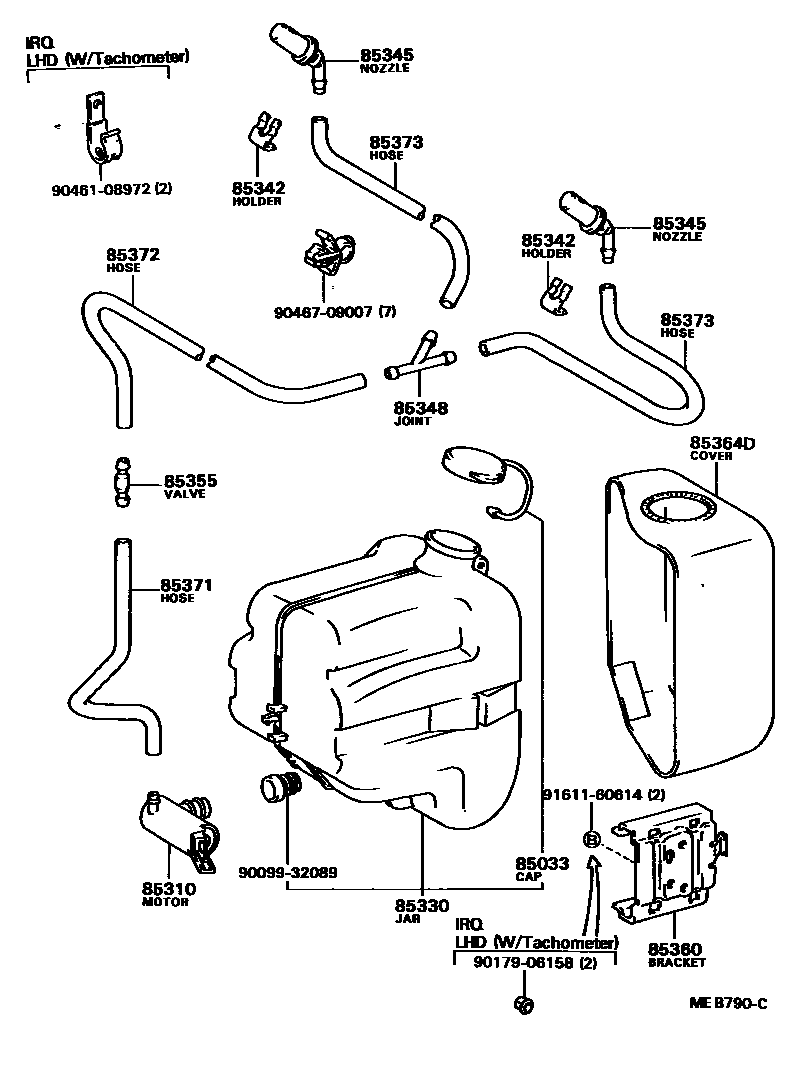

17 parts on this diagram · 1 diagram in section
