Toyota COASTER — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-39010i200608-200907

main90038-39016i200907-201501

main90080-91082i199309-199508

main90916-02215i199907-200408

L=1220X2

main90916-02239i199907-200408

L=1220

main90916-02330i199301-199801

L=1005X2

main90916-02331i199301-199605

main90916-02336i199907-200108

main90916-02375i199907-200108

L=1295X2

main90916-02452i199801-199907

L=1005X2

main90916-02639i200708-201110

main90916-02709i201111-201501

main99365-80890i199508-199705

mainSZ91049277i201501

44310ABELT, V(FOR VANE PUMP)

main90916-02572i200408-200708

L=1100

main99364-71100i199309-199907

main99364-81100i199907-200211

L=1100

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02227i199907-200211

L=1120

main90916-02387i199301-199506

main90916-02419i199506-199703

main90916-02444i200608-201501

L=1160X2

main90916-02451i199703-199907

L=1380

main90916-02588i200408-200708

L=980

main90916-02589i200408-201501

L=1350

main99365-20980i199907-200108

L=980

main99365-H0990i200708-201501

L=990

main99367-31350i199907-200408

L=1350

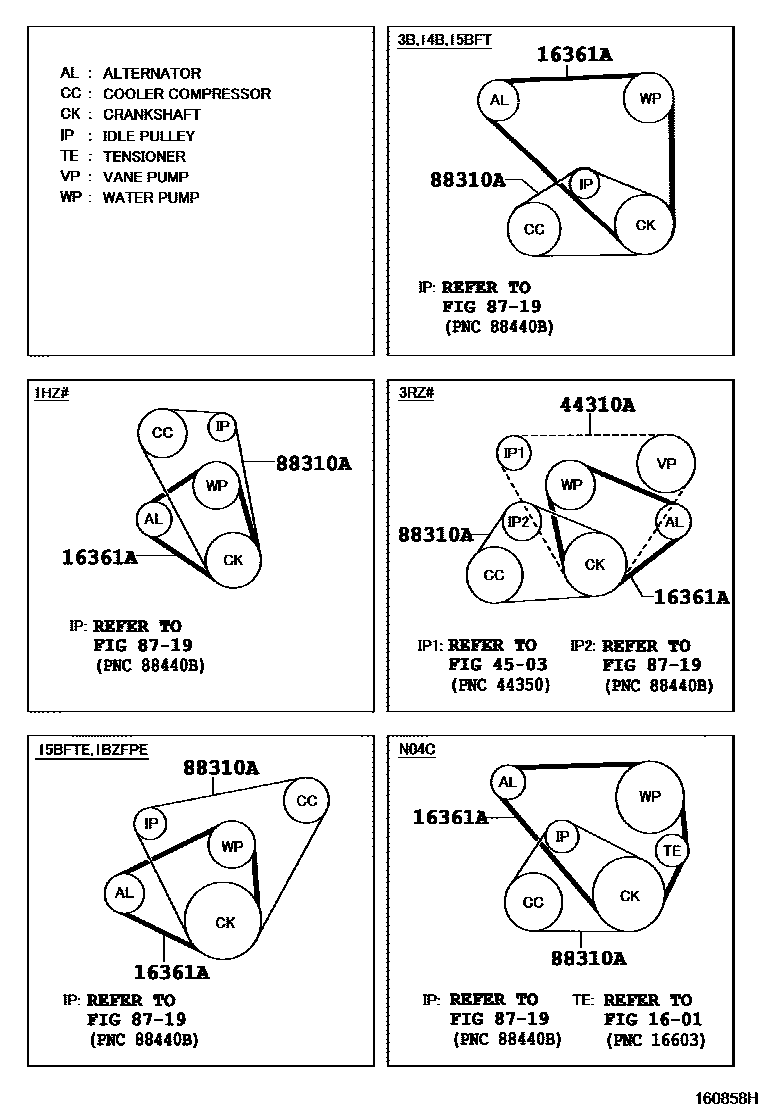

6 parts on this diagram · 2 diagrams in section

V-BELT for Toyota COASTER

This section contains 7 genuine Toyota parts for the V-BELT system of the Toyota COASTER. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE.
