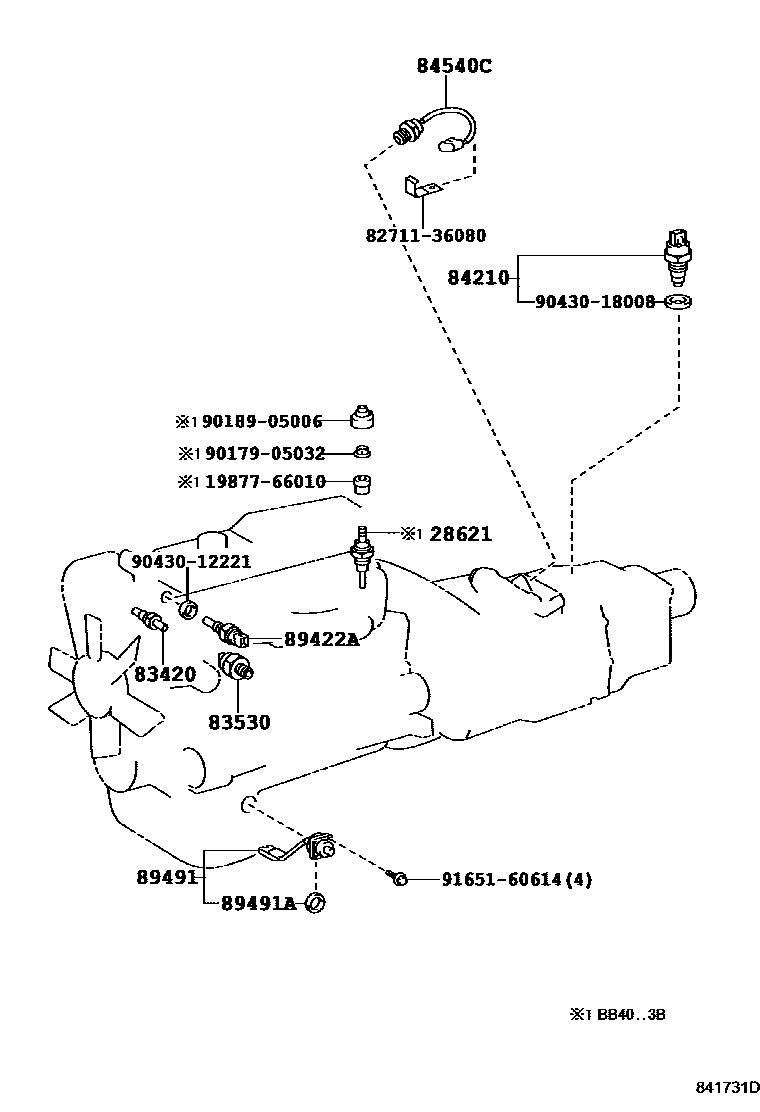

Toyota COASTER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE & TRANSMISSION 0009 1ENGINE & TRANSMISSION 0010 1ENGINE & TRANSMISSION 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL & COWL 0016 1INSTRUMENT PANEL & COWL 0017 1INSTRUMENT PANEL & COWL 0018 1INSTRUMENT PANEL & COWL 0019 1INSTRUMENT PANEL & COWL 0020 1INSTRUMENT PANEL & COWL 0021 1INSTRUMENT PANEL & COWL 0022 1INSTRUMENT PANEL & COWL 0023 1STEERING 0024 1STEERING 0025 1STEERING 0026 1ENGINE ROOM 0027 1ENGINE ROOM 0028 1ENGINE ROOM 0029 1ENGINE ROOM 0030 1ENGINE ROOM 0031 1DOOR,ROOF,FLOOR & BACK DOOR 10033 1DOOR,ROOF,FLOOR & BACK DOOR 10034 1DOOR,ROOF,FLOOR & BACK DOOR 10035 1DOOR,ROOF,FLOOR & BACK DOOR 2

28621RESISTOR, GLOW PLUG

main28621-57011i3B..BB40199301-199907

main28621-68020i1HZT..HZB50;1HZ..HZB50..19S,22S199301-199705

COLD SPEC

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main83420-16050iRZB40,50199309-199411

main83420-20040iRZB40,50199411-199907

main83420-37020iXZB50..IV200608-201311

mainS834201250iXZB40,5#201501

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iHZB50199301-199803

main83530-14060iRZB40,50199309-199411

main83530-14070iBB4#,5#199301-199803

main83530-28010iBB42,BZB40,50201501

DENSO

main83530-28020iTRB40,50200708-201501

DENSO

main83530-28030iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199907-200108

main83530-30090iRZB40,50199411-199803

main83530-37040iXZB50..IV200608-201311

main83530-60010iBZB50..EX;BB5#..TDEFI200408-200608

YAZAKI

main83530-60020iTRB40,50201501

YAZAKI

main83530-E0220iXZB40,5#201501

sub83530-E0250

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iBB4#,5#,HZB50,RZB40,50..5F199301-199907

main84210-52050iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F201501-201612

84540SWITCH ASSY, NEUTRAL START

main84540-36030iHZB50..4FC199301-199505

main84540-65010iHZB50..4FC199505-199907

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36090iBB42,5#,HZB50200408-201501

main84540-37020iXZB40,5#..5F201501-201612

sub84540-36100

89422ASENSOR, WATER TEMPERATURE

main89422-20010iBZB40,50201501

89491SENSOR, ENGINE OIL LEVEL

main89491-26111iXZB40,59;XZB50..(20S,21S)..WC200608-201501

main89491-36070iBB4#,5#199301-199907

main89491-36071iBB42,BZB40,50201501

main89491-36080iHZB50199301-199907

main89491-36090iRZB40,50199309-199711

main89491-36091iRZB40..HRF..GCC200408-200602

main89491-36110iTRB40,50201501

main89491-37020iBB42..LHD..HRF..26S..WC199907-200108

USA SPECIAL PACKAGE

main89491-60060iHZB50200408-201501

mainS834601580iXZB40,5#201501

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iHZB50,RZB40,50..ARL,CHI199907-200211

main90430-27001iBB50..CHI199907-200211

1987766010

main19877-66010

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9017905032

main90179-05032

9018905006

main90189-05006

9043012221

main90430-12221

9043018008

main90430-18008

9165160614

main91651-60614

16 parts on this diagram · 34 diagrams in section
