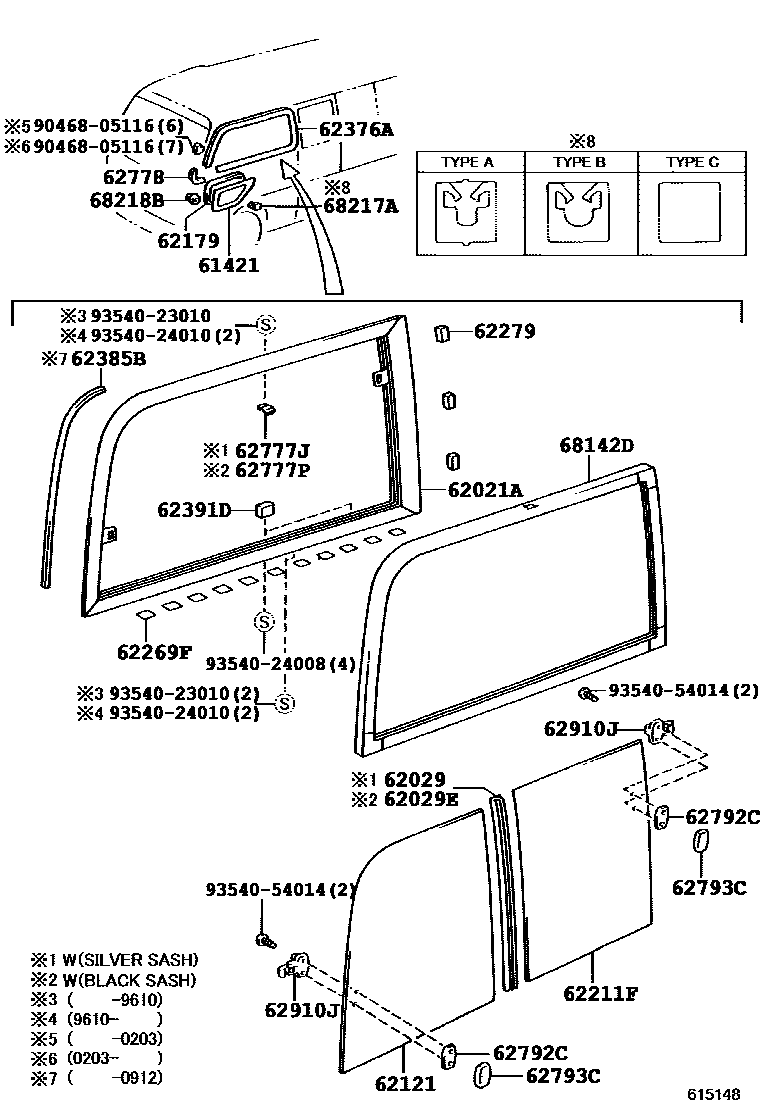

Toyota COASTER — SIDE WINDOW

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1FOLDING DOOR 0007 1GLIDE DOOR 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0017 1 0018 1 0019 1 0022 1

61421GLASS, SIDE LOWER WINDOW

main62171-36020iBB4#,HZB50..RHD..DSL199301-199705

*TT,T=3.5,BLUE

main62171-36050iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

*TT,T=3.5,BLUE

main62171-36080iXZB59;XZB50..RHD..(20S,21S)..WC;BB42,BZB40,50,HZB50,XZB40..RHD..STD200408-201501

*TT,T=3.5,GREEN

main62171-36090iBB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN199907-200108

*TT,T=3.5,GREEN

62021AFRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER LH

main62021-36010iBB4#,HZB50..RHD..(DX,STD)..DSL199301-199410

sub62256-36020

sub93540-23010

main62021-36011iBB4#,HZB50..RHD..(DX,STD)..DSL199410-199511

main62021-36012iBB50..RHD..(DX,STD)..CBU200408-200608

SILVER

main62021-36030iHZB50..RHD..EX199301-199410

sub62256-36020

sub93540-23010

main62021-36031iHZB50..RHD..EX199410-199511

main62021-36032iBB50,HZB50..RHD..EX199511-199907

BLACK

62029FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

main62029-36010iBB4#,HZB50..RHD..(DX,STD)..DSL199301-199410

main62029-36030iBB4#,HZB50..RHD..(DX,STD)..DSL199410-199511

main62029-36031iBB4#,HZB50..RHD..(DX,STD)..DSL199511-199801

main62029-36032iBB4#,HZB50..RHD..(DX,STD)199801-199902

main62029-36033iBB4#,HZB50..RHD..(DX,STD)199907-200005

main62029-36034iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200005-200108

62029EFRAME SUB-ASSY, SIDE WINDOW, CENTER LH

main62029-36020iHZB50..RHD..EX199301-199410

main62029-36040iHZB50..RHD..EX199410-199511

main62029-36041iBB50,HZB50..RHD..EX199511-199801

main62029-36042iBB50,HZB50..RHD..EX199801-199902

main62029-36043iBB50,HZB50..RHD..EX199902-199907

main62029-36044iXZB5#..RHD201501

62121GLASS, FRONT SIDE WINDOW, FRONT LH

main62121-36010iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199301-199511

*TEM,T=5.0,CLEAR

main62121-36011iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199511-199705

*TEM,T=5.0,CLEAR

main62121-36020iBB4#..RHD..WC;HZB50..RHD..HRF..(20S,22S,30S)..WC199301-199308

*TT,T=5.0,BLUE

main62121-36021iBB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL199511-199705

*TT,T=5.0,BLUE

main62121-36030iHZB50..RHD..EX..(ARL,GEN)199301-199511

*TEM,T=5.0,BRONZE

main62121-36031iHZB50..RHD..EX..GEN199511-199705

*TEM,T=5.0,BRONZE

main62121-36050iXZB59;XZB50..RHD..(20S,21S)..WC;BB42,BZB40,50,HZB50,XZB40..RHD..STD200408-201501

*TT,T=5.0,GREEN

main62121-36060iHZB50..RHD..EX199705-199907

*TEM,T=5.0,BRONZE

62179DAM, SIDE LOWER WINDOW

main62179-36010iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501

62211FGLASS, SIDE WINDOW, REAR LH

main62211-36010iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199301-199705

*TEM,T=5.0

main62211-36020iBB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL199505-199705

*TT,T=5.0,BLUE

main62211-36040iHZB50..RHD..EX..(ARL,GEN)199301-199705

*TEM,T=5.0,BRONZE

main62211-36080iBB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)199705-199907

*TT,T=5.0,GREEN

main62211-36090iHZB50..RHD..EX199907-200108

*TEM,T=5.0,BRONZE

62269FFILM, SIDE WINDOW FRAME

main62269-90K01×11iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-36010×3iBB4#,HZB50,RZB40,50..CBU199301-199510

main62279-36030×7iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

62376ACLIP, SIDE WINDOW, NO.2

main62376-36010-A0iBB4#,HZB50..DSL199301-199309

IVORY,TRIM4#

main62376-36010-A1iBB4#,5#,HZB50,RZB40,50..CBU199505-199907

IVORY,TRIM4#

main62376-36010-B0iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

MD.CHARCOAL,TRIM1#

62385BSEAL, SIDE WINDOW, NO.5

main62385-36020iBB50..CBU;HZB50,RZB40..EX199301-199907

62391DSTOPPER, SIDE WINDOW, NO.1 LH

main62391-36010×2iBB4#,50,HZB50..RHD..CBU199301-199907

62777JCAP, SIDE WINDOW CENTER SASH

main62777-36010iBB4#,HZB50..RHD..(DX,STD)..DSL199301-199511

main62777-36020iBB4#,HZB50..RHD..(DX,STD)..CBU199511-199902

main62777-36021iBB4#,HZB50..RHD..(DX,STD)199902-199907

main62777-36060iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200005-200108

62777PCAP, SIDE WINDOW CENTER SASH

main62777-36010iHZB50..RHD..EX199301-199511

main62777-36020iBB50,HZB50..RHD..EX199511-199902

main62777-36021iBB50,HZB50..RHD..EX199902-199907

main62777-36060iBB50,HZB50..RHD..EX200005-200108

62778CAP, SIDE WINDOW FRONT SASH

main62778-36010-A0iBB4#,HZB50..DSL199301-199309

IVORY,TRIM4#

main62778-36010-A1iBB4#,5#,HZB50,RZB40,50..CBU199505-199907

IVORY,TRIM4#

main62778-36010-B0iBB50,HZB50,RZB40,50..ARL,CHI200108-200211

MD.CHARCOAL,TRIM1#

62792CPACKING, SIDE WINDOW LOCK, LH

main62792-95A00×2iBB4#,HZB50..RHD..DSL199301-199505

62793CRETAINER, SIDE WINDOW LOCK, LH

main62793-95J00×2iBB4#,HZB50..RHD..DSL199301-199505

62910JLOCK ASSY, SIDE WINDOW, LH

main62910-95702×2iBB4#,HZB50..RHD..DSL199301-199505

68142DRUN, SIDE FRONT WINDOW, LH

main68142-36010iBB4#,HZB50..RHD..DSL199301-199511

main68142-36011iBB4#,50,HZB50..RHD..CBU199511-199902

main68142-36012iBB4#,50,HZB50..RHD..CBU199902-199907

main68142-36013iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200005-200108

68217APIN, SIDE WINDOW , NO.1

main68217-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

TYPE A:REFER TO ILLUSTRATION,YELLOW OR BLACK

main68217-36020iXZB50..WOC..CBU200408-200908

TYPE C:REFER TO ILLUSTRATION,GRAY

main68217-36030iXZB50..WOC..CBU200408-200908

TYPE B:REFER TO ILLUSTRATION,ORANGE

68218BBUSH, SIDE WINDOW

main68218-36010×3iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

9046805116

main90468-05116

9354023010

main93540-23010

9354024008

main93540-24008

9354024010

main93540-24010

9354054014

main93540-54014

26 parts on this diagram · 18 diagrams in section
