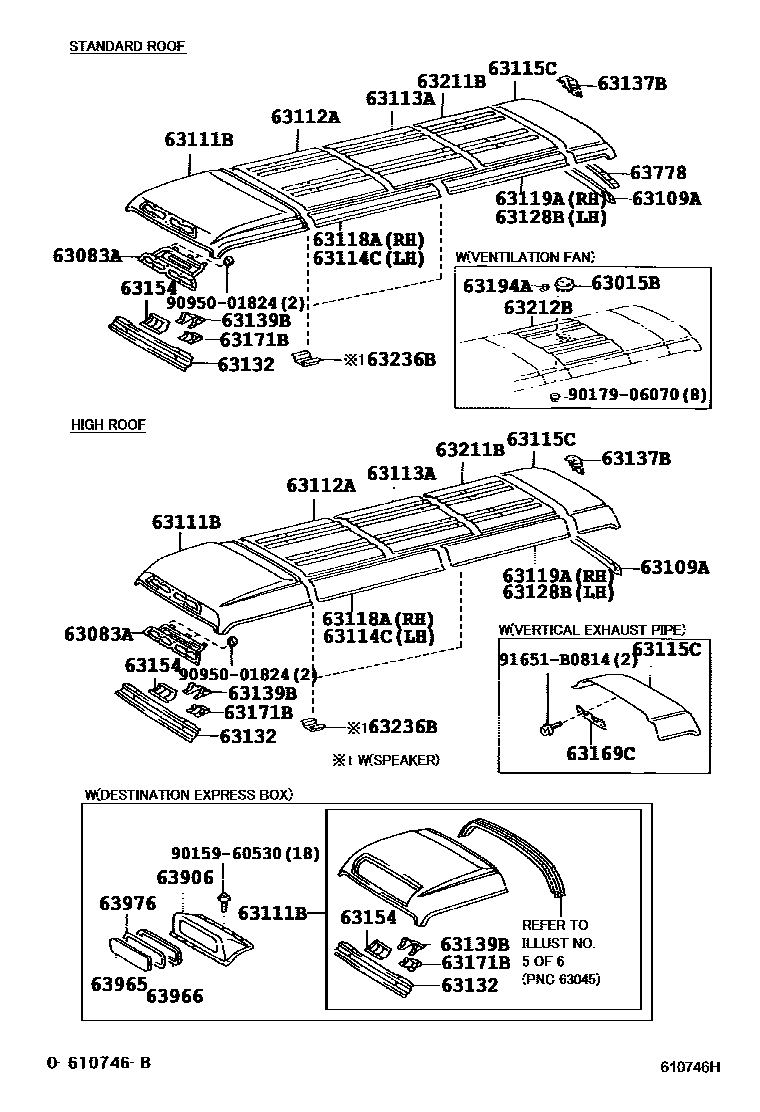

Toyota COASTER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF VENTILATOR 0003 1ROOF RACK 0004 1LUGGAGE DOOR 0005 1*SSBD OR *DSBD 0006 1 0007 1 0008 1 0009 1 0010 1S-LONG, ILLUST. NO. 1/6 & 5/6

63015BFLANGE SUB-ASSY, BOOST VENTILATOR HOLE

main63015-36010iHZB50..LHD..SRF..GEN199705-199907

63083APANEL SUB-ASSY, ROOF VENTILATOR

main63083-36010iHZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..HRF..CBU..5F199305-199907

main63083-36020iRZB40,50..SRF200408-200708

63109APANEL SUB-ASSY, BACK WINDOW, UPPER

main63109-36010iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-199705

main63109-36020iBB42..LHD..WOC..GEN199609-199703

EGYPT SPEC

main63109-36030iBB42..LHD..HRF200408-201108

63111BPANEL, ROOF, NO.1

main63014-36030iBB43,HZB50..(17S,22S)..GEN199907-200108

W(DESTINATION EXPRESS BOX)

main63111-36010iHZB50..30S..4FC;HZB50..HRF..5F..DSL;BB4#,RZB40,50..HRF..(ARL,GCC,GEN)199301-199702

main63111-36011iBB59;BB50,BZB50..21S200108-200408

main63111-36040iBB42,HZB50,RZB40,50..SRF199301-199702

main63111-36041iBB42,HZB50,TRB40,50,XZB40..SRF201501

63112APANEL, ROOF, NO.2

main63116-36040iBB50..DX,EX;BB50..STD..CBU;BB4#,58,59,BZB40,50,HZB50,RZB40,50199907-200408

63113APANEL, ROOF, NO.3

main63117-36070iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

63114CSUPPORT, ROOF PANEL, FRONT LH

main63114-36030iRZB40..SRF200408-200708

W(ROOF RACK)

main63114-36040iHZB50,RZB50..SRF199301-199907

W(ROOF RACK)

main63118-36010iBB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

main63118-36030iBB42,HZB50,RZB40,50..SRF199301-199907

63115CPANEL, ROOF, NO.4

main63115-36010iTRB40..HRF;HZB50,TRB50,XZB50..HRF..30S201501

main63115-36020iHZB50,RZB40..EX..(GCC,GEN)199301-199705

W/O(*RW) & W(*RUM)

main63115-36030iHZB50,RZB40..EX..(GCC,GEN)199301-199705

W(*RW)

main63115-36050iHZB50,RZB40..EX..(GCC,GEN)199301-199705

W(*RW & *RUM)

main63115-36060iBB42,HZB50,TRB40,50,XZB40..SRF201501

main63115-36070iBB42,HZB50,TRB40..SRF..GEN200408-201501

W(ROOF RACK)

main63115-36090iBB42,HZB50,RZB40,50..SRF199301-199705

W(*RUM)

main63115-36100iBB42,HZB50,RZB40,50..SRF199301-199705

W(ROOF RACK & *RUM)

main63115-36110iBB42,HZB50,RZB40,50..SRF199301-199705

W(*RW)

main63115-36120iBB42,HZB50,RZB40,50..SRF199301-199705

W(ROOF RACK & *RW)

main63115-36140iBB42,HZB50,RZB40,50..SRF199301-199705

W(*RW & *RUM)

main63115-36150iBB42,HZB50,RZB40,50..SRF199301-199705

W(ROOF RACK & *RW & *RUM)

main63115-36160iBB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,20S,22S)..GEN199907-200108

W(*DSBD)

main63115-36180iBB50..ARL200211-200408

W/O(REAR UNDER MIRROR)

main63115-36190iBB42,HZB50..SCO;HZB50..22S..4FC199301-199705

W(*SSBD & *RUM)

main63115-36200iBB42,HZB50,RZB40,50..SRF199301-199907

W(*DSBD)

main63115-36220iBB42..RHD..SRF199907-200408

W(*SSBD)

main63115-36240iBB42,HZB50..RHD..SRF199301-199705

W(*SSBD & *RUM)

main63115-36280iBB42,HZB50..RHD..HRF..STD..GEN..5F199705-199808

W(*SSBD & *HSL)

main63115-36290iBB58199907-200408

main63115-36300iBZB50..EX200211-200408

W(REAR UNDER MIRROR & HIGH MOUNT STOP LAMP)

main63115-36340iBB50..EX..IV200104-200108

W(SINGLE SWING BACK DOOR & REAR UNDER MIRROR)

main63115-36360iBB42..RHD..HRF;BB50,HZB50,TRB40,50..HRF..(26S,30S)200408-201501

W(HIGH MOUNT STOP LAMP & REAR UNDER MIRROR & REAR WIPER)

main63115-36370iXZB50..EX200408-200808

W(DOUBLE SWING BACK DOOR & HIGH MOUNT STOP LAMP)

main63115-36380iBB50..GEN..6F200408-200608

W(REAR WIPER)

main63115-36390iBB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W/O(*RW) & W(*RUM)

main63115-36410iRZB40..HRF..GCC200408-200602

W(REAR UNDER MIRROR & REAR WINDOW WIPER)

main63115-36430iBB42,HZB50..LHD..HRF..WOC;BB42,50,HZB50,RZB40,50..HRF..(17S,26S,30S)..WC..(GCC,GEN)..(DSL,EFI,TD)199907-200408

W(*HSL) & W/O(*RW)

main63115-36440iHZB50..RHD..EX199907-200108

W(*HSL & *RUM)

main63115-36450iBB42..RHD..HRF;BB50,HZB50,TRB40,50..HRF..(26S,30S)200408-201501

W(REAR WIPER & HIGH MOUNT STOP LAMP)

main63115-36470iBB42,HZB50,TRB40,50,XZB40..SRF201501

W(REAR UNDER MIRROR)

main63115-36480iRZB40,50..SRF200408-200708

W(REAR UNDER MIRROR & ROOF RACK)

main63115-36490iBB42,HZB50,RZB40,50..SRF199705-199907

W(*RW)

main63115-36500iBB42,HZB50,TRB40,50..SRF..GCC200408-201108

W(REAR WIPER & ROOF RACK)

main63115-36520iHZB50..LHD..SRF;BB42,RZB40..SRF..GEN;BB42,RZB40,50..SRF..WC..GCC199907-200408

W(*RW & *RUM)

main63115-36530iBB42,HZB50,RZB40,50..SRF199705-199907

W(ROOF RACK & *RW & *RUM)

main63115-36560iHZB50..RHD..SRF199907-200108

W(*SSBD & *RUM)

main63115-36570iHZB50..LHD..SRF;BB42,RZB40..SRF..GEN;BB42,RZB40,50..SRF..WC..GCC199907-200408

W(*HSL)

main63115-36580iRZB40,50..SRF200408-200708

W(HIGH MOUNT STOP LAMP & ROOF RACK)

main63115-36600iBB42,HZB50,TRB40,50,XZB40..SRF201501

W(REAR UNDER MIRROR & HIGH MOUNT STOP LAMP)

main63115-36610iRZB40,50..SRF200408-200708

W(HIGH MOUNT STOP LAMP & REAR UNDER MIRROR & ROOF RACK)

main63115-36620iRZB40..SRF..GEN;RZB40,50..SRF..WC..GCC199907-200408

W(*RW & *HSL)

main63115-36630iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..SRF199907-200408

W(ROOF RACK & *RW & *HSL)

main63115-36650iRZB40..SRF..GEN;RZB40,50..SRF..WC..GCC199907-200408

W(*RW & *RUM & *HSL)

main63115-36660iRZB40..SRF..GEN;RZB40,50..SRF..WC..GCC199907-200408

W(ROOF RACK & *HSL & *RW & *RUM)

main63115-36670iBB42..RHD..WOC200408-201108

W(DOUBLE SWING BACK DOOR & HIGH MOUNT STOP LAMP)

main63115-36690iBB42..RHD..SRF199907-200408

W(*SSBD & *HSL)

main63115-36710iBB42,HZB50..RHD..SRF199705-199907

W(*SSBD & *RUM & *HSL)

main63115-36890iBB58200408-200608

W(DOUBLE SWING BACK DOOR & HIGH MOUNT STOP LAMP)

main63115-3B020iBB50..ARL200408-200608

W(VERTICAL EXHAUST PIPE)

63118ASUPPORT, ROOF PANEL, FRONT RH

main63118-36010iBZB40,50,HZB50,TRB40,50,XZB40,5#..HRF201501

main63118-36030iBB42,HZB50,RZB40,50..SRF199301-199907

main63118-36050iBB42,TRB40..GCC200408-201108

W(ROOF RACK)

main63118-36060iHZB50..RHD..SRF199907-200108

W(ROOF RACK)

63119ASUPPORT, ROOF PANEL, REAR RH

main63119-36010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200408-200608

main63119-36030iBB42,HZB50,TRB40,50..SRF200408-201501

main63119-36060iBB42,HZB50,TRB40,50..SRF..GCC200408-201108

W(ROOF RACK)

63128BSUPPORT, ROOF PANEL, REAR LH

main63119-36010iBB4#,5#,HZB50,RZB40,50..HRF..CBU199301-199907

main63119-36030iBB42,HZB50,RZB40,50..SRF199301-199907

main63128-36020iBB42,HZB50,RZB40,50..SRF199301-199907

W(ROOF RACK)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-36010iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

63137BRETAINER, OUTER UNDER REAR VIEW MIRROR

main63137-36010iXZB50..WOC..CBU200408-200908

main63137-36020iBB42,HZB50,TRB40,50,XZB40..SRF201501

63139BBRACKET, WINDSHIELD HEADER CLOCK SUPPORT

main63139-36010iBB42,RZB40;HZB50..WOC..GEN;BB40,43,5#,HZB50,RZB50..WC..CBU199301-199907

63154REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER

main63154-36010iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

63169CRETAINER, ROOF REINFORCEMENT, NO.2

main63119-36110iBB50..ARL200211-200408

W(VERTICAL EXHAUST PIPE)

63171BBRACKET, INNER MIRROR BASE

main63171-36010iRZB40..HRF..GCC200408-200602

63194ABRACKET, BOOST VENTIRATOR COVER, NO.1

main63194-90B00×3iHZB50..LHD..SRF..GEN199705-199907

63211BPANEL, REMOVABLE ROOF

main63211-36010iBB50..EX..GEN;BB50..CBU..6F;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199907-200108

main63211-36030iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN)199907-200408

63212BPANEL, ROOF WIND DEFLECTOR

main63212-36010iHZB50..LHD..SRF..GEN199705-199907

63236BBRACKET, ROOM SPEAKER

main63236-36010×4iBB58,59;BB50,BZB50..19S,20S,21S200408-200608

W(4-SPEAKER)

63778RETAINER, ROOF PANEL, NO.3

main63778-36010iRZB40,50..SRF200408-200708

63906COVER SUB-ASSY, ROOF GUIDE INDICATION

main63906-36010-A0iBB42..SCO199301-199505

WHITE,053

main63906-36010-A1iBB42,HZB50..RHD..(17S,22S)..(GEN,SCO)199505-199705

WHITE,045

main63906-36010-A2iBZB40,XZB40..17S201501-201612

WHITE,058

main63906-36010-K0iBB50,BZB40,50..17S199907-200408

CREAM,9A8

63965GLASS, ROOF GUIDE INDICATION

main63965-36010iBB42..SCO;HZB50..WC..GEN..4FC199301-199705

main63965-36020iBB42,43,HZB50..RHD..(17S,22S)..(GEN,SCO)199705-199907

63966WEATHERSTRIP, ROOF GUIDE INDICATION, OUTER

main63966-36010iBB42,43..17S;HZB50..WC..GEN..4FC199301-199907

63976WEATHERSTRIP, ROOF GUIDE INDICATION, INNER

main63976-36010iBB42,43..17S;HZB50..WC..GEN..4FC199301-199907

9015960530

main90159-60530

9017906070

main90179-06070

9095001824

main90950-01824

91651B0814

main91651-B0814

30 parts on this diagram · 10 diagrams in section
