Toyota COASTER — REFLEX REFLECTOR

81580REFLECTOR ASSY, REFLEX SIDE, RH

main81580-36010×3i199907-200211

main81580-36011×3i200408-200608

81581BLENS AND BODY, REFLEX REFLECTOR

main81581-36010×6i199301-199907

main81581-36011×6i200408-200608

81584BGASKET,REFLEX REFLEC

main81584-36020×6i199907-200211

81590REFLECTOR ASSY, REFLEX SIDE, LH

main81580-36010×3i199907-200211

main81580-36011×3i200408-201501

main81580-36030i201209-201501

CENTER

81591LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81581-36030i201209-201501

81594GASKET, REFLEX REFLECTOR BODY, LH

main81584-36030i201209-201501

81910REFLECTOR ASSY, REFLEX, RH

main81910-60100i201209-201501

81920REFLECTOR ASSY, REFLEX, LH

main81920-60040i201209-201501

9007599097

main90075-99097

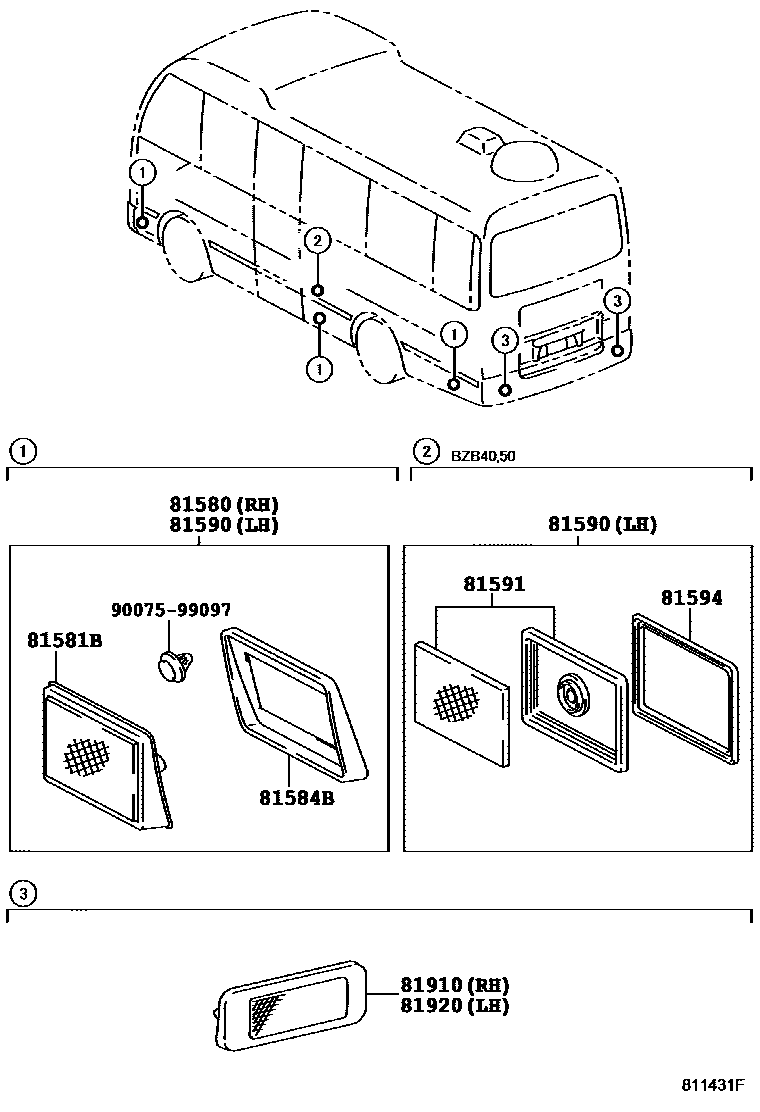

9 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota COASTER

This section contains 9 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota COASTER. Key components include: REFLECTOR ASSY, REFLEX SIDE, RH, LENS AND BODY, REFLEX REFLECTOR, GASKET,REFLEX REFLEC, REFLECTOR ASSY, REFLEX SIDE, LH, LENS AND BODY, REFLEX SIDE REFLECTOR, LH.
